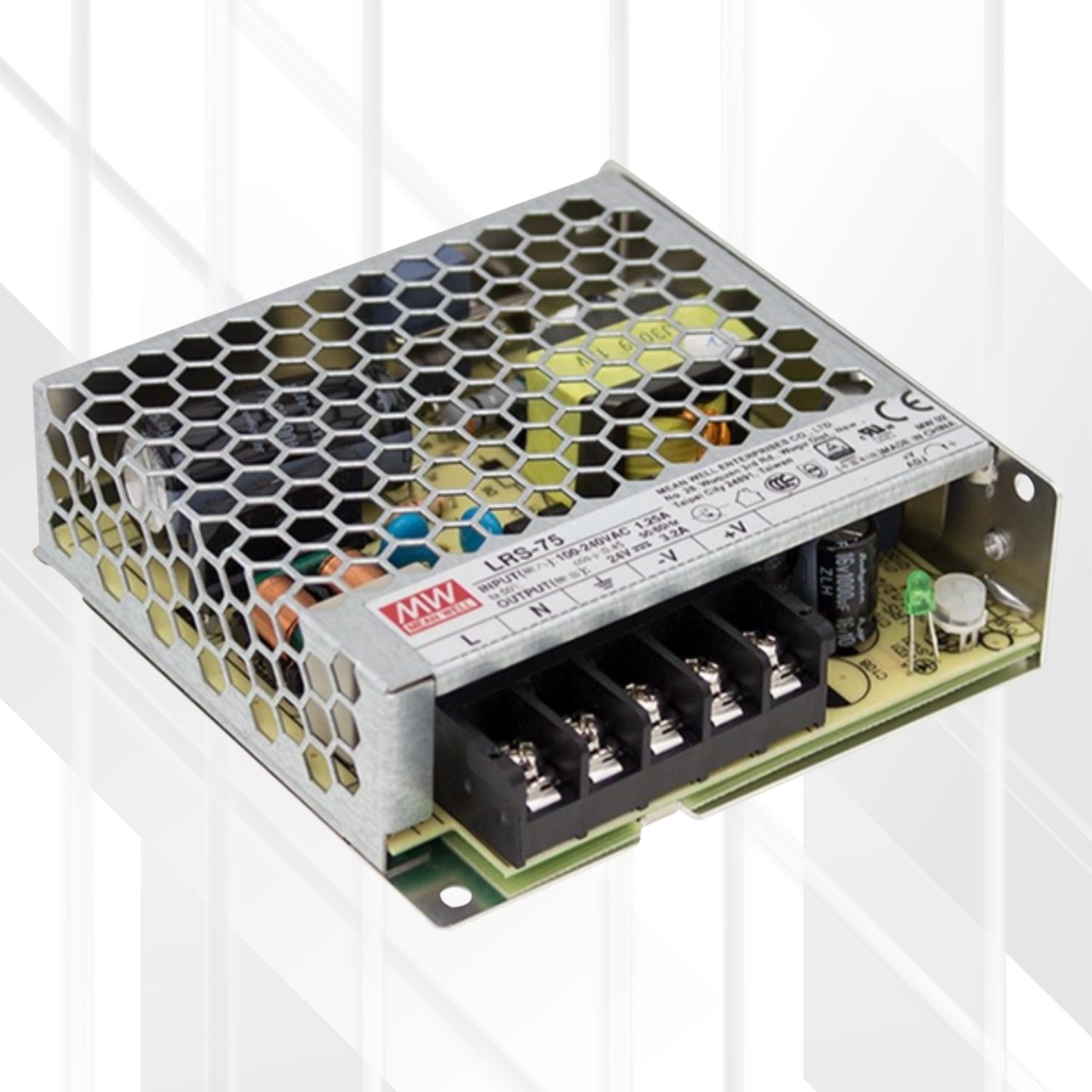

Universal AC Input: Operates on full range 85-264VAC (also supports 120-373VDC).
Output Voltage Options: Available in 5V, 12V, 15V, and 24V models.
High Efficiency: Achieves up to 90% efficiency, minimizing heat generation.
Low No-Load Power Consumption: Consumes less than 0.3W, aiding energy conservation.
Compact Design: Miniature size and 1U low profile (30mm height) for easy integration.
Surge Immunity: Withstands 300VAC surge input for 5 seconds.
Wide Operating Temperature: Functions effectively from -30°C to +70°C (refer to derating curve).
Cooling: Utilizes free air convection cooling (fanless design).
Built-in Protections: Short circuit, Overload (Hiccup mode, auto-recovery), Over voltage (Shut down, re-power to recover).
High Altitude Operation: Capable of operating up to 5000 meters (derating required above 2000m).
Vibration Resistance: Withstands 5G vibration testing.
Reliability: Engineered for long life and high reliability.
LED Indicator: Provides visual confirmation of power status.
Household Appliance Ready: Complies with IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16.
Safety Certified: Meets TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1, CCC GB4943 standards.
Tested: 100% full load burn-in tested.
Warranty: Backed by a 3-year warranty.
Flexible Application: Universal input and multiple output options suit diverse global applications.
Energy Efficient: Reduces energy consumption and operating costs due to high efficiency and low standby power.
Space Saving Installation: Compact size allows for use in space-limited enclosures.
Enhanced Reliability: Protection against input surges and vibration ensures dependable operation in challenging environments.
Quiet Operation: Fanless design eliminates noise and a common failure point.
System Safety: Comprehensive protections safeguard both the power supply and the connected load.
Streamlined Compliance: Adherence to major safety and household standards simplifies end-product certification.
Cost-Effective Solution: Offers a strong price-to-performance ratio for various applications.
Easy Monitoring: LED indicator allows for quick power status checks.
Dependable Service: 3-year warranty offers assurance of quality and longevity.
Specification | LRS-75-5 | LRS-75-12 | LRS-75-15 | LRS-75-24 | Units / Notes |
---|---|---|---|---|---|
OUTPUT | |||||
DC Voltage | 5 | 12 | 15 | 24 | V |
Rated Current | 14 | 6 | 5 | 3.2 | A |
Current Range | 0 ~ 14 | 0 ~ 6 | 0 ~ 5 | 0 ~ 3.2 | A |
Rated Power | 70 | 72 | 75 | 76.8 | W |
Ripple & Noise (max.) | 100 | 120 | 120 | 150 | mVp-p (Note 2) |
Voltage Adj. Range | 4.5 ~ 5.5 | 10.2 ~ 13.8 | 13.5 ~ 18 | 21.6 ~ 28.8 | V |
Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | % (Note 3) |
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | % (Note 4) |
Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | % (Note 5) |
Setup, Rise Time | 500ms, 30ms | 500ms, 30ms | 500ms, 30ms | 500ms, 30ms | /230VAC |
500ms, 30ms | 500ms, 30ms | 500ms, 30ms | 500ms, 30ms | /115VAC | |
Hold Up Time (Typ.) | 60 | 60 | 60 | 60 | ms/230VAC |
12 | 12 | 12 | 12 | ms/115VAC | |
INPUT | |||||
Voltage Range | 85 ~ 264 | 85 ~ 264 | 85 ~ 264 | 85 ~ 264 | VAC (Also 120 ~ 373 VDC) |
Frequency Range | 47 ~ 63 | 47 ~ 63 | 47 ~ 63 | 47 ~ 63 | Hz |
Efficiency (Typ.) | 86.5% | 89% | 89% | 90% | % |
AC Current (Typ.) | 1.4A/115V | 1.4A/115V | 1.4A/115V | 1.4A/115V | A / 0.85A/230VAC |
Inrush Current (Typ.) | 50A | 50A | 50A | 50A | A (Cold Start 230VAC) |
Leakage Current | <0.75mA / 240VAC | <0.75mA / 240VAC | <0.75mA / 240VAC | <0.75mA / 240VAC | mA |
PROTECTION | |||||
Over Load | 110 ~ 150% Rated Output Power. Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||
Over Voltage | 5.75 ~ 6.75 | 13.8 ~ 16.2 | 18.75 ~ 21.75 | 28.8 ~ 33.6 | V (Shut down o/p, re-power) |
ENVIRONMENT | |||||
Working Temp. | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | °C (Refer to Derating Curve) |
Working Humidity | 20 ~ 90% RH non-condensing | ||||
Storage Temp., Humidity | -40 ~ +85°C, 10 ~ 95% RH | ||||
Temp. Coefficient | ±0.03%/°C (0~50°C) | ||||
Vibration | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
SAFETY & EMC | |||||
Safety Standards | UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943 approved | ||||
Withstand Voltage | I/P-O/P: 3.75KVAC; I/P-FG: 2KVAC; O/P-FG: 1.25KVAC | ||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25°C / 70% RH | ||||
EMC Emission | Compliance to EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2,-3 | ||||
EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A | ||||
OTHERS | |||||
MTBF | 681.2K hrs min. | 681.2K hrs min. | 681.2K hrs min. | 681.2K hrs min. | MIL-HDBK-217F (25°C) |
Dimension (L*W*H) | 99 * 97 * 30 | 99 * 97 * 30 | 99 * 97 * 30 | 99 * 97 * 30 | mm |
Packing | 0.3Kg; 45pcs/ 14.5Kg/ 0.77CUFT |
Industrial Automation Systems: Powering PLCs, sensors, actuators, HMIs, and control panels.
Industrial Control: Providing stable DC power for various control system components.
Mechanical & Electrical Equipment: Suitable as an embedded power source for diverse machinery.
Electronic Instruments & Apparatus: Powering test and measurement equipment, lab instruments.
Household Appliances: Approved for integration into compliant household appliances.
LED Display & Signage: Driving compatible LED modules and signs.
Security Systems: Powering larger security camera setups or access control systems.
Model Selection: Ensure you choose the LRS-75 model with the output voltage (5V, 12V, 15V, or 24V) required by your application.
Load Considerations: Account for the maximum power draw of your load, ensuring it doesn't exceed the rated power of the selected LRS-75 model (70-76.8W depending on voltage).
Derating: Refer to the datasheet's derating curve. Reduce the maximum load if operating at high ambient temperatures (above 50°C) or low AC input voltages (<100-120VAC).
Altitude: Derate the output power by 5°C per 1000m for operation above 2000m (6500ft).
Installation Clearance: Allow sufficient space around the unit for effective free air convection cooling. Do not obstruct the ventilation holes.
Grounding (FG): Connect the frame ground terminal securely to the system's earth ground for safety and optimal EMC performance.
Wiring: Use appropriate wire gauges for AC input (L, N) and DC output (+V, -V) based on the current ratings. Double-check DC output polarity.
System EMC: The LRS-75 is designed as a component. The final equipment incorporating it must be re-verified for EMC compliance. Consult Mean Well's EMI testing guide for assistance.
