Enclosed 200W Power Supply Input 220V

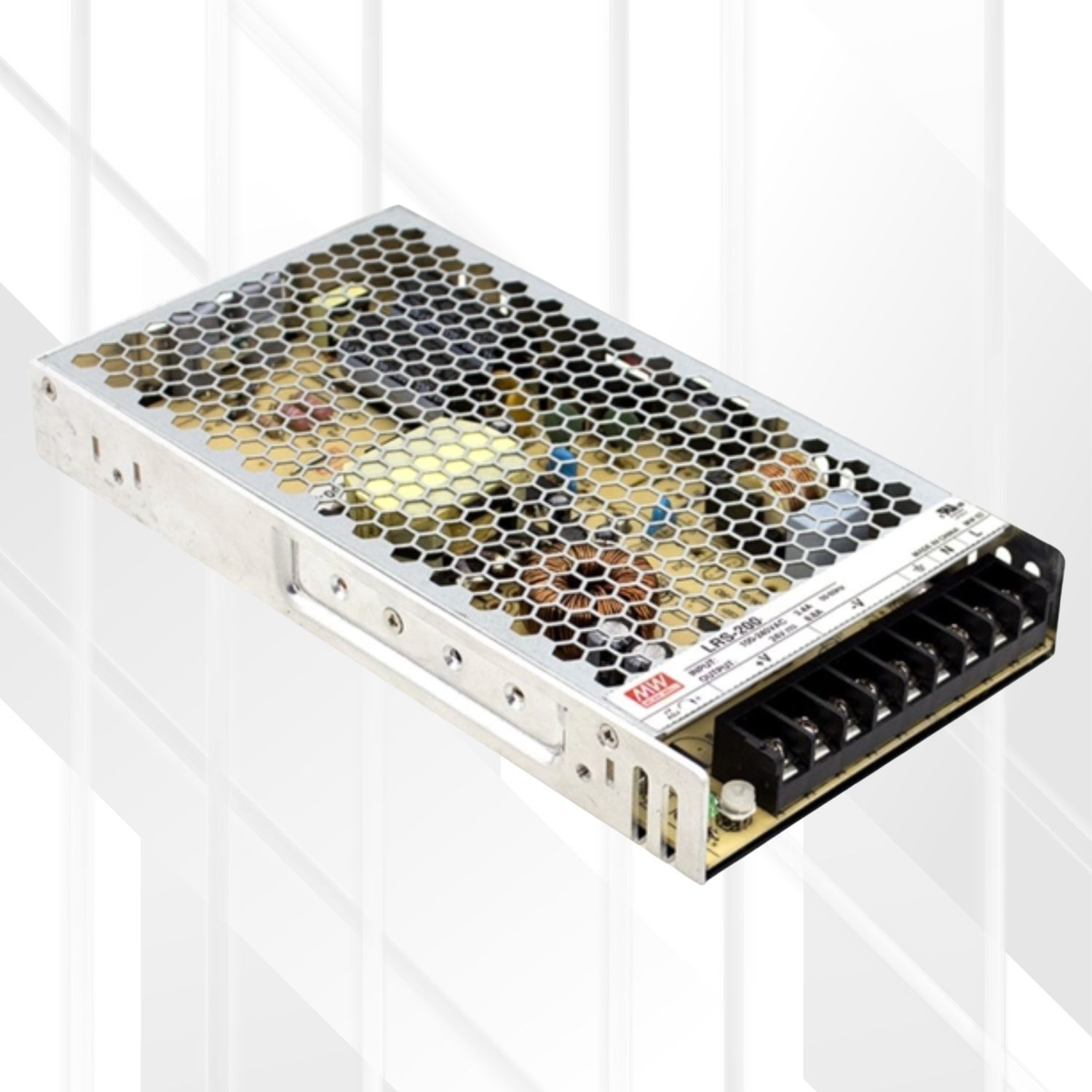

• The Mean Well LRS-200 series offers a powerful 200W single-output enclosed power supply solution within a slim 1U low-profile (30mm) design.
• Featuring a switch-selectable AC input range (115VAC or 230VAC), this series provides common DC output voltages including 5V, 12V, 15V, 24V, and 48V.
• With high efficiency reaching up to 90%, low no-load power consumption (<0.75W), and effective heat dissipation via its metallic mesh case, the LRS-200 operates efficiently using free air convection from -25°C to +70°C.
• Equipped with comprehensive protection functions, 5G anti-vibration capability, and compliance with international safety standards like UL 60950-1, it stands as a high price-to-performance choice for demanding industrial automation, control systems, and electronic equipment applications.

Features

• Selectable AC Input: AC input range (115VAC / 230VAC) selectable via switch.

• Output Voltage Options: Available in 5V, 12V, 15V, 24V, and 48V models.

• High Power Density: Delivers 200W in a compact 1U low-profile package.

• High Efficiency: Up to 90% efficiency, depending on the model.

• Low Standby Power: No-load power consumption is less than 0.75W.

• Surge Withstand: Tolerates 300VAC surge input for 5 seconds.

• Wide Operating Temperature: Functions from -25°C up to +70°C (refer to derating curve).

• Convection Cooling: Cooled effectively by free air convection (no fan).

• Comprehensive Protections: Includes Short circuit, Overload (Hiccup mode, auto-recovery), Over voltage (Shut down, re-power), Over temperature.

• Vibration Resistant: Built to withstand 5G vibration test.

• Reliable Operation: Designed for high reliability and long operational life.

• LED Indicator: Onboard LED confirms power-on status.

• Safety Compliance: Meets UL 60950-1 safety standards.

• Quality Assurance: 100% full load burn-in tested.

• Warranty: Covered by a 3-year manufacturer warranty.

Benefits

• Optimized Input: Switch-selectable input allows configuration for specific mains voltage.

• Powerful & Compact: Provides significant power (200W) in a space-saving 1U form factor.

• Energy Efficient: High efficiency reduces wasted heat and lowers electricity consumption.

• Meets Energy Standards: Low no-load power draw helps end systems meet global energy requirements.

• Enhanced Durability: Withstands input surges and vibration common in industrial settings.

• Silent Operation: Fanless design ensures quiet operation and increased reliability without moving parts.

• System Protection: Integrated protections safeguard the power supply and connected devices against common faults.

• Simplified Integration: Compliance with key safety standards aids in system-level certification.

• Cost-Effective Performance: Offers a high power output and reliability at a competitive price point.

• User-Friendly: LED indicator provides an immediate visual status check.

Technical Specifications

Ideal Use

• Industrial Automation: Powering larger controllers, multiple actuators, drives, and medium-sized machinery.

• Industrial Control Systems: Providing substantial power for complex control cabinets and systems.

• Mechanical & Electrical Equipment: Suitable as a primary power source for various equipment requiring up to 200W.

• Electronic Test & Measurement: Powering benches, instrumentation racks, and more demanding apparatus.

• LED Lighting: Driving larger scale constant voltage LED lighting installations.

• Communication Systems: Suitable for powering network hubs, routers, and small base stations.

Tips

• Input Voltage Selection: Crucial: Always verify the input voltage selector switch (115V/230V) matches your mains supply before applying power. Failure to do so will damage the unit.

• Model Selection: Choose the LRS-200 model (5V, 12V, 15V, 24V, 48V) appropriate for your load's voltage requirements.

• Power Budgeting: Ensure the total power draw of your connected load stays within the power supply's rated capacity (200W to 211.2W). Consider the peak load capability (150% for 1 second, 12-48V models) if applicable, but do not rely on it for continuous operation.

• Thermal Management: Observe the derating curve. Reduce the maximum load if operating in high ambient temperatures (typically >50°C). Ensure adequate space for airflow.

• Altitude: Derate output power by 5°C per 1000m for operation above 2000m (6500ft).

• Installation: Maintain proper clearance for cooling via free air convection. Do not obstruct the mesh case.

• Grounding: Connect the FG (Frame Ground) terminal reliably to safety earth.

• Wiring: Use appropriately sized wires for AC input and DC output based on the current ratings. Double-check DC output polarity.

• EMC: While the LRS-200 is designed as a component, the final system incorporating it must be re-evaluated for overall EMC compliance.
