Enclosed 150W Power Supply Input 220V

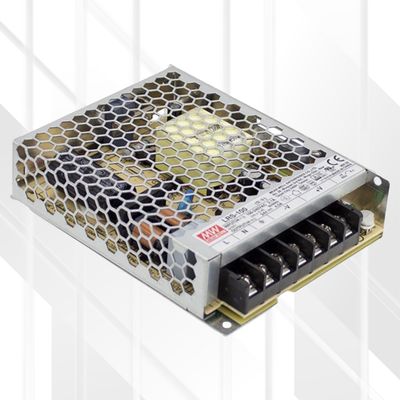

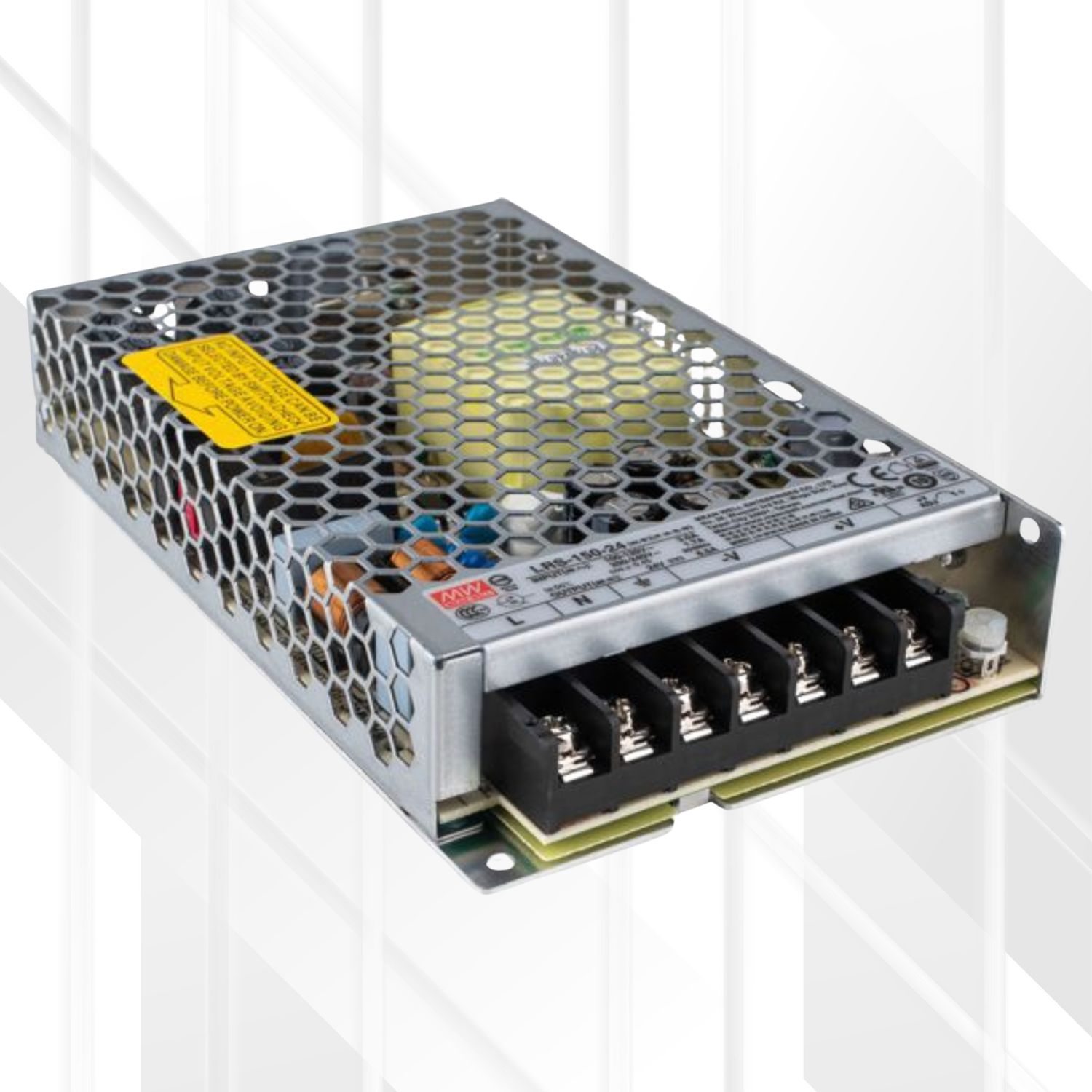

• The Mean Well LRS-150 series offers a high-performance 150W single-output enclosed power supply in a slim, 1U low-profile (30mm) design.
• Featuring a switch-selectable AC input (115VAC or 230VAC), this series provides robust output voltages of 12V, 15V, 24V, and 48V.
• With high efficiency up to 90%, low no-load power consumption (<0.5W), and enhanced heat dissipation via its metallic mesh case, the LRS-150 operates reliably from -30°C to +70°C using free air convection.
• Complete with comprehensive protections and compliance with international safety standards (including household appliance regulations), it's a cost-effective and reliable power solution for industrial automation, control systems, and various electronic equipment.

Features

• Selectable AC Input Range: Input voltage (115VAC / 230VAC) selectable by switch.

• Output Voltage Options: Available in 12V, 15V, 24V, and 48V models.

• High Efficiency: Achieves up to 90% efficiency.

• Low No-Load Power Draw: Consumes less than 0.5W when idle.

• Compact 1U Design: Miniature size (159x97x30mm) and low profile for easy integration.

• Surge Withstand: Tolerates 300VAC surge input for 5 seconds.

• Wide Operating Temperature: Functions reliably from -30°C to +70°C (see derating curve).

• Fanless Cooling: Cooled by free air convection.

• Multiple Protections: Short circuit, Overload (Hiccup mode, auto-recovery), Over voltage (Shut down, re-power to recover), Over temperature.

• High Altitude Capable: Operates up to 5000 meters (derating applies above 2000m).

• Vibration Resistant: Withstands 5G vibration testing.

• Reliability Focused: Designed for high efficiency, long life, and dependability.

• LED Power Indicator: Visual confirmation of power-on status.

• Household Appliance Compliance: Meets IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 standards.

• Safety Certified: Complies with TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1, CCC GB4943.

• Tested: 100% full load burn-in tested.

• Warranty: 3-year warranty.

Benefits

• Targeted Input: Selectable input allows optimization for specific regional voltages.

• Efficient Operation: High efficiency reduces energy consumption and heat generation, lowering operating costs.

• Energy Conscious: Low standby power consumption helps meet global energy requirements.

• Space-Efficient Integration: Compact size and 1U profile fit well in space-limited applications.

• Enhanced Durability: Surge withstand capability and vibration resistance ensure longevity in demanding environments.

• Silent & Reliable: Fanless design ensures quiet operation and removes a potential failure point.

• Comprehensive Safety: Multiple protection features safeguard the power supply and connected load from common electrical faults.

• Simplified Approvals: Compliance with major safety and household standards facilitates end-product certification processes.

• Cost-Effective Power: Delivers 150W of reliable power with a strong price-to-performance value.

• Easy Status Verification: LED indicator provides immediate visual feedback on power status.

Technical Specifications

Ideal Use

• Industrial Automation: Powering higher-demand controllers, actuators, sensors, and machinery.

• Industrial Control Panels: Providing reliable DC power for components within control cabinets.

• Mechanical & Electrical Equipment: Suitable for embedding in equipment requiring 150W power.

• Electronic Instruments & Apparatus: Power source for more demanding test and measurement setups.

• LED Lighting Systems: Driving larger constant voltage LED installations.

• Household Appliances: Integration into certified appliances needing a robust DC supply.

• Communication Systems: Powering base station equipment or network devices.

Tips

• Input Selection: Before applying power, ensure the input voltage selection switch (115V/230V) is set correctly for your local mains voltage. Incorrect setting can damage the unit.

• Model Choice: Select the specific LRS-150 model (12V, 15V, 24V, or 48V) that matches your load's voltage requirement.

• Power Capacity: Verify that your total load does not exceed the 150W-158.4W rating of the power supply.

• Derating: Consult the derating curve in the datasheet. Output power may need to be reduced at high ambient temperatures (typically above 50°C).

• Altitude: For operation above 2000m (6500ft), apply the 5°C/1000m derating factor.

• Cooling: Ensure adequate ventilation and free space around the unit for proper air convection cooling. Keep ventilation holes clear.

• Grounding: Connect the FG (Frame Ground) terminal properly to safety earth.

• Wiring: Use appropriate wire gauges for AC input and DC output terminals based on current ratings. Ensure correct DC output polarity.

• System EMC: The final equipment integrating the LRS-150 must be re-tested for overall EMC compliance.
