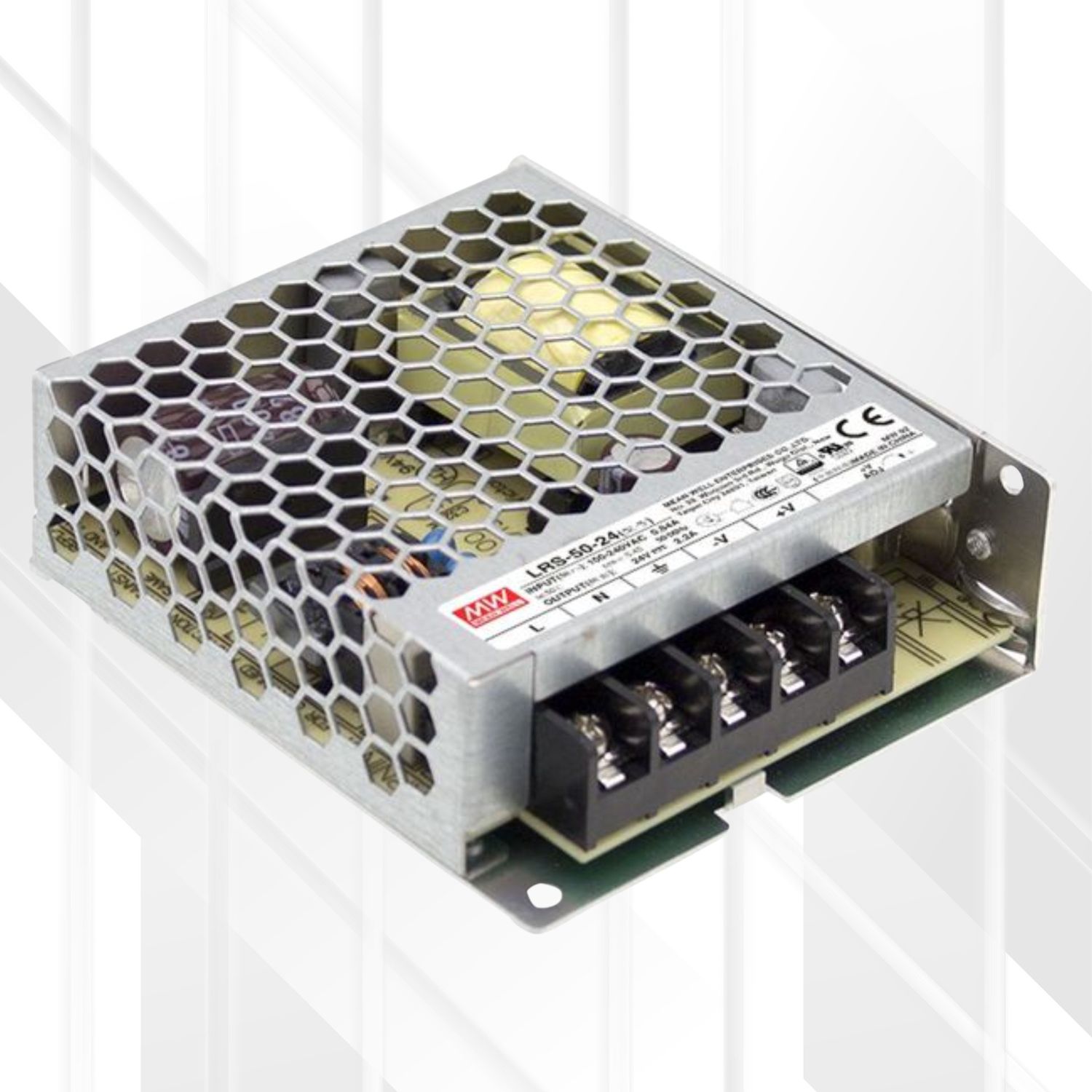

Universal AC Input: Full range 85-264VAC input compatibility (also supports 120-373VDC).
High Efficiency: Up to 90% efficiency, reducing energy waste.
Ultra-Low No-Load Power Consumption: Consumes less than 0.2W when idle.
Compact 1U Low Profile: Miniature size (99x82x30mm) fits easily into space-constrained applications.
Surge Protection: Withstands 300VAC surge input for 5 seconds.
Wide Operating Temperature Range: Operates from -30°C up to +70°C (refer to derating curve).
Convection Cooled: Cooling achieved through free air convection (no fan required).
Comprehensive Protections: Includes Short circuit, Overload (Hiccup mode, auto-recovery), and Over voltage (Shut down o/p voltage, re-power on to recover).
High Altitude Operation: Suitable for operation up to 5000 meters (requires derating above 2000m).
Vibration Resistant: Tested to withstand 5G vibration.
Reliable Design: Engineered for long life and high reliability.
LED Power Indicator: Provides visual confirmation that the unit is powered on.
Household Appliance Compliance: Meets IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 standards.
Safety Certifications: Compliant with TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1, CCC GB4943.
Quality Tested: 100% full load burn-in tested.
Warranty: Includes a 3-year manufacturer warranty.
Worldwide Use: Universal input voltage allows for deployment across different regions.
Energy Savings: High operational efficiency and minimal standby power draw reduce electricity costs.
Space Efficiency: The compact and low-profile design enables integration into smaller enclosures and 1U rack systems.
Increased Robustness: Tolerance for input surges and vibration enhances reliability in industrial or unstable environments.
Silent Operation: Fanless design ensures quiet operation and eliminates a potential point of mechanical failure.
Enhanced Safety: Built-in protections prevent damage to the power supply and connected equipment during fault conditions.
Simplified Certification: Compliance with key international safety and household standards can ease the approval process for final products.
Versatile Application: Suitable for a broad range of industrial, commercial, and even household uses.
Easy Status Check: The LED indicator allows for quick verification of power status.
Long-Term Value: High reliability and a 3-year warranty provide confidence and long-term operational value.
Specification | LRS-50-3.3 | LRS-50-5 | LRS-50-12 | LRS-50-15 | LRS-50-24 | LRS-50-48 | Units / Notes |
---|---|---|---|---|---|---|---|
OUTPUT | |||||||
DC Voltage | 3.3 | 5 | 12 | 15 | 24 | 48 | V |
Rated Current | 10 | 10 | 4.2 | 3.4 | 2.2 | 1.1 | A |
Current Range | 0 ~ 10 | 0 ~ 10 | 0 ~ 4.2 | 0 ~ 3.4 | 0 ~ 2.2 | 0 ~ 1.1 | A |
Rated Power | 33 | 50 | 50.4 | 51 | 52.8 | 52.8 | W |
Ripple & Noise (max.) | 80 | 80 | 120 | 120 | 150 | 200 | mVp-p (Note 2) |
Voltage Adj. Range | 2.97 ~ 3.6 | 4.5 ~ 5.5 | 10.2 ~ 13.8 | 13.5 ~ 18 | 21.6 ~ 28.8 | 43.2 ~ 52.8 | V |
Voltage Tolerance | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | % (Note 3) |
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | % (Note 4) |
Load Regulation | ±2.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | % (Note 5) |
Setup, Rise Time | 1000ms, 30ms | 1000ms, 30ms | 1000ms, 30ms | 1000ms, 30ms | 1000ms, 30ms | 1000ms, 30ms | /230VAC |
2000ms, 30ms | 2000ms, 30ms | 2000ms, 30ms | 2000ms, 30ms | 2000ms, 30ms | 2000ms, 30ms | /115VAC | |
Hold Up Time (Typ.) | 30 | 30 | 30 | 30 | 30 | 30 | ms/230VAC |
12 | 12 | 12 | 12 | 12 | 12 | ms/115VAC | |
INPUT | |||||||
Voltage Range | 85 ~ 264 | 85 ~ 264 | 85 ~ 264 | 85 ~ 264 | 85 ~ 264 | 85 ~ 264 | VAC (Also 120 ~ 373 VDC) |
Frequency Range | 47 ~ 63 | 47 ~ 63 | 47 ~ 63 | 47 ~ 63 | 47 ~ 63 | 47 ~ 63 | Hz |
Efficiency (Typ.) | 80% | 83% | 86% | 88% | 88% | 90% | % |
AC Current (Typ.) | 0.95A/115V | 0.95A/115V | 0.95A/115V | 0.95A/115V | 0.95A/115V | 0.95A/115V | A / 0.56A/230VAC |
Inrush Current (Typ.) | 45A | 45A | 45A | 45A | 45A | 45A | A (Cold Start 230VAC) |
Leakage Current | <0.75mA / 240VAC | <0.75mA / 240VAC | <0.75mA / 240VAC | <0.75mA / 240VAC | <0.75mA / 240VAC | <0.75mA / 240VAC | mA |
PROTECTION | |||||||
Over Load | 110 ~ 150% Rated Output Power. Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||
Over Voltage | 3.8 ~ 4.45 | 5.9 ~ 7.3 | 13.8 ~ 16.2 | 18.75 ~ 21.75 | 28.8 ~ 33.6 | 55.2 ~ 64.8 | V (Shut down o/p, re-power) |
ENVIRONMENT | |||||||
Working Temp. | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | °C (Refer to Derating Curve) |
Working Humidity | 20 ~ 90% RH non-condensing | ||||||
Storage Temp., Humidity | -40 ~ +85°C, 10 ~ 95% RH | ||||||
Temp. Coefficient | ±0.03%/°C (0~50°C) | ||||||
Vibration | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
SAFETY & EMC | |||||||
Safety Standards | UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943 approved | ||||||
Withstand Voltage | I/P-O/P: 3.75KVAC; I/P-FG: 2KVAC; O/P-FG: 1.25KVAC | ||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25°C / 70% RH | ||||||
EMC Emission | Compliance to EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2,-3 | ||||||
EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A | ||||||
OTHERS | |||||||
MTBF | 645K hrs min. | 645K hrs min. | 645K hrs min. | 645K hrs min. | 645K hrs min. | 645K hrs min. | MIL-HDBK-217F (25°C) |
Dimension (L*W*H) | 99 * 82 * 30 | 99 * 82 * 30 | 99 * 82 * 30 | 99 * 82 * 30 | 99 * 82 * 30 | 99 * 82 * 30 | mm |
Packing | 0.23Kg; 60pcs/14.8Kg/0.88CUFT |
Industrial Automation Machinery: Providing power for controllers, sensors, HMIs, and small motors.
Industrial Control Systems: Reliable power source for control cabinets and instrumentation.
Mechanical & Electrical Equipment: Integrated power for various devices and systems.
Electronic Instruments & Apparatus: Powering test equipment, measurement devices, and laboratory gear.
Household Appliances: Suitable for certified incorporation into household appliances requiring a SELV DC source.
LED Lighting Systems: Driving compatible constant voltage LED lighting installations.
Security and Access Control: Powering cameras, sensors, and control boards (ensure power budget).
Model Choice: Select the specific LRS-50 model (e.g., LRS-50-5 for 5V, LRS-50-24 for 24V) that precisely matches the voltage requirements of your load.
Derating: Always consult the derating curve in the datasheet. Output power capacity decreases at higher ambient temperatures (usually above 50°C) and lower input voltages (below 100-120VAC). Ensure adequate capacity for your operating conditions.
Altitude Operation: If installing above 2000 meters (6500ft), apply the specified derating factor (5°C per 1000m) to ensure safe operation.
Cooling: Maintain adequate clearance around the power supply for proper free air convection. Do not block the ventilation holes on the mesh case.
Grounding: Ensure the FG (Frame Ground / Earth) terminal is correctly and securely connected to the system ground for safety and optimal EMC performance.
Wiring: Use appropriate gauge wire for input (AC/L, AC/N) and output (DC OUTPUT +V, DC OUTPUT -V) connections based on the current rating. Ensure correct polarity for the DC output.
Final Equipment EMC: The LRS-50 is an EMC-compliant component. However, the final equipment it is installed into must undergo its own EMC testing to confirm overall compliance. Refer to Mean Well's "EMI testing of component power supplies" guide if needed.
