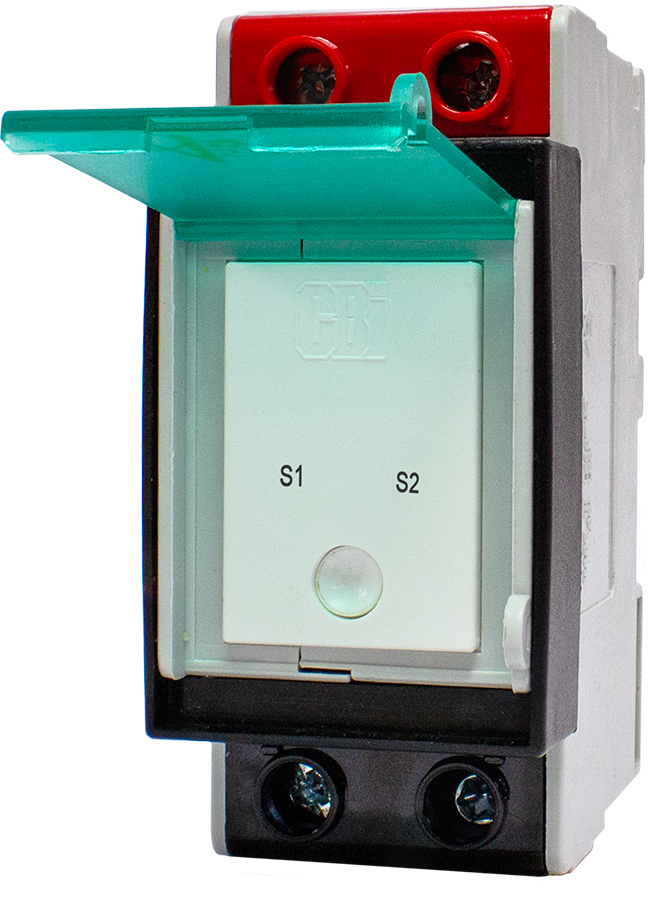

• The CBi Astute Smart Power Indicator (ASPI) is an advanced, Wi-Fi enabled monitoring device designed to provide real-time visibility and intelligent management of your electrical power sources.
• More than just a simple indicator, the CBi Astute Smart Power Indicator (ASPI) offers robust load management and automation capabilities, seamlessly integrating with other devices within the CBi Astute range.
• It empowers users to view the status of both mains (grid) and alternative power (e.g., solar, generator, inverter) directly from their smartphone or tablet via the intuitive CBI Home App.
• Crucially, the ASPI goes beyond mere status updates by enabling user-defined automations to intelligently manage power interruptions, protect critical systems like inverters and batteries from overload, and ensure the efficient restoration of loads after an outage.
• This makes the CBi Astute Smart Power Indicator (ASPI) an indispensable tool for enhancing energy resilience, optimizing alternative energy systems, and achieving comprehensive smart home or business automation.

Features

• Wi-Fi Connectivity: Fully Wi-Fi enabled (2.4 GHz only) for direct connection to your existing network, eliminating the need for a separate hub or gateway [1, 2, 3, 5].
• Dual Power Source Monitoring: Provides real-time status updates for both mains (grid) power and alternative power sources (e.g., solar, generator, inverter) on your smartphone [1, 2, 3, 5].
• Instant Power Event Notifications: Sends immediate notifications to your smartphone upon power failure events, whether from the mains or alternative supply [1, 2, 3, 5].

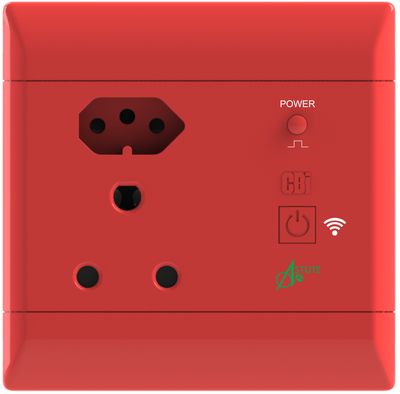

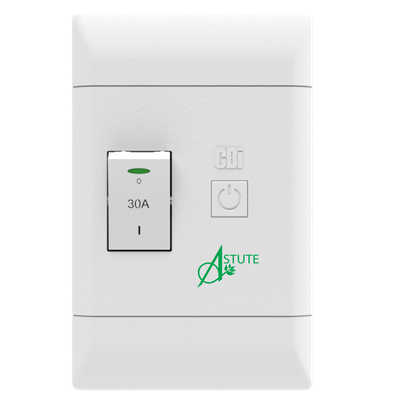

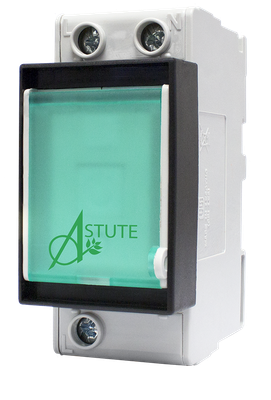

• Intelligent Automation Trigger: Can be used to set up user-defined automations with other CBi Astute devices (such as Astute Smart Controllers (ASC), Isolators (ASI), and Plugs (ASP)) to manage loads during power interruptions [1, 2, 3, 4].
• Load Shedding Management: Facilitates automatic switching off of non-essential or high-consumption loads (e.g., geysers, pool pumps, underfloor heating) when grid power is off, conserving battery life during load shedding or unplanned outages [1, 2, 3, 4].
• System Protection: Helps protect power inverters and generators from overloading and prevents battery depletion from non-essential loads, thereby extending the lifespan of alternative energy components [1, 2, 3, 4].
• Controlled Power Restoration: Supports automations to switch on loads when mains power is restored and the supply voltage has stabilized, or in a time-delayed sequence, preventing overloading and high inrush currents [1, 2, 3, 4].

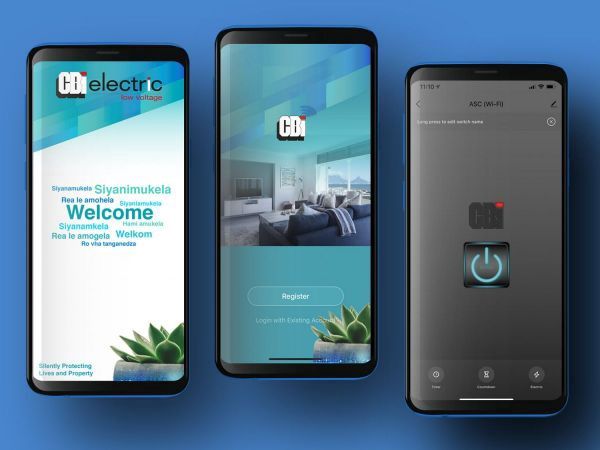

• Application Control: Fully controllable and configurable via the free CBI Home App, available on both the App Store and Google Play (also compatible with Smart Life or Tuya Apps) [1, 3, 5].
• Compact & Versatile Mounting: Designed with a compact form factor for efficient installation on either DIN rail or CBi Mini rail, with an escutcheon adaptor supplied [1, 5].
• Status Retention: All configured automations remain active during power failures or loss of internet connection, and functions are re-established automatically when power, Wi-Fi, and internet connectivity are restored [1, 5].

Benefits

• Enhanced Energy Resilience: Gain immediate awareness of power status changes, allowing for proactive management during outages and ensuring critical systems remain operational [1, 2, 3].
• Optimized Alternative Energy Use: Protect valuable inverters and batteries from over-discharge or overloading by automatically shedding non-essential loads when relying on backup power, significantly extending their lifespan and efficiency [1, 2, 3, 4].
• Significant Convenience: Receive critical power notifications directly on your smartphone, eliminating the need for manual checks and providing peace of mind, especially when away from the property [1, 2, 3].
• Automated Load Management: Implement sophisticated demand control strategies without manual intervention, automatically adjusting load profiles based on power source availability and preventing system strain [1, 2, 3, 4].
• Cost Savings: By intelligently managing loads during peak demand or alternative power usage, the CBi Astute Smart Power Indicator (ASPI) helps optimize energy consumption and potentially reduce electricity costs [1, 2].
• Seamless Smart Home Integration: As a Wi-Fi enabled device that requires no additional hub, it easily integrates into existing smart home ecosystems, enabling advanced automation scenarios in conjunction with other Astute devices [1, 2, 3, 4].
• Improved System Safety: The ability to automatically manage load restoration with time delays helps prevent sudden power surges and high inrush currents, safeguarding electrical infrastructure and connected appliances [1, 2, 3, 4].

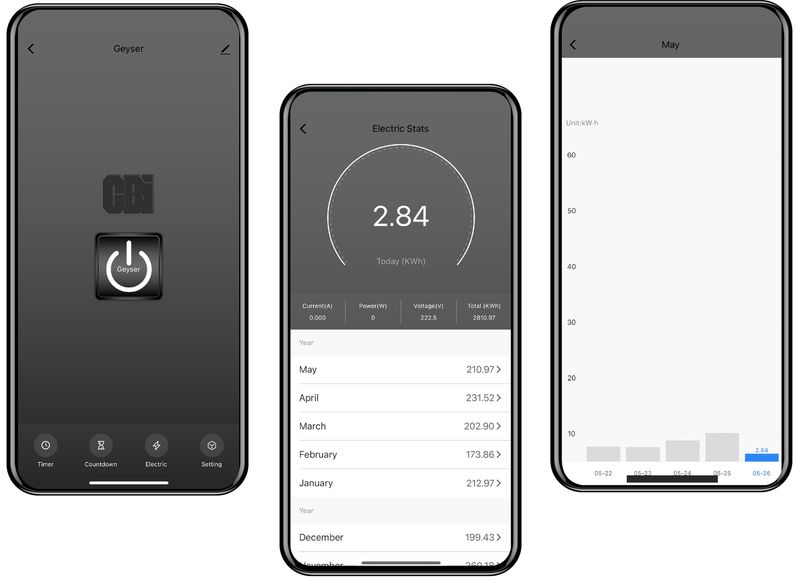

• Simplified Monitoring & Control: The user-friendly CBI Home App provides a centralized platform for monitoring power status and configuring complex automation rules with ease [1, 3, 5].

In-Depth Technical Specifications

The CBi Astute Smart Power Indicator (ASPI) is built to rigorous electrical standards, ensuring reliable performance and safety within various applications. Its detailed technical specifications are as follows:

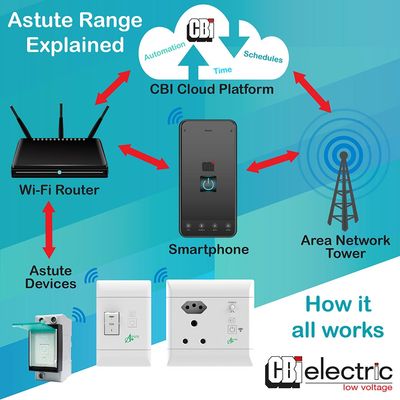

The CBi Astute Smart Power Indicator (ASPI) is an integral part of the versatile CBi Astute range, which includes the CBi Astute Smart Controller (ASC), Astute Smart Isolator (ASI), and Astute Smart Plug (ASP). These devices collectively form a comprehensive ecosystem for intelligent energy management, allowing users to build a sophisticated and responsive automated electrical system that optimizes power consumption, enhances safety, and provides unparalleled control.

Ideal Use

• Residential Homes with Alternative Energy Systems: Essential for monitoring mains and alternative power (solar, inverter, generator) and automating load shedding to protect batteries and ensure continuous power for essential appliances [1, 2, 3, 4].
• Commercial Buildings & Offices: Ideal for monitoring power status in critical areas (e.g., server rooms, security systems) and initiating automated responses to power fluctuations or outages to protect sensitive equipment [1, 2, 3].
• Light Industrial Facilities: Applicable for monitoring power supply to machinery or production lines, enabling automated shutdown of non-critical loads during power interruptions to maintain essential operations [1, 2, 3].
• Agricultural Sector: Useful for monitoring power to irrigation systems, animal housing, or other critical farm equipment, allowing for remote management during outages [1, 2, 3].
• Remote Properties/Holiday Homes: Provides peace of mind by notifying owners of power failures, allowing them to remotely activate automations to protect the property [1, 2, 3].
• Load Limiting Automation: Enables the setup of demand control to manage power interruptions, preventing manual switching off of non-essential loads [1, 2, 3].
• Smart Home & IoT Automation: A foundational component for sophisticated home automation systems, allowing other Astute devices to react intelligently to power source changes [1, 2, 3, 4].

Tips

• Wi-Fi Network Compatibility: The CBi Astute Smart Power Indicator (ASPI) is only compatible with 2.4 GHz Wi-Fi networks. Ensure your router is set to this frequency for successful pairing and operation [1, 5]. A stable internet connection is also required for remote notifications [1].
• Professional Installation: Installation of the CBi Astute Smart Power Indicator (ASPI) involves working with electrical wiring within a distribution board. It is imperative that this device be installed by a qualified and certified electrician to ensure safety and compliance with all local electrical codes [5]. Always isolate the main supply before installation [5].
• App Integration: Download the free CBI Home App from your device's app store. This app is essential for pairing the ASPI, viewing power status, receiving notifications, and setting up automations with other Astute devices [1, 5]. The ASPI is also compatible with Tuya and Smart Life apps [3].
• Leverage Automations: The true power of the ASPI lies in its automation capabilities when linked with other Astute devices. Explore setting up "If-Then" rules (e.g., "IF Mains Power OFF THEN Switch Geyser OFF" or "IF Mains Power ON THEN Switch Pool Pump ON after 5 seconds") to intelligently manage your loads during power transitions [1, 5].
• Power Failure Behavior: Understand that the ASPI itself will not operate if both mains and alternative power sources fail. However, once power and internet connectivity are restored, its functions will automatically re-establish, and any pre-configured automations will remain intact [1, 5].
• Observe Terminal Markings: During installation, ensure correct connection of line and neutral terminals as per the markings on the device to ensure proper functionality [5].
• Firmware Updates: Regularly check the CBI Home App for any available firmware updates for your CBi Astute Smart Power Indicator (ASPI). Updates often include performance improvements, bug fixes, and new features, ensuring optimal device performance.
