T Piece Adapter Rapid-45 GK-53100

OBO Bettermann Rapid 45-2 GK-53100 Series Device Installation Trunking System & Accessories

Overview

• The OBO Bettermann Rapid 45-2 is a comprehensive and versatile device installation trunking system, engineered for seamless and aesthetically superior cable management in modern buildings.
• This system, primarily focusing on the GK-53100 trunking profile (100mm width x 53mm height), offers a complete solution for routing power, data, and multimedia cables along walls while allowing for the effortless integration of OBO's Modul 45 series devices.
• Characterized by its symmetrical design, consistent color quality across components, and robust construction, the Rapid 45-2 system ensures a professional finish in offices, commercial spaces, educational institutions, and administrative buildings.
• The trunking itself is made from durable PVC, while the extensive range of fittings – including joint covers, end pieces, internal and external corners, flat angle hoods, T-piece adapters, and base connectors – are typically crafted from high-impact PC/ABS, many of which are halogen-free.
• This system is available in Pure White (RAL 9010), Light Grey (RAL 7035), and Jet Black (RAL 9005), allowing for perfect visual integration into diverse interior designs.

Features

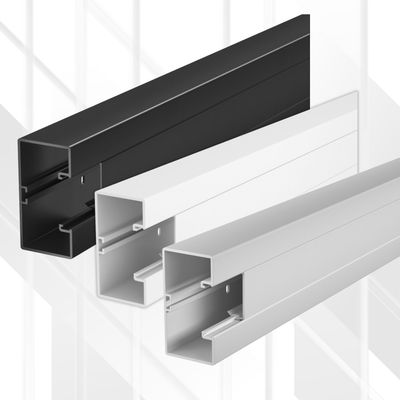

• Complete System Solution: Includes PVC trunking (GK-53100 series, 100mm x 53mm base and cover) and a full suite of matching PC/ABS accessories.
• Standard Trunking Length: 2000 mm.
• Color Consistency: Available in Pure White (RAL 9010), Light Grey (RAL 7035), and Jet Black (RAL 9005) across trunking and accessories.
• Modul 45® Integration: Designed for direct, snap-in installation of Modul 45 sockets, data outlets, USB chargers, and multimedia modules, often without needing separate device boxes within the trunking.
• Direct Wall Mounting: Trunking bases feature perforations for easy and secure direct wall installation.
• Durable Materials: High-quality PVC for trunking; robust Polycarbonate/Acrylonitrile-butadiene-styrene (PC/ABS) for most fittings.
• Halogen-Free Options: Many PC/ABS accessories are halogen-free, contributing to increased safety in case of fire.
• Comprehensive Accessory Range:

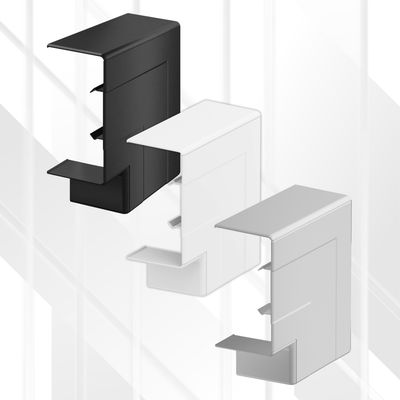

  • GK-OTSA45 Joint Covers: For trunking covers, ensuring tidy connections and hiding cut edges at Modul 45® device interfaces or between cover segments. Lockable and symmetrical.
  • GK-KS45-1 Trunking Connectors/Base Joint Covers: For joining trunking bases, hiding cut edges and providing perfect connection. Slide-on (before mounting).

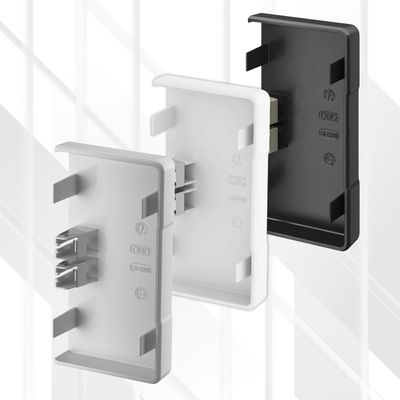

  • GK-E53100 End Pieces: Symmetrical, lockable end pieces for cleanly terminating trunking runs (left/right compatible).

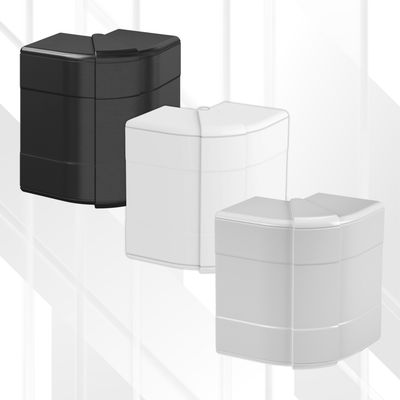

  • GK-AH53100 External Corner Hoods: Variable angle (80°-110°) hood fittings for navigating external corners.
  • GK-FH53100 Flat Angle Hoods: 90° hood fittings for vertical rising or falling direction changes.

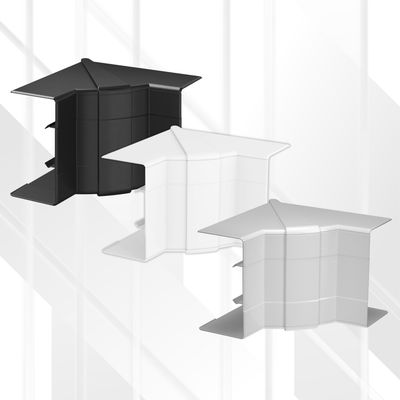

  • GK-IH53100 Internal Corner Hoods: Variable angle (typically 83°-97°) hood fittings for internal corners.

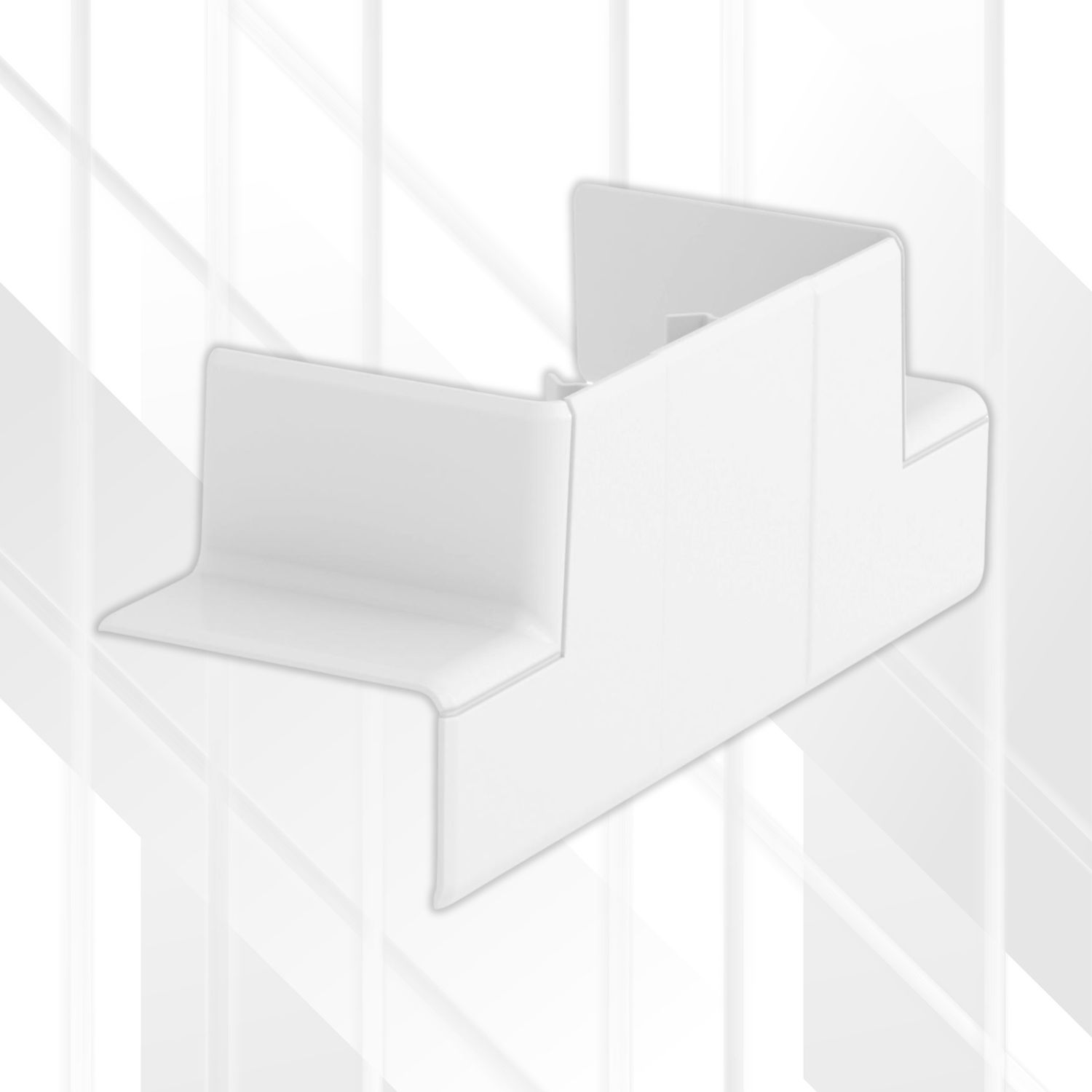

  • GK-TR53100 T-Piece Adapters: Hood fittings for creating 90° T-junctions within the GK-53100 system.
  • GK-OT45 Trunking Covers: Available separately if needed.
  • GK-TW53 Partitions: For internal separation of different cable types (e.g., power and data).
• Protection Standards: Many accessories offer IP40 protection against solid objects and IK08 impact resistance when correctly installed.
• Symmetrical Design: Provides a visually appealing and balanced aesthetic for all components.
• Certifications: CE marked; accessories often carry UKCA certification.

Benefits

• Integrated Cable Management: Provides a cohesive and organized solution for power, data, and communication cabling, enhancing safety and aesthetics.
• Rapid and Efficient Installation: The click-in Modul 45 system and easy-to-fit accessories significantly reduce installation time and labor costs.
• Professional and Clean Appearance: Homogeneous color quality, symmetrical design, and neatly concealed connections ensure a high-end finish suitable for any modern interior.
• Unmatched Flexibility: With variable angle corners, a wide variety of fittings, and direct device integration, the system adapts to complex layouts and diverse installation requirements.
• Enhanced Durability and Protection: Robust materials protect cabling from physical damage, dust, and accidental contact.
• Improved Safety: Organizes cables to prevent trip hazards and offers halogen-free fitting options for environments with stringent fire safety requirements.
• Simplified Maintenance and Upgrades: Removable covers and easily accessible devices allow for straightforward maintenance, modifications, and future upgrades.
• Versatile Application: Ideal for new constructions and refurbishments in a broad range of settings including offices, commercial buildings, schools, hospitals, and public administration facilities.

In-Depth Technical Specifications

Table 1: Rapid 45-2 GK-53100 Device Installation Trunking (PVC)

Table 2: GK-OTSA45 Joint Covers (for Trunking Cover)

Table 3: GK-E53100 End Pieces (for 100x53mm Trunking)

Table 4: GK-AH53100 External Corner Hoods (Variable Angle)

Table 5: GK-FH53100 Flat Angle Hoods (90° Vertical)

Table 6: GK-IH53100 Internal Corner Hoods (Variable Angle)

Table 7: GK-TR53100 T-Piece Adapters

Table 8: GK-KS45-1 Trunking Connector and Joint Covers (for Trunking Base)

Table 9: GK-OT45 Trunking Cover (PVC - Sold Separately)(On Request)

Ideal Use

• Modern Office Buildings: For distributing power and data to workstations, in conference rooms, and along corridors, ensuring a clean and adaptable infrastructure.
• Commercial and Retail Spaces: Providing a neat and accessible way to manage cabling for POS systems, lighting, security, and displays.
• Educational Facilities: Safely routing cables in classrooms, lecture halls, libraries, and laboratories.
• Healthcare Environments: Suitable for administrative areas, waiting rooms, and patient rooms where organized cable management is crucial (always verify specific healthcare regulations).
• Public and Administrative Buildings: Offering a standardized and professional solution for cable routing in government offices and public institutions.
• Any Application Requiring Integrated Device Mounting: Perfect for installations that need to combine power outlets, network sockets, USB charging ports, HDMI, and other multimedia connections directly within the trunking system.

Tips

• System Planning: Before installation, meticulously plan the trunking layout. Account for all necessary device locations, corners, junctions, and terminations to ensure you order the correct quantities and types of trunking and fittings.
• Color Coordination: For the most professional finish, ensure all trunking sections and accessories (joint covers, end pieces, corners, etc.) are ordered in the same color variant (Pure White, Light Grey, or Jet Black).
• Cutting Trunking (PVC): Use a fine-toothed saw (e.g., coping saw) for clean, precise cuts on PVC trunking. Deburr cut edges for safety and a better fit with accessories.
• Secure Mounting: Utilize the pre-drilled perforations in the trunking base for direct and secure wall attachment. Select fasteners appropriate for the wall material.
• Accessory Installation:
  • GK-OTSA45 Joint Covers: Snap onto the trunking cover to conceal cuts and create seamless transitions to Modul 45 devices or other cover segments.
  • GK-KS45-1 Connectors: Slide onto the ends of trunking bases before mounting to create a secure and neat joint between base segments.
  • Hood Fittings (Corners, T-Pieces, Flat Angles): These generally attach over the cut trunking ends, often securing to both the trunking and sometimes requiring an additional wall fixing point (as shown for flat angle hoods GK-FH type).
• Modul 45® Device Installation: These devices are designed for tool-free click-in installation directly into the trunking cover openings or via specific adapters, streamlining the device mounting process.
• Cable Separation: When running power cables alongside data or communication lines, always use the GK-TW53 internal partition to prevent electromagnetic interference and comply with relevant regulations.
• Handling Cut Edges: All accessories are designed to conceal cut edges of the trunking, ensuring a safe and visually appealing installation.
• Temperature Considerations: Adhere to the permitted temperature ranges for both PVC trunking and PC/ABS accessories to ensure long-term performance and material integrity.
