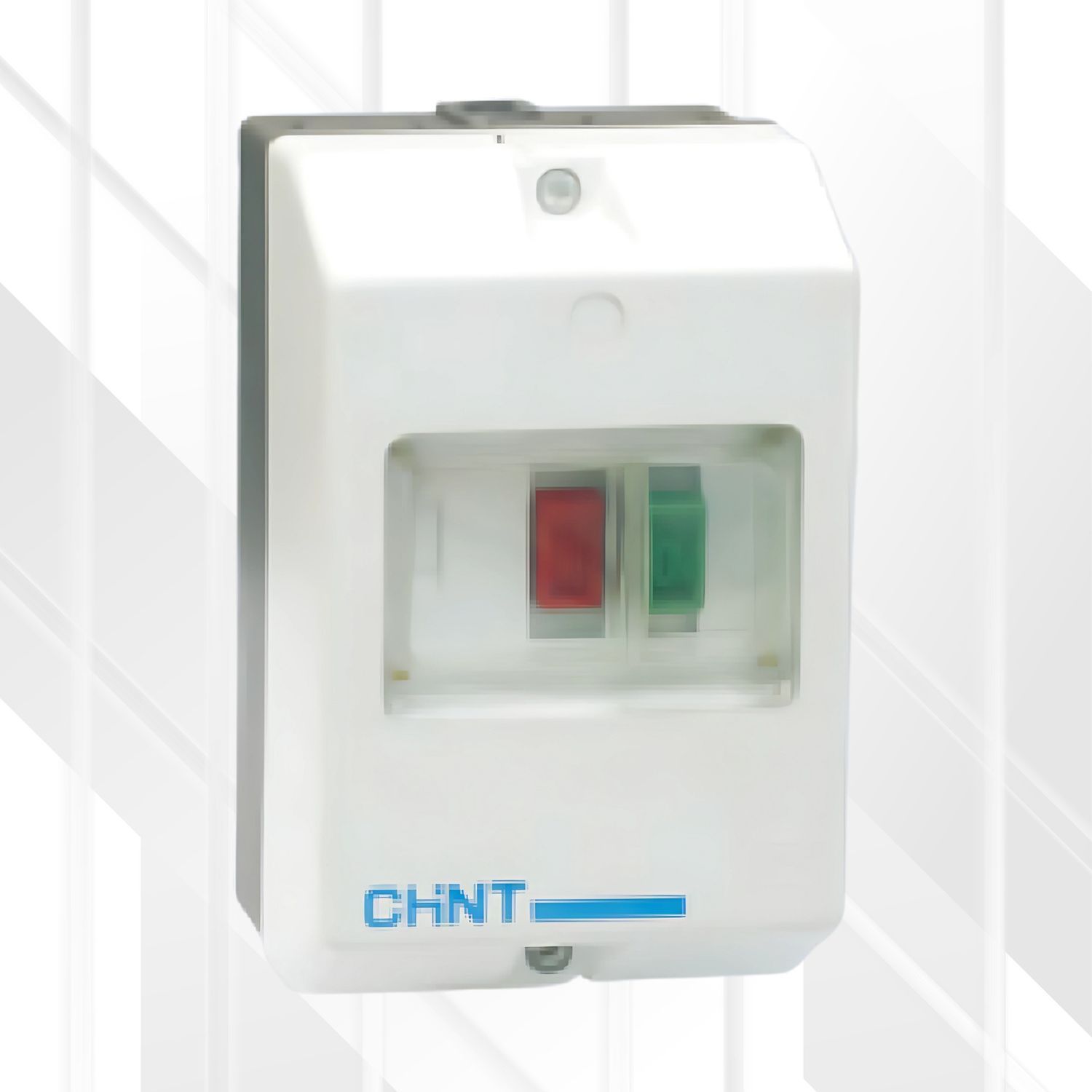

CHINT Enclosure Surface for Starter NS2-25

• The CHINT NS2-MC is a robust surface-mount enclosure specifically designed to house the NS2-25 series manual motor starters.
• This mounting box elevates the protection level of the installed starter to IP55, safeguarding it against dust ingress and low-pressure water jets from any direction.
• It provides a practical solution for installing NS2-25 starters in environments requiring enhanced protection beyond the standard IP20 rating.

Features

• Designed for NS2-25 Manual Motor Starters

• Surface Mount Design

• Provides IP55 Degree of Protection for the installed starter

• Durable Construction

• Easy Installation

Benefits

• Enhanced Protection: Significantly increases the starter's resistance to environmental factors like dust and water spray.

• Increased Application Flexibility: Allows NS2-25 starters to be safely installed in more demanding locations.

• Improved Durability: Protects the starter mechanism from physical contaminants, potentially extending its operational life.

• Maintained Safety: Encloses the starter components, offering protection against accidental contact.

Technical Specifications

• Model: NS2-MC

• Product Type: Surface Mounting Box / Enclosure

• Compatibility: CHINT NS2-25 Manual Motor Starters (Button Type)

• Mounting Type: Surface Mount

• Achieved Protection Class (with starter installed): IP55

• Dimensions: Refer to NS2-MC outline dimensions in the datasheet (Figure 6, Page 11 of NS2-25/32/32H manual or Figure 10, Page 10 of NS2 General Catalog). Approx. 93.8mm (W) x 147.6mm (H) x 89.3mm (D) excluding protrusions.

Ideal Use

• Installations requiring IP55 protection for an NS2-25 starter.

• Workshops or industrial areas with high levels of dust.

• Agricultural buildings and installations.

• Locations prone to splashing water (not submersible).

• Control stations requiring surface mounting.

Tips

• Compatibility: Ensure you are using this enclosure with a compatible NS2-25 model.

• Mounting: Securely mount the enclosure to a flat, stable surface using appropriate fixings (mounting hole dimensions available in datasheets).

• Cable Entry: Use suitable IP55-rated cable glands for all cable entries to maintain the enclosure's overall protection rating.

• Seal Integrity: Ensure the enclosure lid seal is clean and properly seated when closing the box after installation or maintenance.

• Starter Installation: Follow the instructions for installing the NS2-25 starter within the NS2-MC enclosure.
