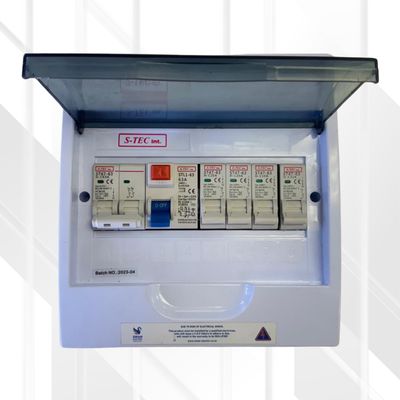

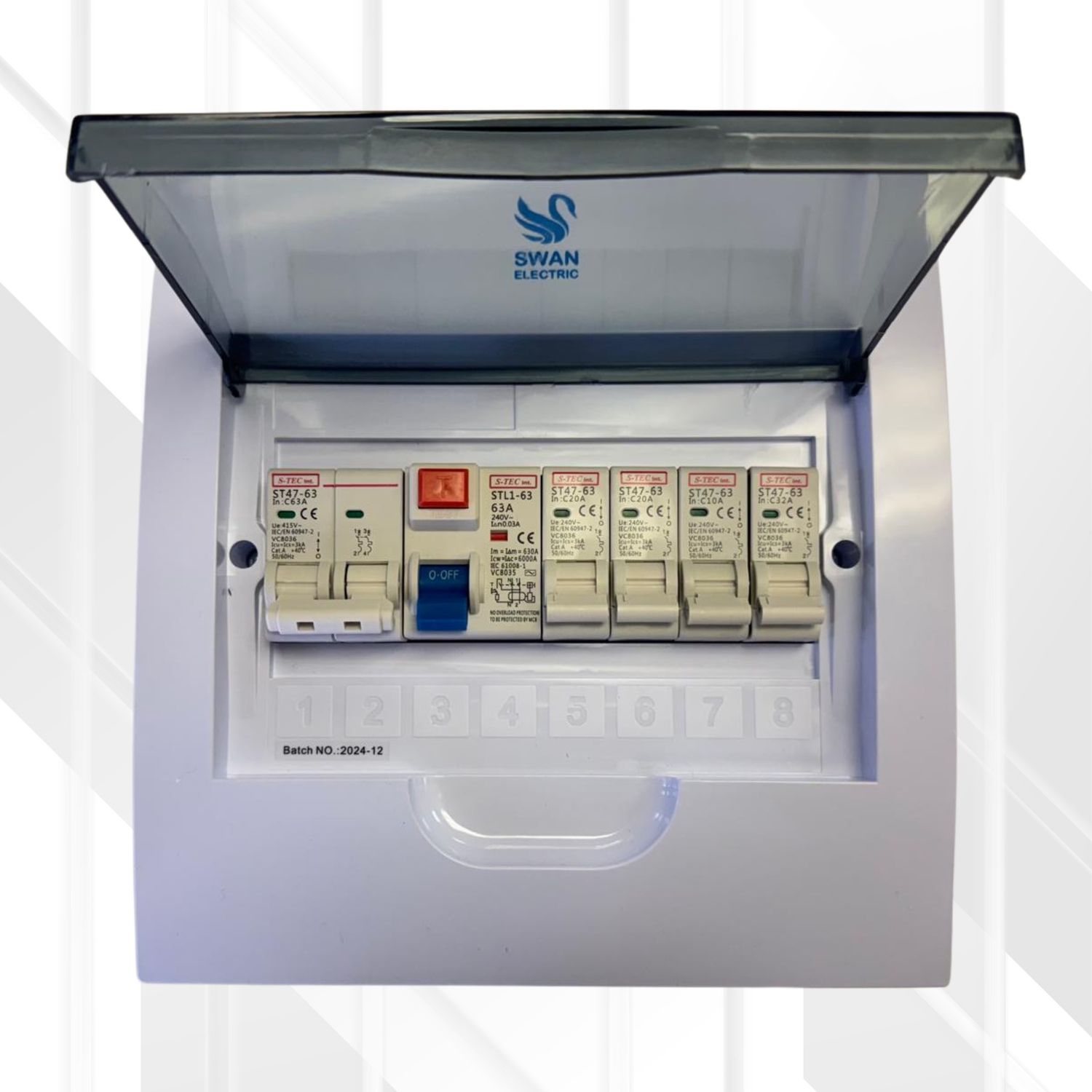

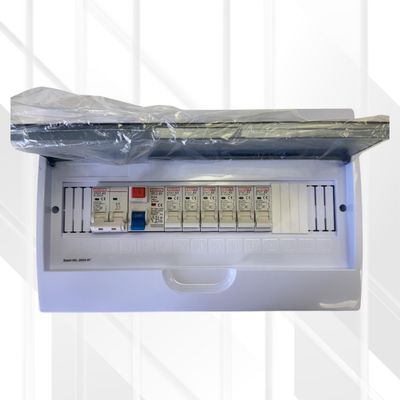

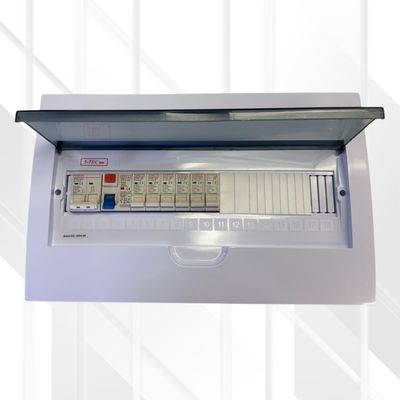

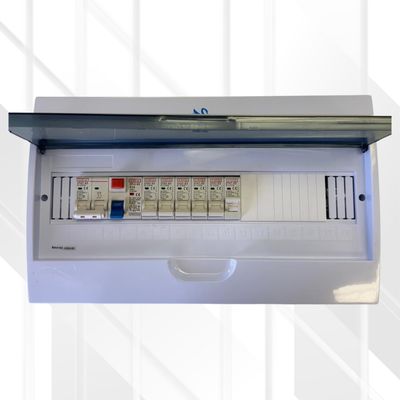

S-TEC Populated DB Flush 8Way

• The S-TEC 8-Way Pre-Populated Flush Mount Distribution Board is a sleek, ready-to-install solution designed for concealed electrical protection in new constructions and modern renovations.
• This unit comes factory-fitted with high-quality S-TEC components, including a 63A main isolator, a sensitive 63A earth leakage device, and a versatile set of miniature circuit breakers (1x32A, 2x20A, 1x10A).
• The flush mount design allows for a seamless integration into walls, providing a clean aesthetic while ensuring robust safety and compliance.
• It's "The Safe Option!" for discreet and reliable electrical distribution.

Features

• Enclosure: 8-Way Flush Mount DB-ST Series (Model DB-ST-8W-PF or similar).
• Construction: Durable ABS body with a base designed for in-wall mounting and a Polycarbonate (PC) window/cover.
• Pre-Populated: Includes S-TEC 63A 2-Pole Main Incomer Isolator.
• Earth Leakage Protection: S-TEC STL1-63 63A 1P+N 30mA Earth Leakage Device (RCCB).
• Circuit Protection:
  • 1 x S-TEC ST47 32A 1P 3kA C-Curve Miniature Circuit Breaker (MCB).
  • 2 x S-TEC ST47 20A 1P 3kA C-Curve Miniature Circuit Breaker (MCB).
  • 1 x S-TEC ST47 10A 1P 3kA C-Curve Miniature Circuit Breaker (MCB).
• Internal Components: Fitted with Neutral Bar, Earth Bar, and appropriate busbar for MCB connections.
• Compliance: Components are fully compliant with NCRS (LOA & RCC), IEC, and SANS standards.
• Design: Aesthetically clean for built-in, concealed installations.
• Mounting: Flush mount for installation within wall cavities, components on DIN rail.

Benefits

• Seamless Aesthetics: Flush mount design provides a clean, unobtrusive look, ideal for modern interiors.
• Time-Saving Installation: Pre-populated design significantly reduces installation time and complexity, especially in new builds.
• Enhanced Safety: Provides comprehensive protection against overloads, short circuits (MCBs), and earth leakage faults (RCCB).
• Guaranteed Compatibility: All included S-TEC components are designed to work seamlessly together.
• Reliable Performance: Built with high-quality materials for long-lasting service.
• Simplified Compliance: Meets key South African and international electrical safety standards.
• User-Friendly: Clear window allows for easy inspection of component status once installed.
• Space-Saving: Ideal for installations where surface space is limited or a concealed board is preferred.

In-Depth Technical Specifications

A. S-TEC 8-Way Flush Mount Distribution Board (e.g., DB-ST-8W-PF)

B. Included S-TEC Components

1. Incomer Isolator (Main Switch)

• Type: Main Isolator
• Poles: 2-Pole (2P)
• Rated Current (In): 63A
• Rated Voltage (Ue): 230V/415V AC
• Mounting: DIN Rail
• Standard Compliance: Part of NCRS (LOA & RCC) requirements

2. Earth Leakage Device (S-TEC STL1-63)

• Model: STL1-63
• Type: RCCB (Residual Current Circuit Breaker without overcurrent protection)
• Standard: VC8035, IEC61008-1, CE Marked
• Poles: 1P+N (2-Pole)
• Rated Current (In): 63A
• Rated Voltage (Ue): 230V AC
• Rated Frequency: 50/60 Hz
• Rated Residual Operated Current (IΔn): 0.03A (30mA)
• Rated Limited Short Circuit Current (IΔc): 6000A
• Rated Making & Breaking Capacity (Im / IΔm): 630A (for In=63A)
• Protection Degree: IP20 (of individual component)
• Electrical Life Expectancy: 1000 operations
• Mechanical Life Expectancy: 2000 operations
• Ambient Operating Temperature: -30°C to +60°C (daily average ≤35°C)
• Best Ambient Temperature: 30°C
• Terminal Connection: Cable/Pin-type busbar (Top and Bottom)
• Tighten Torque (max): 3.0Nm
• Mounting: DIN Rail (35mm)

3. Miniature Circuit Breakers (S-TEC ST47 Series)

• Model: ST47
• Standard: SANS556-1, IEC60947-2, VC8036, CE Marked
• Poles: 1-Pole (1P)
• Rated Voltage (Ue): 230V AC
• Rated Frequency: 50/60 Hz
• Rated Breaking Capacity (Icn): 3kA
• Thermo-magnetic Release Characteristic: C-Curve (white toggle)
• Protection Degree: IP20 (of individual component)
• Electrical Life Expectancy: 4000 operations
• Mechanical Life Expectancy: 10000 operations
• Ambient Operating Temperature: -30°C to +60°C (daily average ≤35°C)
• Best Ambient Temperature: 30°C (Calibrated for South Africa at 40°C)
• Terminal Connection: Cable/Pin-type busbar (Top and Bottom)
• Tighten Torque (max): 2.5Nm
• Mounting: DIN Rail EN 60715 (35mm)
• Specific MCBs Included:
  • 1 x ST47 32A 1P 3kA C-Curve
  • 2 x ST47 20A 1P 3kA C-Curve
  • 1 x ST47 10A 1P 3kA C-Curve

4. Busbar

• Type: Appropriate pin-type busbar for MCB interconnections included.

Ideal Use

• New residential constructions (houses, apartments, townhouses).
• Modern renovations where a concealed electrical board is desired.
• Outbuildings, garages, and granny flats in new builds.
• Small workshops and light commercial units where aesthetics are important.
• Installations in drywall or brick/block walls requiring a built-in solution.

Tips

• Professional Installation Required: This distribution board must be installed, tested, and commissioned by a qualified and certified electrician in accordance with local wiring regulations and SANS 10142-1.
• Wall Cavity Preparation: Ensure the wall opening and cavity depth are correctly sized for the flush mount enclosure. Allow for secure fixing of the enclosure base.
• Making Good: Plan for plastering or finishing around the enclosure frame to achieve a neat, flush finish.
• Cable Entry: Plan cable entry points into the enclosure before fixing it into the wall.
• Torque Settings: Ensure all terminal connections are tightened to the manufacturer's specified torque values.
• Earth Leakage Testing: Regularly test the earth leakage device by pressing the "T" (Test) button (monthly is recommended).
• Safety First: Always isolate the electrical supply before opening the distribution board cover or performing any maintenance. Lethal voltages are present inside.
• Accessibility: While flush-mounted for aesthetics, ensure the board remains accessible for future maintenance, testing, and inspection.
