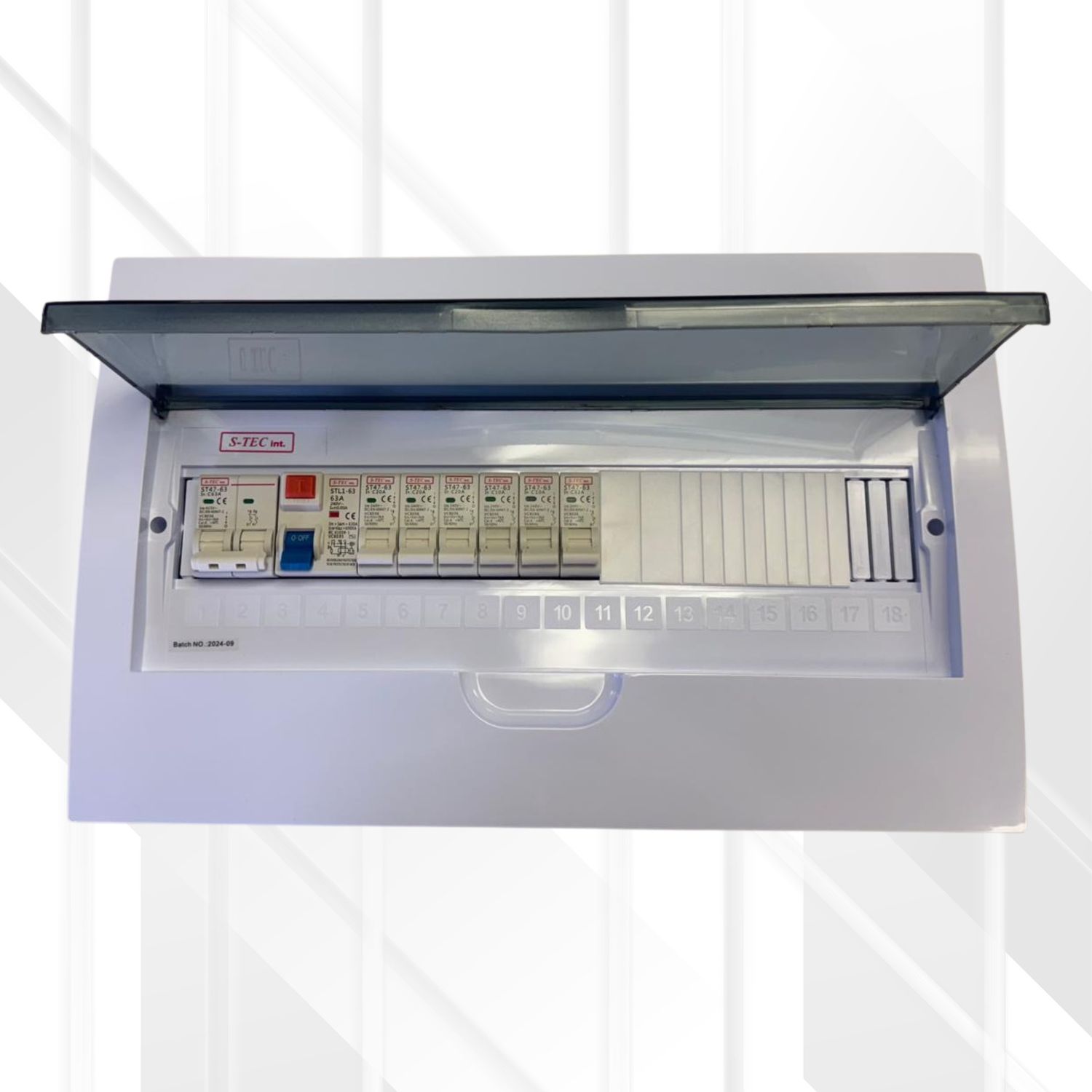

S-TEC Populated DB Flush 18Way

• The S-TEC 18-Way Pre-Populated Flush Mount Distribution Board is the ultimate solution for extensive, concealed electrical distribution in new, high-specification constructions and major renovations.
• This professionally assembled unit is equipped with premium S-TEC components, including a dependable 63A 2-Pole main isolator, a highly responsive 63A earth leakage device, and a versatile set of miniature circuit breakers (1x32A, 3x20A, 2x10A).
• The flush mount design allows for a perfectly seamless integration into walls, providing a clean, unobtrusive aesthetic while offering maximum circuit capacity, unparalleled safety, and full compliance.
• It's "The Safe Option!" for comprehensive and discreet electrical management in demanding projects.

Features

• Enclosure: 18-Way Flush Mount DB-ST Series (Model DB-ST-18W-PF or similar).
• Construction: Robust ABS body with a base specifically engineered for in-wall mounting, and a sleek Polycarbonate (PC) window/cover for component visibility.
• Pre-Populated: Includes S-TEC 63A 2-Pole Main Incomer Isolator.
• Earth Leakage Protection: S-TEC STL1-63 63A 1P+N 30mA Earth Leakage Device (RCCB).
• Circuit Protection (MCBs):
  • 1 x S-TEC ST47 32A 1P 3kA C-Curve Miniature Circuit Breaker.
  • 3 x S-TEC ST47 20A 1P 3kA C-Curve Miniature Circuit Breaker.
  • 2 x S-TEC ST47 10A 1P 3kA C-Curve Miniature Circuit Breaker.
• Internal Components: Fitted with Neutral Bar, Earth Bar, and an appropriate busbar (e.g., BB 6 MOD) for the included MCB connections.
• Maximum Spare Capacity: Provides a very generous number of spare ways, ideal for complex installations, smart home integrations, and extensive future circuit additions.
• Compliance: All components are fully compliant with NCRS (LOA & RCC), IEC, and SANS standards.
• Design: Architecturally considerate, ensuring a completely flush and minimalist appearance once installed and the wall is finished.
• Mounting: Precision flush mount for secure and discreet installation within wall cavities, with components neatly arranged on an internal DIN rail.

Benefits

• Flawless Aesthetic Integration: The flush mount design ensures the distribution board is virtually invisible, preserving clean wall lines for high-end architectural finishes.
• Optimized for New Constructions: Pre-populated and designed for in-wall installation, significantly streamlining the electrical rough-in and fit-off stages.
• Ultimate Safety and Protection: Delivers top-tier protection against electrical overloads, short circuits, and life-threatening earth leakage faults.
• Engineered Component Synergy: All S-TEC components are carefully selected for perfect compatibility and peak operational performance.
• Unparalleled Future-Proofing: The 18-way capacity offers maximum flexibility for any future expansions, technological upgrades, or additional specialized circuits.
• Concealed Durability: Built from high-quality, resilient materials for long-lasting, reliable service hidden within the wall structure.
• Guaranteed Regulatory Adherence: Fully meets all critical South African and international electrical safety standards, ensuring complete compliance.
• Discreet yet Accessible Monitoring: The clear window allows for quick visual inspection of protective device status without disturbing the flush finish.

In-Depth Technical Specifications

A. S-TEC 18-Way Flush Mount Distribution Board (e.g., DB-ST-18W-PF)

B. Included S-TEC Components

1. Incomer Isolator (Main Switch)

• Type: Main Isolator
• Poles: 2-Pole (2P)
• Rated Current (In): 63A
• Rated Voltage (Ue): 230V/415V AC
• Mounting: DIN Rail
• Standard Compliance: Integral to NCRS (LOA & RCC) requirements

2. Earth Leakage Device (S-TEC STL1-63)

• Model: STL1-63
• Type: RCCB (Residual Current Circuit Breaker without overcurrent protection)
• Standard: VC8035, IEC61008-1, CE Marked
• Poles: 1P+N (2-Pole)
• Rated Current (In): 63A
• Rated Voltage (Ue): 230V AC
• Rated Frequency: 50/60 Hz
• Rated Residual Operated Current (IΔn): 0.03A (30mA)
• Rated Limited Short Circuit Current (IΔc): 6000A
• Rated Making & Breaking Capacity (Im / IΔm): 630A (for In=63A)
• Protection Degree: IP20 (of individual component)
• Electrical Life Expectancy: 1000 operations
• Mechanical Life Expectancy: 2000 operations
• Ambient Operating Temperature: -30°C to +60°C (daily average ≤35°C)
• Best Ambient Temperature: 30°C
• Terminal Connection: Cable/Pin-type busbar (Top and Bottom)
• Tighten Torque (max): 3.0Nm
• Mounting: DIN Rail (35mm)

3. Miniature Circuit Breakers (S-TEC ST47 Series)

• Model: ST47
• Standard: SANS556-1, IEC60947-2, VC8036, CE Marked
• Poles: 1-Pole (1P)
• Rated Voltage (Ue): 230V AC
• Rated Frequency: 50/60 Hz
• Rated Breaking Capacity (Icn): 3kA
• Thermo-magnetic Release Characteristic: C-Curve (white toggle)
• Protection Degree: IP20 (of individual component)
• Electrical Life Expectancy: 4000 operations
• Mechanical Life Expectancy: 10000 operations
• Ambient Operating Temperature: -30°C to +60°C (daily average ≤35°C)
• Best Ambient Temperature: 30°C (Calibrated for South Africa at 40°C)
• Terminal Connection: Cable/Pin-type busbar (Top and Bottom)
• Tighten Torque (max): 2.5Nm
• Mounting: DIN Rail EN 60715 (35mm)
• Specific MCBs Included:
  • 1 x ST47 32A 1P 3kA C-Curve
  • 3 x ST47 20A 1P 3kA C-Curve
  • 2 x ST47 10A 1P 3kA C-Curve

4. Busbar

• Type: BB 6 MOD (or equivalent 6-module pin-type busbar) included for the 6 outgoing MCB interconnections, leaving extensive DIN rail space for additional busbars as required for populating spare ways.

Ideal Use

• New, large-scale luxury residential properties and custom-designed homes.
• High-specification renovations demanding completely concealed electrical infrastructure.
• Multi-dwelling units or apartment complexes where centralized, high-capacity flush boards are specified.
• Small to medium commercial buildings, boutique hotels, or modern office spaces designed with integrated services.
• Installations within drywall, brick, or block wall structures during new construction, requiring maximum circuit capacity and future-proofing.

Tips

• Exclusive Professional Installation: This high-capacity flush mount distribution board must be installed, thoroughly tested, and commissioned only by a qualified, certified, and registered electrician, strictly adhering to SANS 10142-1 and all applicable local wiring regulations.
• Meticulous Wall Cavity Preparation: Ensure the wall opening and recess depth are prepared with high precision according to the flush mount enclosure's specifications (DB-ST-18W-PF: approx. 365mm L x 217mm W x 85mm D for the box). The enclosure base must be securely and squarely fixed.
• Perfect Wall Finishing Integration: Coordinate with plasterers or drywall installers to ensure the wall finishing (skimming, plastering) around the enclosure frame results in a perfectly seamless and flush aesthetic.
• Considered Cable Management: Pre-plan and carefully manage all cable entries into the enclosure before final fixing into the wall cavity, ensuring no strain on cables or terminals.
• Adherence to Torque Specifications: It is absolutely critical that all terminal connections (main incomer, earth leakage, MCBs, neutral/earth bars) are tightened precisely to the manufacturer's specified torque values to prevent any future issues.
• Systematic Earth Leakage Testing: Establish and maintain a schedule for regularly testing the earth leakage device by pressing its "T" (Test) button (monthly is highly recommended) to verify its ongoing life-saving functionality.
• Rigorous Safety Before Access: Before attempting to access the interior of the distribution board for any reason (adding circuits, inspection, maintenance), the main electrical supply MUST be completely isolated, locked out, and tagged out.
• Documentation and Accessibility: Despite its concealed nature, ensure the installed board's location is documented and remains reasonably accessible for future maintenance, testing, and circuit identification. Clear internal labeling of all circuits is essential.
