External Corner Hood Rapid-45 GK-53130

OBO Bettermann Rapid 45-2 GK-53130 Series (130mm) Device Installation Trunking System & Accessories

Overview

• The OBO Bettermann Rapid 45-2 GK-53130 series is an advanced, 2-compartment device installation trunking system, expertly designed for efficient and aesthetically superior cable management in contemporary environments.
• With a nominal width of 130mm and a height of 53mm, this system excels at routing power, data, and multimedia cables along walls while allowing for the seamless, direct integration of OBO's innovative Modul 45 series devices.
• Crafted for professionalism, the Rapid 45-2 GK-53130 system features a symmetrical design and robust PVC construction for the trunking, ensuring durability and a clean finish.
• It's complemented by an extensive range of high-impact PC/ABS fittings – including specialized joint covers for the covers and bases, end pieces, adaptable internal and external corners, 90° flat angle hoods, and T-piece adapters.
• Many of these fittings are halogen-free, enhancing safety. The system's availability in Pure White (RAL 9010) and Light Grey (RAL 7035) allows for perfect visual harmony with diverse interior designs, making it ideal for offices, commercial spaces, and administrative buildings.

Features

• Complete System Solution: Features 2-compartment PVC trunking (GK-53130 series, 130mm x 53mm base and dual covers) and a full suite of matching PC/ABS accessories.

• Trunking Dimensions: 130 mm width x 53 mm height.

• Standard Trunking Length: 2000 mm.

• Color Options: Pure White (RAL 9010) and Light Grey (RAL 7035) for trunking and most accessories.

• Modul 45® Integration: Facilitates direct, snap-in installation of Modul 45 sockets, data outlets, and multimedia modules into the 45mm wide cover segments.

• Direct Wall Mounting: Trunking bases feature perforations for easy and secure installation.

• Durable Materials: High-quality Polyvinylchloride (PVC) for trunking; robust Polycarbonate/Acrylonitrile-butadiene-styrene (PC/ABS) for most fittings.

• Halogen-Free Accessories: Many fittings are halogen-free, increasing safety in fire-sensitive environments.

• Comprehensive Accessory Range for 130mm System:

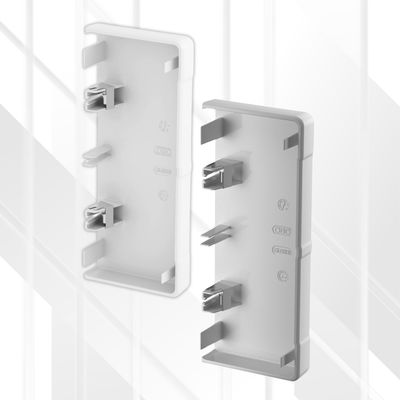

  • GK-E53130 End Pieces: Symmetrical, lockable end pieces for cleanly terminating 130mm trunking runs.

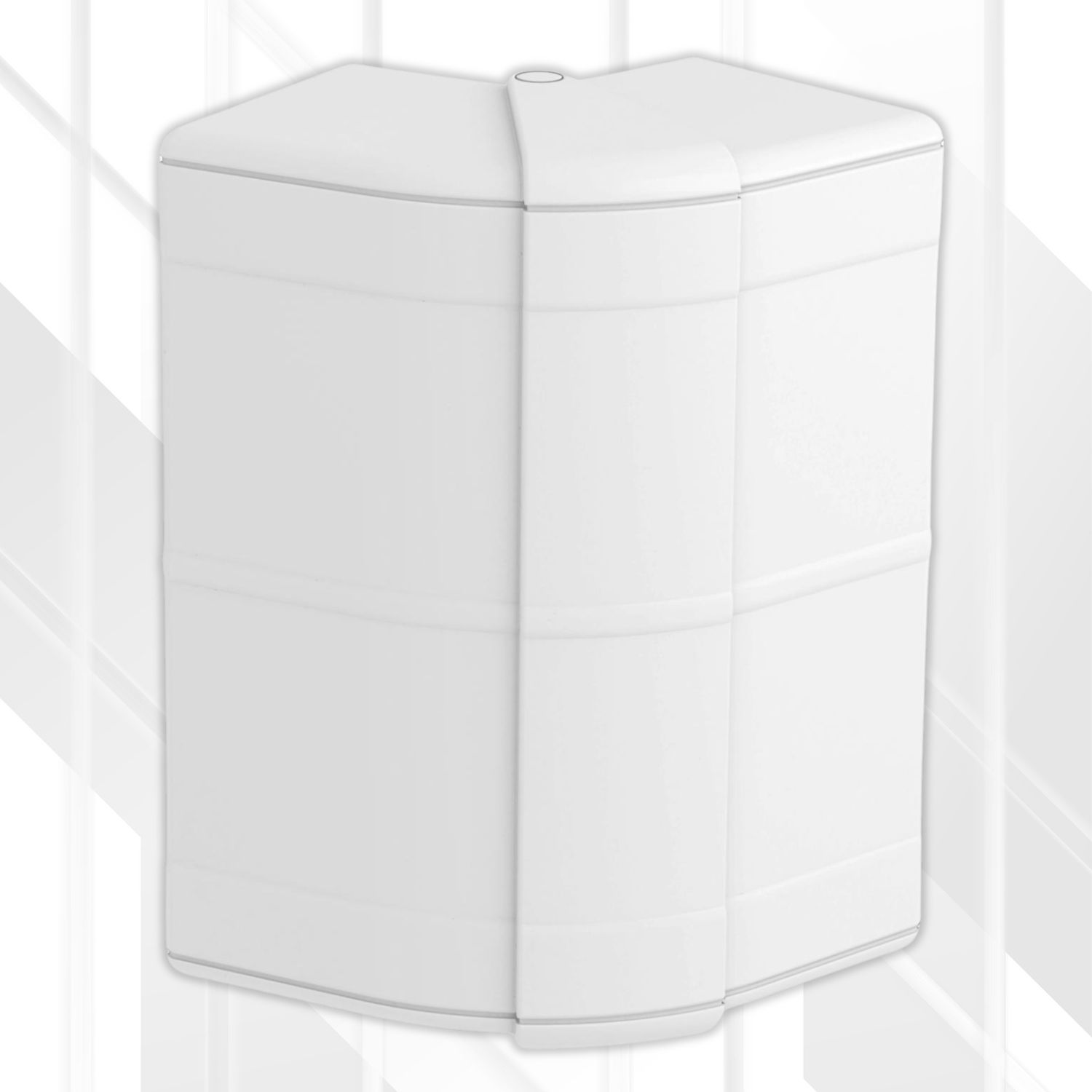

  • GK-AH53130 External Corner Hoods: Variable angle (80°-110°) fittings for 130mm trunking external corners.

  • GK-FH53130 Flat Angle Hoods: 90° hood fittings for vertical direction changes with 130mm trunking.

  • GK-IH53130 Internal Corner Hoods: Variable angle (83°-97°) fittings for 130mm trunking internal corners.

  • GK-TR53130 T-Piece Adapters: For creating 90° T-junctions specific to the 130mm, 2-compartment system.

• Shared System Accessories:

  • GK-OTSA45 Joint Covers: For the 45mm wide trunking cover segments, ensuring tidy connections and hiding cut edges.

  • GK-KS45-1 Trunking Connectors/Base Joint Covers: For joining trunking bases (note: datasheet specifies for 100mm & 165mm, specific 130mm base connectors like GK-KS45-2 may also be part of the broader system).

  • GK-OT45 Trunking Covers: Spare 45mm wide covers.

  • GK-TW53 Partitions: For internal separation of cables within the trunking compartments.

• Protection Standards: Accessories typically offer IP40 protection and IK08 impact resistance when installed correctly.

• Certifications: CE marked; accessories often carry UKCA certification.

Benefits

• Organized Dual Compartment Cabling: Effectively separates power from data/low-voltage cabling within a single, sleek profile, minimizing interference and enhancing organization.

• Streamlined Device Installation: Modul 45 devices click directly into the cover segments, dramatically reducing installation time and complexity.

• Professional Aesthetics: The symmetrical design and consistent color quality across the system deliver a modern, unobtrusive finish ideal for visible installations.

• System Adaptability: A wide range of specialized and shared fittings allows for precise adaptation to various architectural layouts and cabling requirements.

• Robust Protection: Durable PVC trunking and high-impact PC/ABS fittings safeguard cables from physical damage and environmental factors.

• Enhanced Safety: Neatly contained cables reduce trip hazards, and halogen-free fittings contribute to fire safety.

• Ease of Maintenance: Removable covers and accessible devices simplify maintenance, troubleshooting, and future system modifications or expansions.

• Versatile Applications: Perfectly suited for new constructions and refurbishments in offices, commercial properties, educational institutions, and healthcare administration areas.

In-Depth Technical Specifications

Table 1: Rapid 45-2 GK-53130 Device Installation Trunking (PVC, 130mm, 2-Compartment)

Table 2: GK-OTSA45 Joint Covers (for 45mm Trunking Cover Segments)

Table 3: GK-E53130 End Pieces (for 130mm Trunking)

Table 4: GK-AH53130 External Corner Hoods (Variable Angle, for 130mm Trunking)

Table 5: GK-FH53130 Flat Angle Hoods (90° Vertical, for 130mm Trunking)

Table 6: GK-IH53130 Internal Corner Hoods (Variable Angle, for 130mm Trunking)

Table 7: GK-TR53130 T-Piece Adapters (for 130mm, 2-Compartment Trunking)

Table 8: GK-KS45-1 Trunking Connector and Joint Covers (for Trunking Base)

Table 9: GK-OT45 Trunking Cover (PVC - Spare) (On Request)

Ideal Use

• Modern Office Buildings: For distributing power and data to workstations, in conference rooms, and along corridors, ensuring a clean and adaptable infrastructure.
• Commercial and Retail Spaces: Providing a neat and accessible way to manage cabling for POS systems, lighting, security, and displays.
• Educational Facilities: Safely routing cables in classrooms, lecture halls, libraries, and laboratories.
• Healthcare Environments: Suitable for administrative areas, waiting rooms, and patient rooms where organized cable management is crucial (always verify specific healthcare regulations).
• Public and Administrative Buildings: Offering a standardized and professional solution for cable routing in government offices and public institutions.
• Any Application Requiring Integrated Device Mounting: Perfect for installations that need to combine power outlets, network sockets, USB charging ports, HDMI, and other multimedia connections directly within the trunking system.

Tips

• System Planning: Before installation, meticulously plan the trunking layout. Account for all necessary device locations, corners, junctions, and terminations to ensure you order the correct quantities and types of trunking and fittings.
• Color Coordination: For the most professional finish, ensure all trunking sections and accessories (joint covers, end pieces, corners, etc.) are ordered in the same color variant (Pure White, Light Grey, or Jet Black).
• Cutting Trunking (PVC): Use a fine-toothed saw (e.g., coping saw) for clean, precise cuts on PVC trunking. Deburr cut edges for safety and a better fit with accessories.
• Secure Mounting: Utilize the pre-drilled perforations in the trunking base for direct and secure wall attachment. Select fasteners appropriate for the wall material.
• Accessory Installation:
  • GK-OTSA45 Joint Covers: Snap onto the trunking cover to conceal cuts and create seamless transitions to Modul 45 devices or other cover segments.
  • GK-KS45-1 Connectors: Slide onto the ends of trunking bases before mounting to create a secure and neat joint between base segments. Note system compatibility for 130mm systems may require GK-KS45-2 type connectors.
  • Hood Fittings (Corners, T-Pieces, Flat Angles): These generally attach over the cut trunking ends, often securing to both the trunking and sometimes requiring an additional wall fixing point (as shown for flat angle hoods GK-FH type).
• Modul 45® Device Installation: These devices are designed for tool-free click-in installation directly into the trunking cover openings or via specific adapters, streamlining the device mounting process.
• Cable Separation: When running power cables alongside data or communication lines, always use the GK-TW53 internal partition to prevent electromagnetic interference and comply with relevant regulations. The GK-53130 is a 2-compartment system designed for this.
• Handling Cut Edges: All accessories are designed to conceal cut edges of the trunking, ensuring a safe and visually appealing installation.
• Temperature Considerations: Adhere to the permitted temperature ranges for both PVC trunking and PC/ABS accessories to ensure long-term performance and material integrity.
