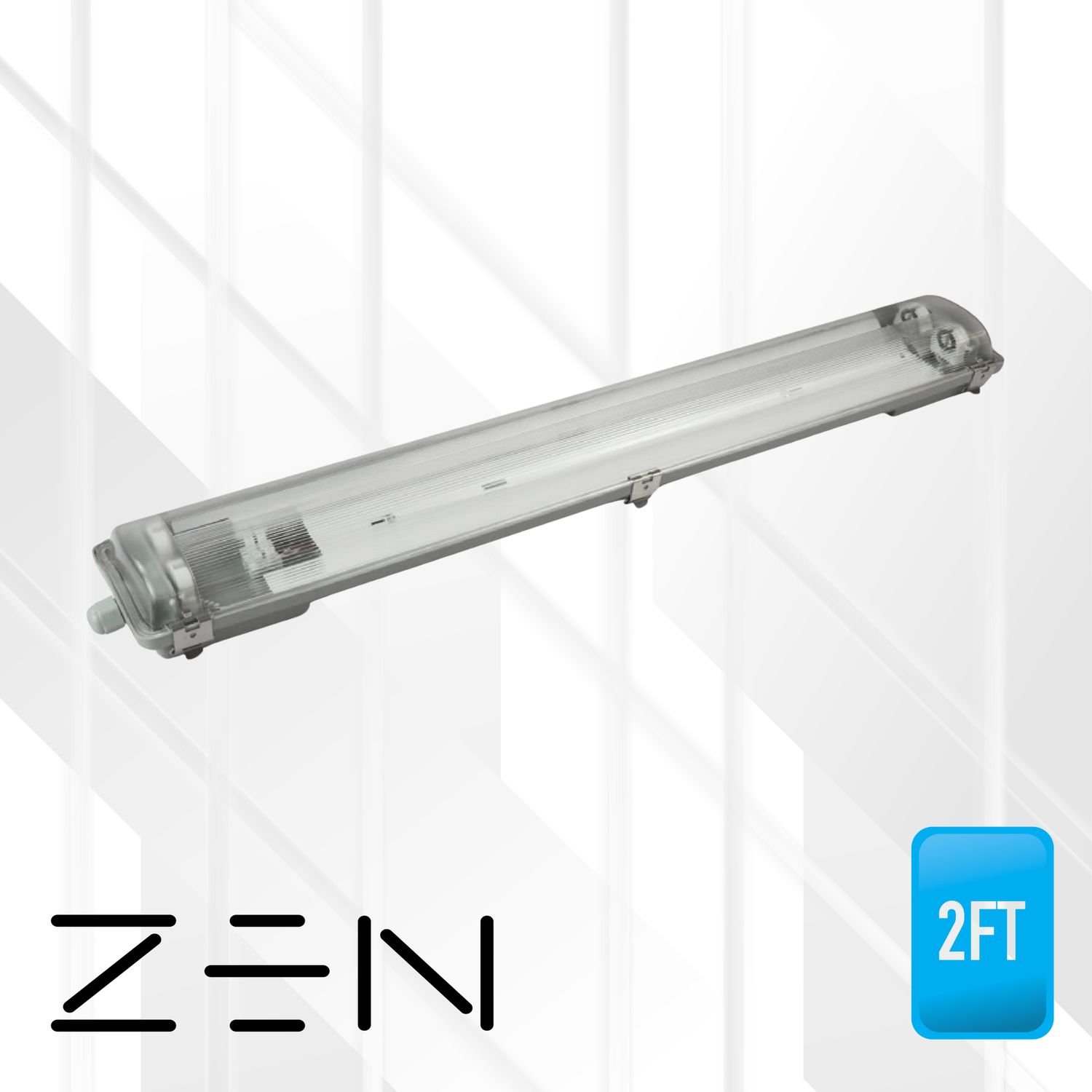

ZEN Tri-Proof 2xT8 PC FX for LED

• The ZEN IP65 Tri-proof Fixture offers a robust and versatile lighting solution designed to accommodate two T8 LED tubes (not included) in demanding environments.
• Available in 2ft (approx. 600mm - Code TF008), 4ft (approx. 1200mm - Code TF010), and 5ft (approx. 1500mm - Code TF012) lengths, these fixtures boast an IP65 rating, providing excellent protection against dust and water ingress.
• Their sleek and slim appearance is coupled with a durable anti-UV PC cover and ABS body, secured with 301 stainless steel clips.
• The prismatic polycarbonate diffuser is engineered to reduce glare from the LED tubes, ensuring comfortable and effective illumination.
• Ideal for both residential and commercial applications where durability and resistance to harsh conditions are paramount, the ZEN Tri-proof Fixture offers quick and easy installation via mounting clips or suspension and comes complete with an IP65 rated gland and knockout for series wiring.

Features

• Available in 2ft (Approx. 600mm - TF008), 4ft (Approx. 1200mm - TF010), and 5ft (Approx. 1500mm - TF012) Lengths: Provides flexibility to choose the appropriate size for various lighting needs.
• IP65 Rated: Offers excellent protection against dust and water ingress, making them suitable for demanding environments.
• Sleek and Slim Appearance: Features a modern and unobtrusive design.
• Weatherproof Body Pre-wired for Double T8 LED Tubes: Designed to house two T8 LED tubes (not included) with pre-existing wiring for easy installation.
• Anti-UV PC Cover and ABS Body: Constructed from durable and UV-resistant Polycarbonate (PC) and Acrylonitrile Butadiene Styrene (ABS) for longevity.
• 301 Stainless Steel Clips: Provides secure and corrosion-resistant mounting.
• Durable Prismatic Polycarbonate Diffuser: Engineered to reduce glare and distribute light evenly for comfortable illumination.
• Ideal for Use in Harsh Conditions: Features a non-corrosive housing suitable for cold rooms and other demanding environments.
• Quick and Easy Installation: Can be mounted via mounting clips or suspension.
• Comes Complete with an IP65 Rated Gland and Knock-out: Allows for secure and weatherproof electrical connections and facilitates series installations.
• 1 Year Warranty: Provides peace of mind regarding the product's quality and reliability.
• White Reflector Enhancing Brightness: The internal white reflector optimizes light output from the LED tubes.
• Designed for Single Side Power LED T8 Tubes Use: Compatible with single-ended power T8 LED tubes.

Benefits

• Ideal for Demanding Environments: The IP65 rating and robust construction make them perfect for areas with moisture, dust, and potential corrosion.
• Reduced Glare: The prismatic polycarbonate diffuser ensures comfortable and effective illumination without harsh glare.
• Energy Efficient (with LED Tubes): When used with T8 LED tubes, offers significant energy savings compared to traditional fluorescent fixtures.
• Long Lifespan (with LED Tubes): LED technology provides a longer lifespan, reducing maintenance and replacement costs.
• Durable and Robust: The high-quality materials ensure the fixtures can withstand demanding conditions.
• Easy Installation: The pre-wired design and flexible mounting options simplify the setup process.
• Versatile Applications: Suitable for a wide range of residential and commercial settings.
• Reliable Performance: Backed by a 1-year warranty.

Technical Specifications

Common Specifications

• IP Rating: IP65
• Housing Material: PC Cover + ABS Body + Stainless Steel Clips + White Reflector
• Lamp Type: Designed for Double T8 LED Tubes Use (Tubes NOT Included), Single Side Power
• Mounting Option: Surface or Suspension
• Warranty: 1 Year

Model Specific Specifications

ZEN IP65 Tri-proof Fixture - 2ft (TF008):

• Length: Approx. 600mm (684mm as per drawing)
• Dimensions: 684mm x 101mm x 57mm (as per drawing)
• Weight: 800g

ZEN IP65 Tri-proof Fixture - 4ft (TF010):

• Length: Approx. 1200mm (1290mm as per drawing)
• Dimensions: 1290mm x 101mm x 57mm (as per drawing)
• Weight: 1100g

ZEN IP65 Tri-proof Fixture - 5ft (TF012):

• Length: Approx. 1500mm (1590mm as per drawing)
• Dimensions: 1590mm x 101mm x 57mm (as per drawing)
• Weight: 1500g

Ideal Use

The ZEN IP65 Tri-proof Fixture in its various lengths (2ft, 4ft, and 5ft) is ideally suited for a wide range of residential and commercial applications where resistance to harsh conditions and reliable lighting are required, including:

• Garages and Workshops: Providing durable and bright lighting resistant to dust and moisture in spaces of varying sizes.
• Factories and Industrial Areas: Offering robust lighting solutions for demanding environments across different work zones.
• Warehouses and Storage Facilities: Providing reliable and energy-efficient general lighting for aisles and storage areas of different lengths.
• Parking Garages and Covered Outdoor Areas: Withstanding moisture and dust while providing ample illumination in various sections.
• Agricultural Buildings: Resistant to dust, moisture, and potential corrosion in different types of agricultural spaces.
• Food Processing Areas: Easy to clean and resistant to moisture in areas of various sizes.
• Cold Rooms and Refrigerated Areas: Designed with a non-corrosive housing suitable for low temperatures in different storage units.
• Car Washes and Maintenance Bays: Designed to withstand water and chemicals in various work zones.
• Under Eaves and Outdoor Covered Areas: Providing weatherproof lighting solutions for different lengths and applications.

Please Note: These fixtures are pre-wired for two T8 LED tubes. The T8 LED tubes are NOT included and must be purchased separately.

Ensure you select compatible single-sided power T8 LED tubes of the appropriate length (2ft, 4ft, or 5ft) for optimal performance and energy efficiency. Professional installation by a qualified electrician is recommended for safety.
