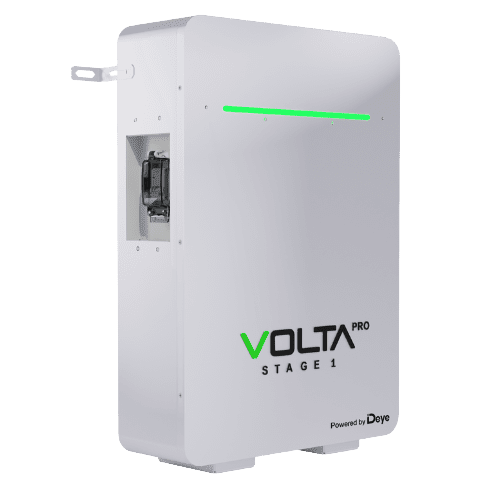

Volta PRO Battery Lithium Ion 5.3kWh 48V 100Ah - Stage 1 - 2nd Generation
SKU VOLTA-PRO-S1-51.2
R17 813.50
Price incl. VAT (15%) R2 323.50
Out of stock, available for pre-order
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Volta PRO Battery Lithium Ion 5.3kWh 48V 100Ah - Stage 1 - 2nd Generation
Product Details
Brand: Volta
Weight: 46.00 kg
Volta PRO Battery Lithium Ion 5.3kWh 48V 100Ah - Stage 1
Safer
- Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long lifespan and high-energy density.
- Low Voltage safety connection.
Flexible
- Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 170kWh.
- Suited to residential and commercial applications for increasing the self-consumption ratio.
High performance
- Support 1C/1C continual charge and discharge.
- 6000 cycles at 90% DOD, and 10 years standard warranty.
Convenient
- Battery module auto networking, easy maintenance, support Deye remotely monitoring and upgrade, support USB drive upgrade the firmware.
Reliable
- Built-in Intelligent BMS, providing complete protection.
- Natural cooling, IP20, wide temperature range: -20℃ to 60℃.
Eco-Friendly
- Use environmental protection materials, the whole module non-toxic, pollution-free.
Volta Pro Parameters
| Product Model | VOLTA PRO STAGE 1 | |
| Nominal Energy (kWh/ | 5.32 | |
| Nominal Voltage (V) | 51.2 | |
| Capacity (Ah) | 104 | |
| Battery Chemistry | LiFePO4 | |
| Operating Voltage(V) | 43.2 – 57.6 | |
| Recommend Depth of Discharge | 90% | |
| Usable Energy (kWh) | 4.79 | |
| Charge/Discharge Current | Recommend | 50 |
| Max. | 100 | |
| Peak | 150 (2mins, 250C) | |
| Scalability | Max. 32 pcs pack (Max.170kWh) in parallel | |
| Communication Port | CAN2.O, RS485 | |
| Cycle Life | ≥6000(25℃±2℃, 0.5C/1C, 90%DOD, 70%EOL) | |
| Master LED Indicator | LED(SOC:0%~SOC100%) | |
| IP Rating of Enclosure | IP20 | |
| Operating Temperature | Charge:0～55℃ / Discharge:-20℃～60℃ | |
| Storage Temperature | 0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Dimension (W/H/D, mm) | 440*620*150 | |
| Weight Approximate(kg) | 46 | |
| Installation | Floor-Mounted , Wall-Mlounted | |
| Warranty Period | 10 years | |
| Energy Throughput | 16MWh@70%EOL | |
| Certification | UN38.3,MSDS | |
| Compatible With Inverter Brands |
Deye, SUNSYNK, Voltronic Power, Victron energy, Growatt, SMA, LUXPOWER |
Battery Pack Accessories
| Model | Accessories Parts Description | Remark |
| H-Bracket | Battery Wall-Mounted Hanging Bracket and screws (Included) |
Used for battery fixing on the wall |
| B-Cable1000 | Battery Parallel Cable (Included) |
Battery power and communication parallel connection cable, and ground cable. |
| P-Cable1500 | Hybrid inverter Cable (Included) |
Battery power and communication cable connect with hybrid inverter. |
| Base | Battery Support Base and screws (Included) |
The Support base for battery floor-mounted |
Model: H-Bracket
Details: Simple wall hanging support, included 8 pcs
M6 screws, 4 sets of M6 expansion screws.
Model: B-Cable1000
Details: Pair of 1000mm 4AWG Power cable (Both ends are M8 copper terminals),
800mm RJ45 communication cable, and 1000mm 10AWG yellow-green ground cable for
battery parallel.
Model: P-Cable1500
Details: Pair of 1500mm 4AWG battery power cable (one end is M8 copper terminal,
the other end is M10 copper terminal) and 1500mm RJ45 communication cable connect
with hybrid inverter.
Model: Base
Details: Removable pair of battery support base for battery floor-mounted, included 8
pcs M6 screws, height is 20mm.
Battery Structure
Wall-mounted method
