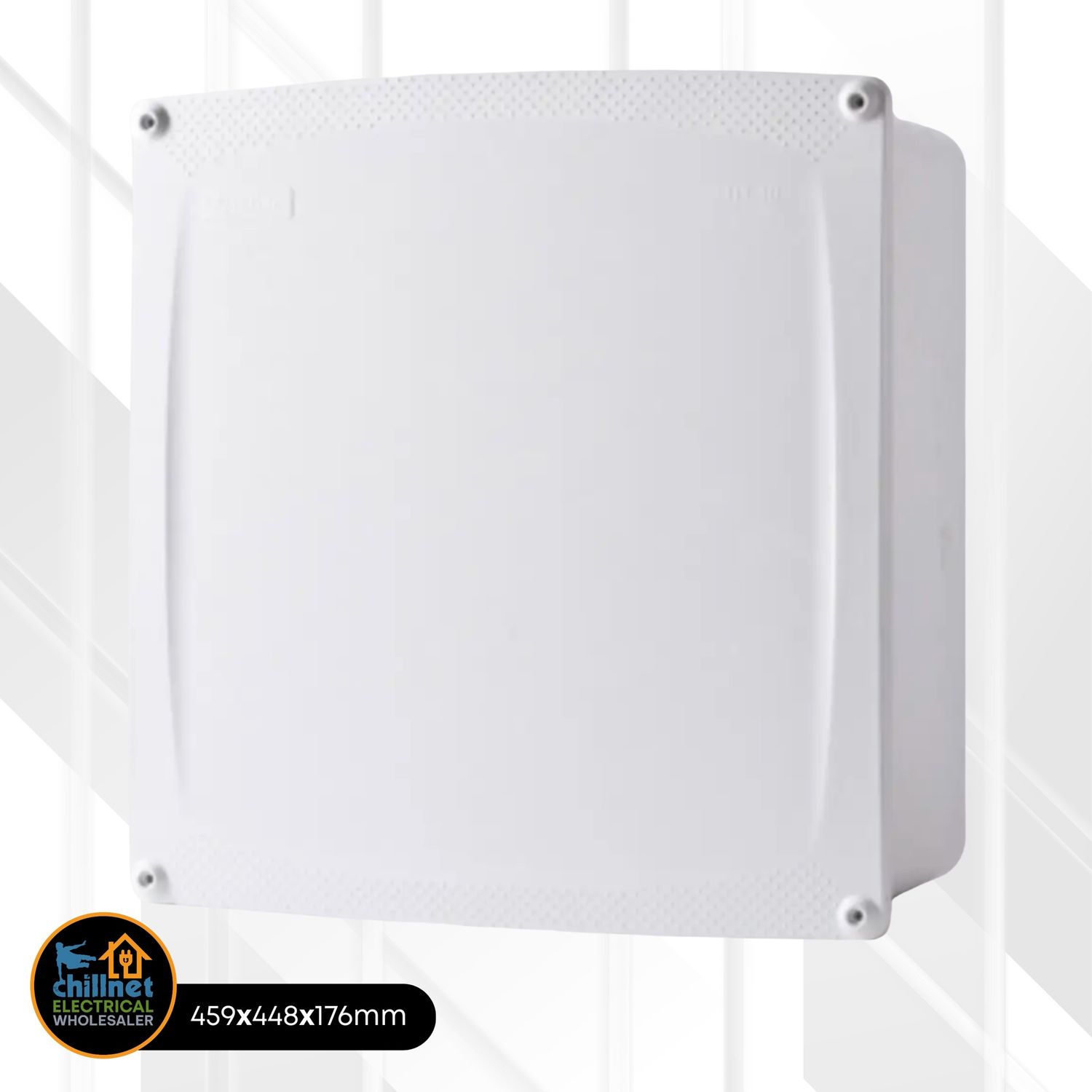

Utilec UT10 Screw Lid IP65 Enclosure (459x448x176)

• Experience exceptional durability and reliable protection with the Allbro Utilec® series of GRP (Glass Reinforced Polyester) enclosures, specifically the robust screw lid versions offering IP65 ingress protection.
• Constructed from high-performance Dough Moulding Compound (DMC), these enclosures are engineered to withstand harsh environmental conditions, including extreme temperatures (-50°C to +200°C) and prolonged UV exposure (25+ years lifespan).
• Featuring flame retardant and halogen-free properties, and available in 11 sizes, the Utilec® screw lid enclosures provide a secure and long-lasting housing solution for demanding electrical and electronic applications.

Features

• Material: GRP - Dough Moulding Compound (DMC)
• Lid Type: Screw Lid
• Ingress Protection: IP65 Rated (Dust-tight and protected against water jets)
• Impact Resistance: IK8 Rated
• Operating Temperature: Extremely wide range (-50°C to +200°C)
• UV Resistance: Exceptional longevity (25+ years expected life under direct exposure)
• Flammability: UL94 V0 Rated, Glow Wire Tested to 960°C
• Safety: Halogen-Free Material
• Sizes: Available in 11 versatile sizes
• Mounting: Optional External Mounting Feet available (Part No. UT-MF)
• Accessories: Compatible Device Plates (back panels) sold separately for easy component mounting (Part No. DEV-UTx)

Benefits

• Superior Durability: GRP (DMC) material offers outstanding resistance to impact, chemicals, and corrosion, ensuring a long service life even in aggressive environments.
• Reliable Sealing: The screw lid design achieves IP65 protection, effectively safeguarding internal components from dust ingress and water jets from any direction.
• Extreme Environment Suitability: Operates reliably across a vast temperature spectrum and withstands decades of UV exposure, making it ideal for challenging outdoor or industrial locations.
• Enhanced Safety: Meets high safety standards with UL94 V0 flame retardancy and halogen-free composition, reducing risks in case of fire.
• Impact Protection: IK8 rating provides robust defence against mechanical impacts.
• Flexible Installation: Optional external mounting feet allow for secure surface mounting without compromising the enclosure's IP rating by drilling.
• Organized Assembly: Optional device plates facilitate the neat and secure mounting of DIN rails, PCBs, and other equipment inside the enclosure.

Technical Specifications

General Specifications:

• Material: DMC (Dough Moulding Compound) - GRP
• IP Rating (Screw Lid): IP65
• IK Rating: IK8
• Operating Temperature: -50°C to +200°C
• Flammability Rating: UL94 V0
• Glow Wire Capability: 960°C
• Halogen Free: Yes
• Expected UV Life (Direct Exposure): 25 years +
• Lid Type: Screw Lid
• Standard Colour: Light Grey (Typical)

Dimensions and Part Numbers (Screw Lid Version - All dimensions in mm):

Available Accessories (Sold Separately):

• UT-MF: External Mounting Feet
• DEV-UTx: Device Plate / Back Panel (See table for specific P/N)
• Various Shroud Kits and DIN Rail Kits are also available (e.g., UT4-DIN, UT6-SAM, UT10-DIN, etc.) - check compatibility for specific enclosure size.

Ideal Use

• Outdoor electrical installations requiring high UV resistance and IP65 sealing.
• Industrial control panel housing in harsh or corrosive environments.
• Junction boxes in demanding applications (factories, processing plants, mines).
• Housing for instrumentation and monitoring equipment in extreme temperature locations.
• Telecommunication and utility applications needing long-term durability.
• Solar power component housing.
• Any application demanding a robust, non-metallic, IP65-rated enclosure with excellent environmental resistance.

Tips

• When ordering, ensure you specify the Screw Lid Part Number (e.g., 040-xxx) to receive the IP65 version.
• Always verify the internal dimensions (H1, W1, D1) against your components to ensure adequate space and clearance.
• For simplified surface mounting without drilling the enclosure, use the optional External Mounting Feet (UT-MF).
• To easily mount internal components like DIN rails or PCBs, purchase the corresponding Device Plate (DEV-UTx) listed for your enclosure size.
• Ensure lid screws are properly tightened to achieve and maintain the IP65 rating. Do not overtighten.
• The GRP material is easy to drill or machine for cable glands or component mounting if required, but consider using device plates to maintain maximum integrity.
