Universal Solar Panel Bracket MSteel

UNIVERSAL SOLAR PANEL BRACKET ASSEMBLY

• Robust and versatile galvanised mild steel
• Bracket suitable for mounting a variety of solar
• Panels between 20W and 150W in size.

This solar panel mounting bracket is robust and versatile. It is suitable for mounting a variety of solar panels between 20W and 150W in size, against a wall or on a post. The fixed bracket included with the kit provides limited orientation capability and can be pivoted in a number of ways in order for the panel to obtain optimum sunlight coverage.

Product Identification

1. Main Body
2. Base Mount
3. Clamp
4. Panel Mounting Plate

Parts List

Mounting Options

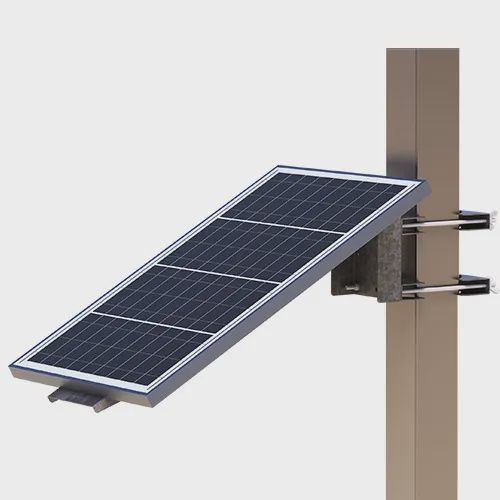

Vertical Pole Mount

This is the standard mounting position for solar panels. Due to the universal clamping system, the bracket can be mounted on a round or square pole in any orientation to fully utilize the power of the sun at any angle

Horizontal Pole Mount

Suitable for applications where the bracket needs to be mounted onto a horizontal pole, for example on a balcony. The universal clamp allows the panel to maximize the suns’s potential energy.

Wall Mount

In situations where the horizontal and vertical pole mount options are not viable, the bracket can be mounted to a wall, using coach screws or rawl bolts and the base plate for support.
