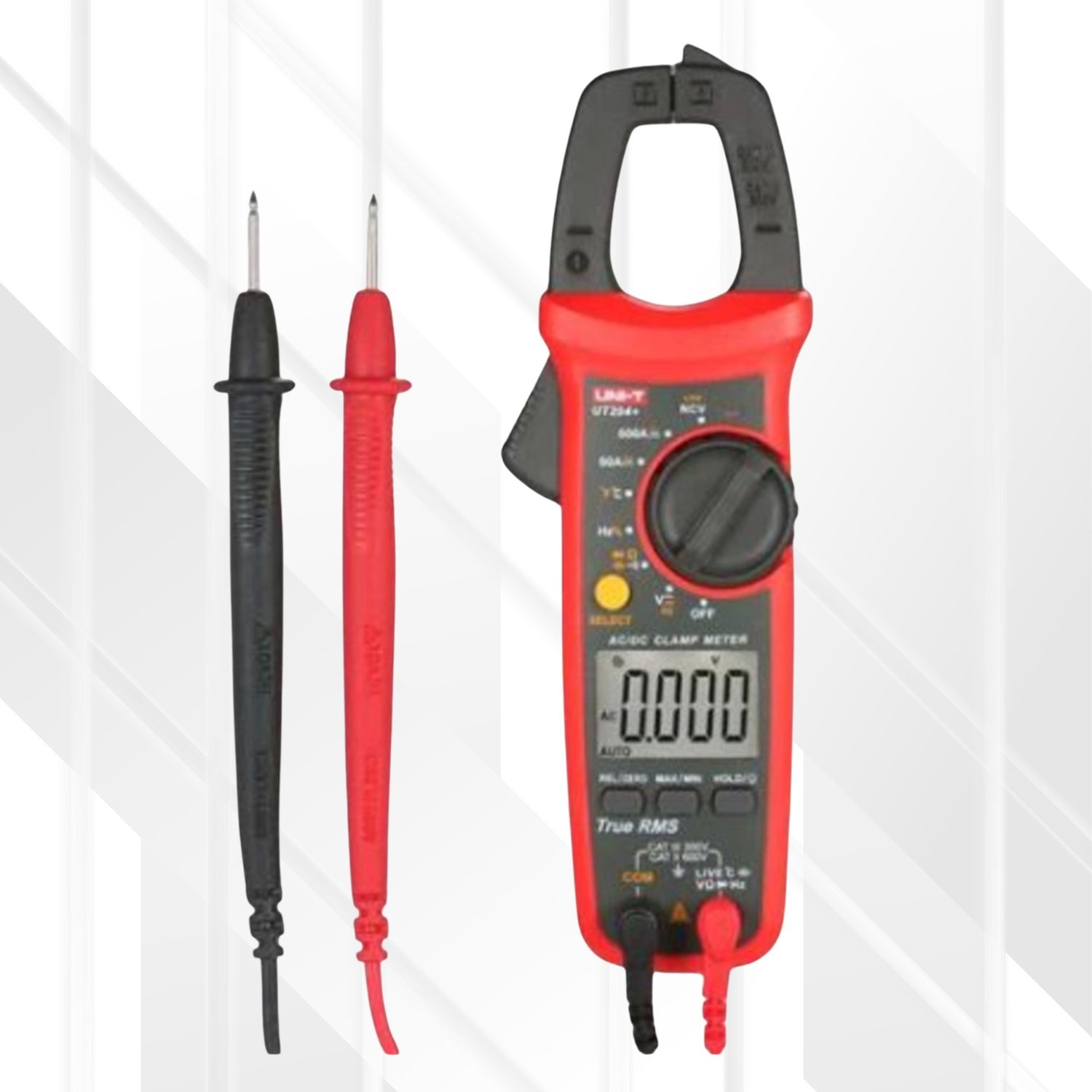

UNI-T Digital Clamp Meter 400-600A

The Uni-Trend UT204+ is a professional-grade clamp meter designed for accurate and safe electrical measurements. It features a 6000-count display, True RMS measurement for precise readings, and a comprehensive set of functions for various electrical tasks.

Key Features

• True RMS Measurement: Ensures accurate readings even in non-sinusoidal waveforms.
• 400A AC/DC Current Measurement: Measures both AC and DC current up to 400 Amps.
• Voltage Measurement: Measures AC/DC voltage.
• Resistance Measurement: Measures resistance values.
• Diode Test: Tests diodes for proper functionality.
• Continuity Test: Checks for continuity in circuits.
• Non-Contact Voltage Detection (NCV): Detects the presence of voltage without physical contact.
• Backlit Display: Easy to read in low-light conditions.
• Data Hold: Captures and holds measurements.
• MAX/MIN Recording: Records and displays maximum and minimum readings.
• Low Battery Indication: Alerts the user when battery power is low.
• Auto Power Off: Conserves battery power.
• Large Screen and Display Digits: Easy to read measurements.

Specifications (UT204+)

• AC Current: 400A ±(2%+10)
• DC Current: 600A ±(2%+5)
• AC Voltage: 600V ±(0.8%+5)
• DC Voltage: 600V ±(0.5%+2)
• Resistance: 40MΩ ±(0.8%+2)
• Capacitance: 40mF ±(4%+5)
• Frequency: 10Hz - 10MHz
• Temperature: -40°C to 1000°C
• Display Count: 6000
• Jaw Opening: 28mm
• Safety Category: CAT III 600V, CAT IV 300V

Benefits

• Versatility: Measures a wide range of electrical parameters.
• Accuracy: True RMS measurement ensures accurate readings in various conditions.
• Durability: Robust construction for long-lasting performance.
• Ease of Use: User-friendly interface with clear display and intuitive operation.
• Safety: CAT III 600V safety rating for user protection.
