UNI-T Clamp Meter TRMS 600A AC 1000V DC

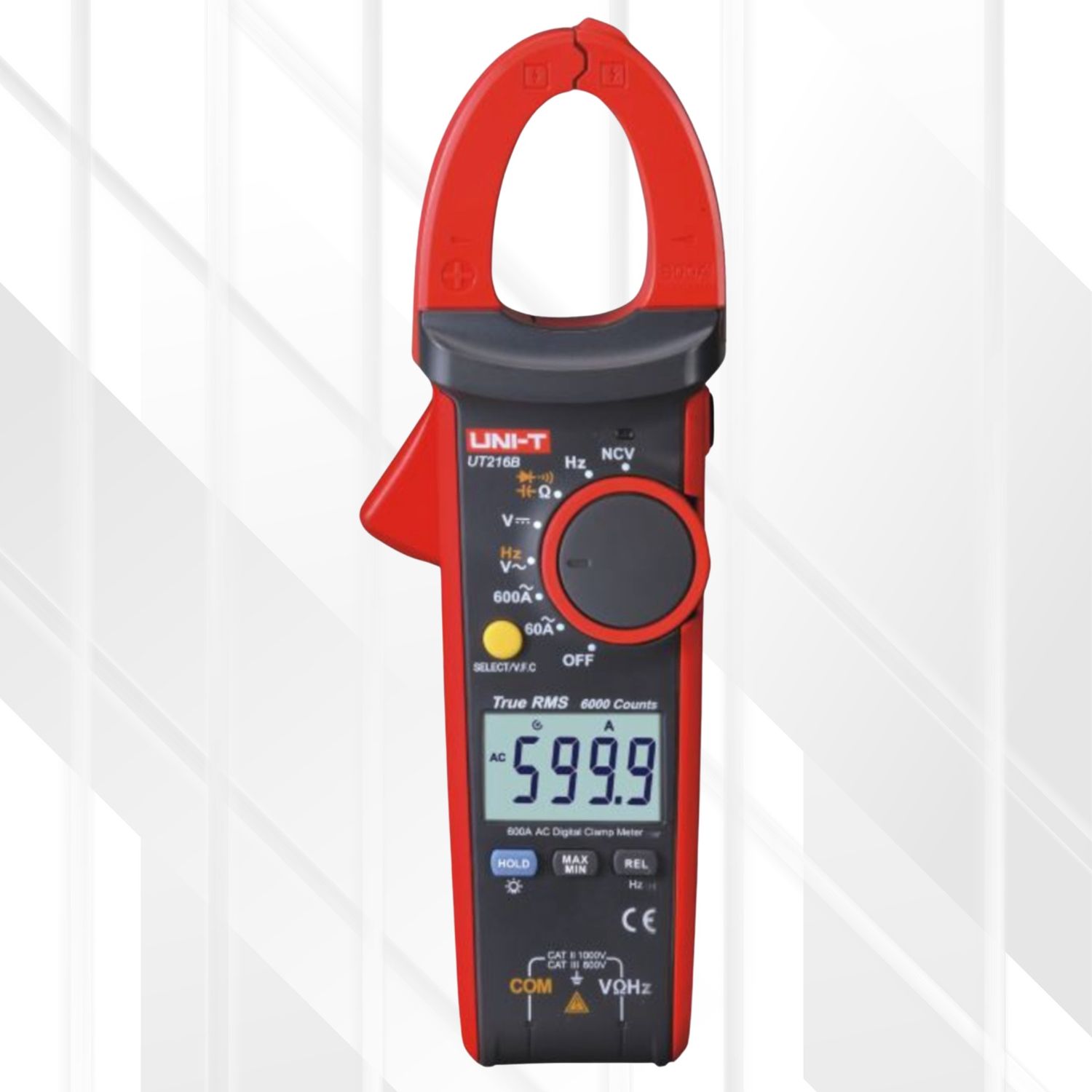

The Uni-Trend UT216B is a professional-grade clamp meter specifically designed for measuring high-frequency currents (up to 400Hz) in applications like railways, aerospace, server rooms, and IT systems. With its 6000-count display, True RMS measurement, and durable construction, the UT216B delivers accurate and reliable readings in demanding environments.

Key Features

• True RMS Measurement: Ensures accurate readings even in non-sinusoidal waveforms.
• 600A AC/DC Current Measurement: Measures both AC and DC current up to 600 Amps.
• High-Frequency Current Measurement: Accurately measures currents up to 400Hz.
• Voltage Measurement: Measures AC/DC voltage.
• Resistance Measurement: Measures resistance values.
• Diode Test: Tests diodes for proper functionality.
• Continuity Test: Checks for continuity in circuits.
• Non-Contact Voltage Detection (NCV): Detects the presence of voltage without physical contact.
• Backlit Display: Easy to read in low-light conditions.
• Data Hold: Captures and holds measurements.
• MAX/MIN Recording: Records and displays maximum and minimum readings.
• Flashlight: Built-in flashlight for illumination in dark work areas.
• Auto Power Off: Conserves battery power.
• Low Battery Indication: Alerts the user when battery power is low.
• Continuity Buzzer: Audible signal for continuity checks.
• Durable Construction: Designed for rugged use in demanding environments.

Specifications (UT216B)

• AC Current (A): 600A ±(2.5%+5)
• DC Current (A): 600A ±(2.5%+5)
• AC Voltage (V): 750V ±(1.2%+5)
• DC Voltage (V): 1000V ±(0.8%+3)
• Resistance (Ω): 60MΩ ±(1%+2)
• Capacitance (F): 60mF ±(4%+5)
• Frequency: 10Hz - 1MHz ±(0.1%+4)
• Temperature (°C): -40°C to 1000°C ±(3%+5)
• Display Count: 6000
• Jaw Opening: 30mm
• Safety Category: CAT II 1000V, CAT III 600V
• Power: 1.5V battery (R03) x 3
• Product Net Weight: 231.7g
• Product Size: 220mm x 75mm x 40mm

Benefits

• Versatility: Measures a wide range of electrical parameters, including high-frequency currents.
• Accuracy: True RMS measurement ensures accurate readings in various conditions.
• Durability: Robust construction for long-lasting performance.
• Ease of Use: User-friendly interface with clear display and intuitive operation.
• Safety: Designed with safety features to protect the user.
