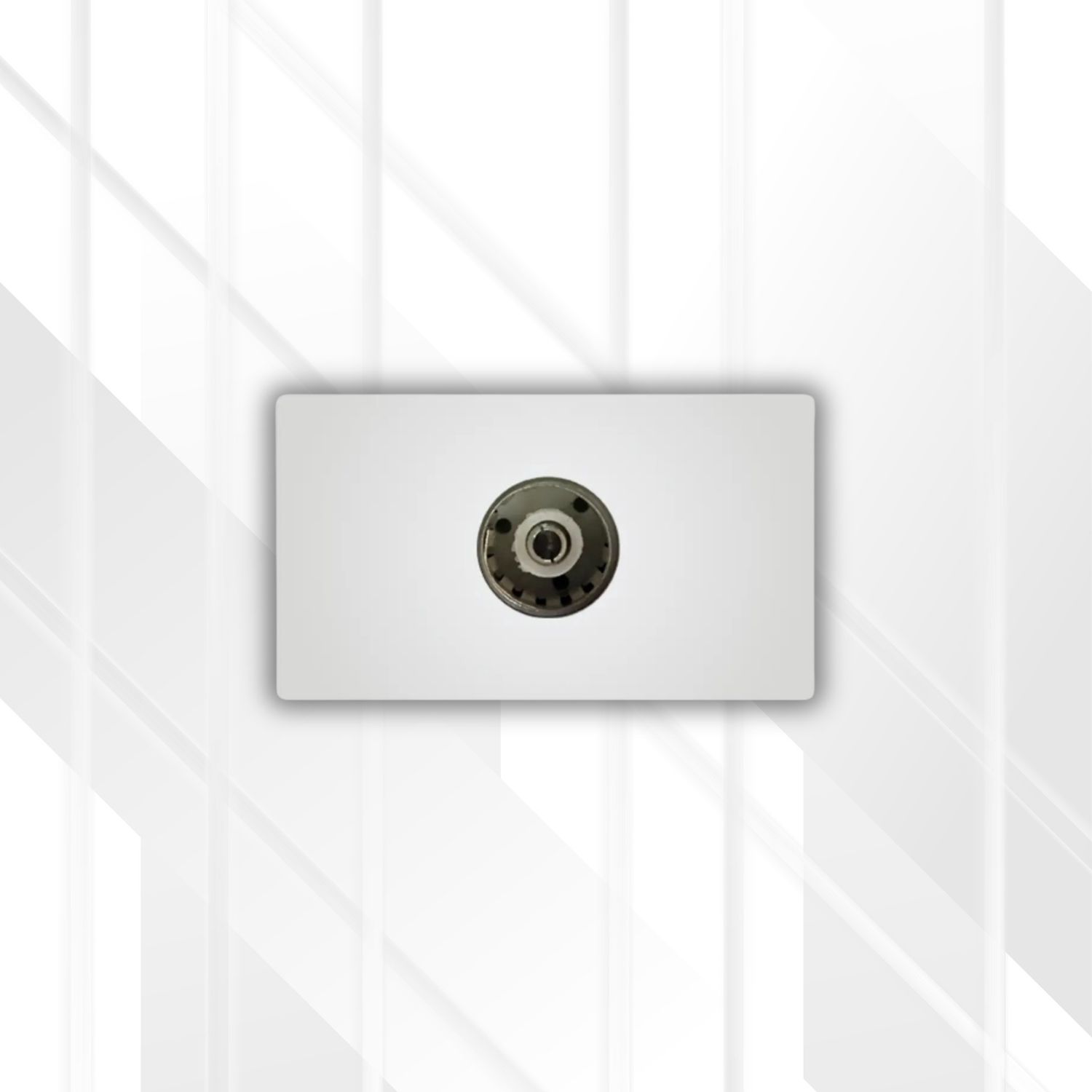

Trinity Television Module

• Provides a professional, reliable, and standards-compliant connection point for terrestrial (over-the-air) television aerial cables.
• Functions as a core AV component within the Trinity modular system, designed to clip securely into any compatible Trinity yoke.
• Features a high-quality Belling-Lee (PAL) connector, the universal standard for TV aerial connections in South Africa for services like SABC and eTV.
• Empowers the creation of fully customized, integrated multimedia panels by combining with satellite, data, or power modules.
• Delivers a neat, in-wall solution that eliminates messy, trailing cables, creating a clean and professional-looking entertainment area.
• Maintains the sleek and cohesive Trinity aesthetic, allowing your TV points to perfectly match your light switches and power outlets.

Features

• Belling-Lee (PAL) Connector: The industry-standard push-fit coaxial connector for terrestrial TV aerials, providing a simple and reliable connection.
• 75 Ohm Impedance: Correctly matched for standard TV coaxial cable (RG6U or RG59) to ensure optimal signal transfer and picture quality.
• Modular Component Design: A compact, self-contained TV socket designed to be clipped into any standard aperture in the Trinity range of yokes.
• Secure Clip-In System: Integrated clips lock the module firmly into the yoke with a positive click, ensuring a solid and stable installation that prevents cable strain.
• Durable Polycarbonate Casing: The module body is constructed from high-quality, impact-resistant polycarbonate for long-term durability.
• Universal Yoke Compatibility: Designed to fit any available slot on the Trinity 4x2 and 4x4 yokes, offering complete layout flexibility.
• Dual Colour Options: Available in classic White and modern Black Graphite to perfectly match corresponding yokes and cover plates.

Benefits

• Optimizes Picture Quality: A properly terminated, hard-wired connection minimizes signal loss and interference, resulting in a clearer, more stable picture for free-to-air channels.
• Creates a Professional, Clutter-Free Installation: Provides a neat, flush-mounted wall outlet, eliminating unsightly aerial cables running across the floor and creating a clean, organized look.
• Ultimate Customization: The modular design allows you to build the perfect media plate. Combine this TV module with a satellite socket for DStv and a data port for a smart TV, all within a single, elegant 4x4 yoke.
• Protects Cables and Connections: Enclosing the connection point within a wall box and faceplate protects the coaxial cable and connector from physical damage and accidental disconnection.
• Cost-Effective and Flexible: If your viewing habits change, you can easily swap this module for a different one without replacing the entire wall plate, saving time and money.
• Flawless Aesthetic Integration: The module is designed to perfectly match the look, feel, and ultra-slim profile of Trinity switches, ensuring a cohesive and high-end finish throughout your property.

In-Depth Technical Specifications

This module is the essential building block for creating professional and reliable terrestrial TV connection points. Below are its detailed technical specifications.

Product Specifications

Required Components for a Complete Unit

This is a module component and requires additional parts for a complete, functional installation:

• Trinity Yoke: A mounting frame (e.g., TS2011Y, TS2021Y, TS4041Y) that fits into the wall box.

Ideal Use

The Trinity Television Module is an essential component for any home or commercial space requiring a connection to a standard TV aerial.

• Living Rooms & Entertainment Centres: The primary application, providing the main connection point for your television's built-in tuner.
• Bedrooms & Guest Rooms: Perfect for creating secondary viewing points for free-to-air channels.
• Multi-Unit Dwellings: Ideal for distributing a single master antenna signal to multiple apartments or rooms.
• Commercial Spaces: Useful for reception areas, waiting rooms, and staff rooms where local news and channels are displayed.
• Hospitality: Provides a neat and reliable in-room aerial connection for hotel and guesthouse TV systems.

Tips

• This is a Module Only: You MUST purchase a compatible Trinity Yoke and a Trinity Cover Plate to create a complete wall outlet.
• Cable Type: For the best performance, ensure high-quality 75 Ohm coaxial cable (like RG6U) is used for the in-wall installation, running from the TV aerial to the location of this module.
• Correct Termination: The coaxial cable behind the wall plate must be correctly stripped and terminated with a male Belling-Lee (PAL) plug to connect to the back of this module. A poor connection here is a common source of picture quality issues like "ghosting" or "snow".
• Distinction from Satellite: This is a terrestrial TV aerial socket. For satellite services like DStv or Openview, you need the Trinity Satellite Module (TSMSAT), which uses a different threaded F-type connector. They are not interchangeable.
• Isolated Version: For installations with multiple TV points fed from an amplified distributor, the Trinity Isolated TV Module (TSMITV) may be required to prevent interference between TVs. Consult with your AV installer.
