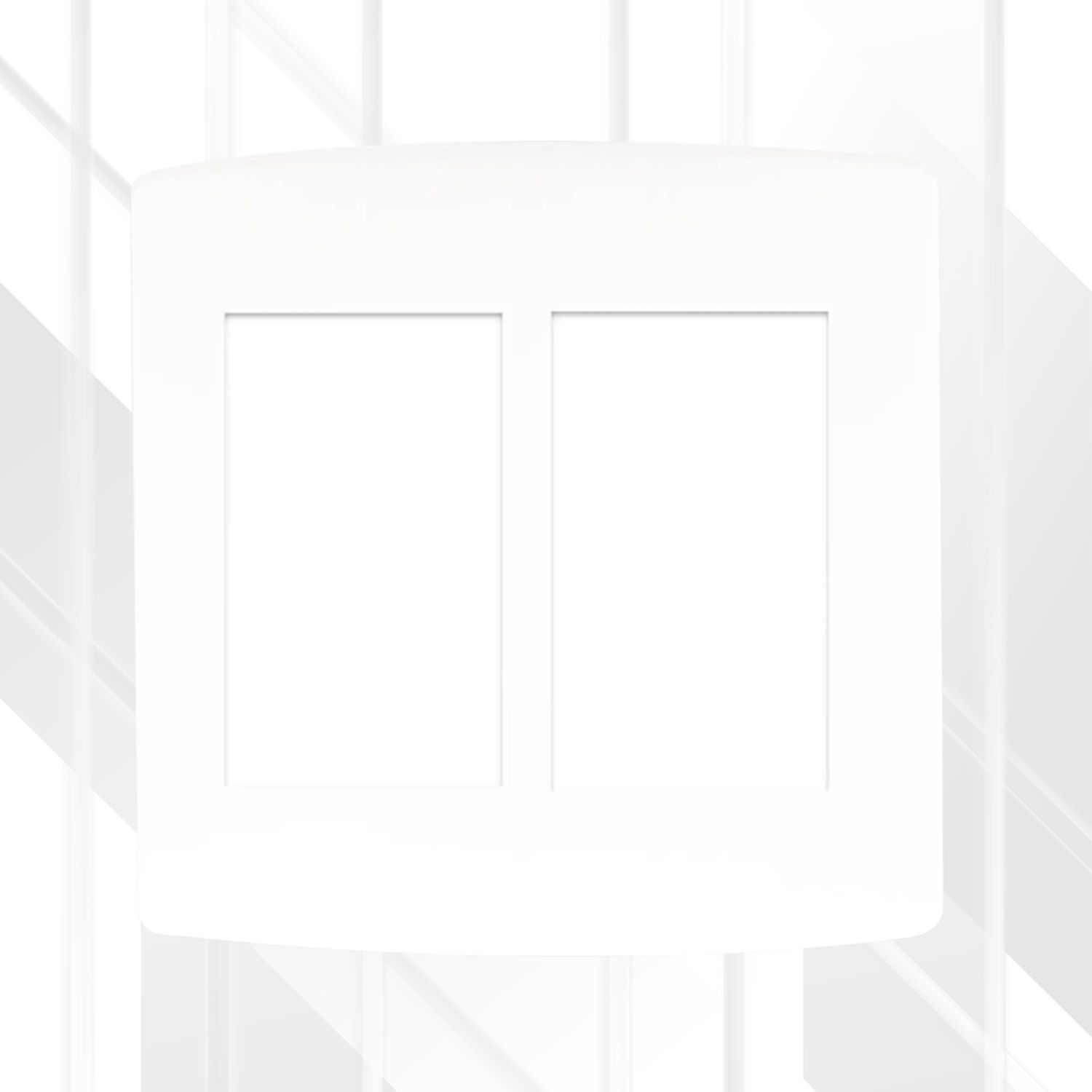

Trinity 6 Lever Yoke 4X4

• Provides the ultimate framework for creating high-density, centralized control stations within the Trinity modular wiring system.
• Functions as a robust 4x4 mounting frame, expertly engineered to securely house any six standard Trinity modules.
• Unlocks maximum customization potential, allowing for the creation of sophisticated, all-in-one panels for complex control scenarios.
• Serves as the essential foundation for a professional, consolidated, and aesthetically superior electrical installation in a 4x4 format.
• Constructed from high-grade, durable polycarbonate, ensuring all six modules are held in perfect alignment for a flawless finish.
• Offers a clean, elegant, and highly functional alternative to installing multiple separate switches, reducing wall clutter.

Features

• Hexa-Module Capacity: Features six precisely sized apertures designed to securely accommodate any six standard Trinity range modules.
• Standard 4x4 Footprint: Engineered to fit perfectly into all standard South African 4x4 (100mm x 100mm) electrical wall boxes.
• Robust Polycarbonate Construction: Manufactured from high-grade, impact-resistant, and UV-stabilised polycarbonate for exceptional structural integrity and longevity.
• Precision Clip-In System: Guarantees a firm and reliable connection, allowing six individual modules to be snapped into place effortlessly and securely.
• Complete System Compatibility: Exclusively designed for use with the comprehensive range of Trinity modular components.
• Sleek Design Integration: Forms the essential base for the Trinity range's signature slim 8.5mm profile when paired with a matching 6-lever cover plate.
• Colour Options: Available in both classic White and modern Black Graphite to match corresponding Trinity modules and cover plates.
• Compliance Assured: Forms part of a complete wiring system that conforms to SANS 60669-1 and SANS 60884-1 standards.

Benefits

• Ultimate Control Consolidation: The 6-lever yoke is the master of control density. Create a single command centre for an entire room, managing up to six different circuits for complex lighting scenes, power, and data.
• Superior Wall Aesthetics: Creates a clean, symmetrical, and highly professional look that is far superior to ganging multiple switches. It turns a control point into a sophisticated design feature.
• Simplifies Complex Wiring: Centralizing six control points into a single 4x4 box can help streamline the wiring layout and make future maintenance and troubleshooting more manageable.
• Cost-Effective and Future-Proof: The modular design allows you to change a single function in the future by simply swapping out one inexpensive module, rather than replacing a costly, custom-made switch plate.
• Guaranteed Professional Finish: Ensures all six modules are perfectly aligned and sit flush within the cover plate, eliminating any possibility of crooked or misaligned switches for a premium, high-end look.
• Unleashes Design Freedom: Liberates you from the constraints of pre-configured switches, allowing you to build the exact combination of controls required for any specialized application.

In-Depth Technical Specifications

This hexa-yoke is the structural backbone for creating the most comprehensive and powerful custom control panels. Below are its detailed specifications.

Product Specifications

Example Module Combinations

The Trinity 6 Lever Yoke 4X4 is perfect for creating powerful, all-in-one control stations:

• Standard Hexa-Switch: 6 x 1-Way Switch Modules (TSM001).
• Kitchen Command Centre: 4 x 1-Way Switches, 1 x Dimmer Module, 1 x Bell Press Module for an intercom.
• Home Theatre Control: 2 x Dimmer Modules for different lighting zones, 2 x 1-Way Switches for accent lights, 2 x Blanking Modules for future use.
• Master Suite Panel: 2 x 2-Way Switches for main/hallway lights, 2 x 1-Way Switches for bedside lamps, 1 x Fan Controller, 1 x USB Charger.
• Boardroom Hub: 4 x 1-Way Switches for lighting banks, 1 x Data Module, 1 x Telephone Module.

Ideal Use

The Trinity 6 Lever Yoke 4X4 is the ultimate solution for any project requiring six distinct control functions in a single 4x4 location.

• Open-Plan Living Areas: Create a master control panel for the lounge, dining, kitchen, and patio lighting from one central point.
• Home Cinemas & Entertainment Rooms: Build a dedicated panel to manage all aspects of the room's lighting and create perfect viewing scenes.
• Large Kitchens: The ideal solution for controlling the multiple lighting circuits found in modern kitchens (ceiling, under-cabinet, island, etc.).
• Commercial Boardrooms & Offices: Consolidate control for lighting, presentations, and data into one professional and easy-to-use panel.
• High-End Residential Projects: A popular choice in luxury homes where centralized control and sophisticated design are paramount.

Tips

• This is a Component: It is essential to understand that this is a mounting frame only. You MUST purchase six Trinity modules and one Trinity 6-Lever Cover Plate to create a complete, functional unit.
• Requires a 4x4 Wall Box: This yoke is designed for a square 4x4 (100x100mm) wall box and will not fit in a standard rectangular 4x2 box.
• Plan Your Wiring Carefully: Bringing six circuits into a single wall box requires neat and organized wiring. It is highly recommended to label all conductors to simplify the connection process.
• Confirm Secure Module Fit: When inserting each of the six Trinity modules, press firmly until you hear and feel a distinct 'click' to ensure it is securely locked into the yoke.
• Use Trinity Components Exclusively: For a guaranteed fit, flawless finish, and certified safety, only use Trinity range modules and Trinity 4x4 cover plates with this yoke.
