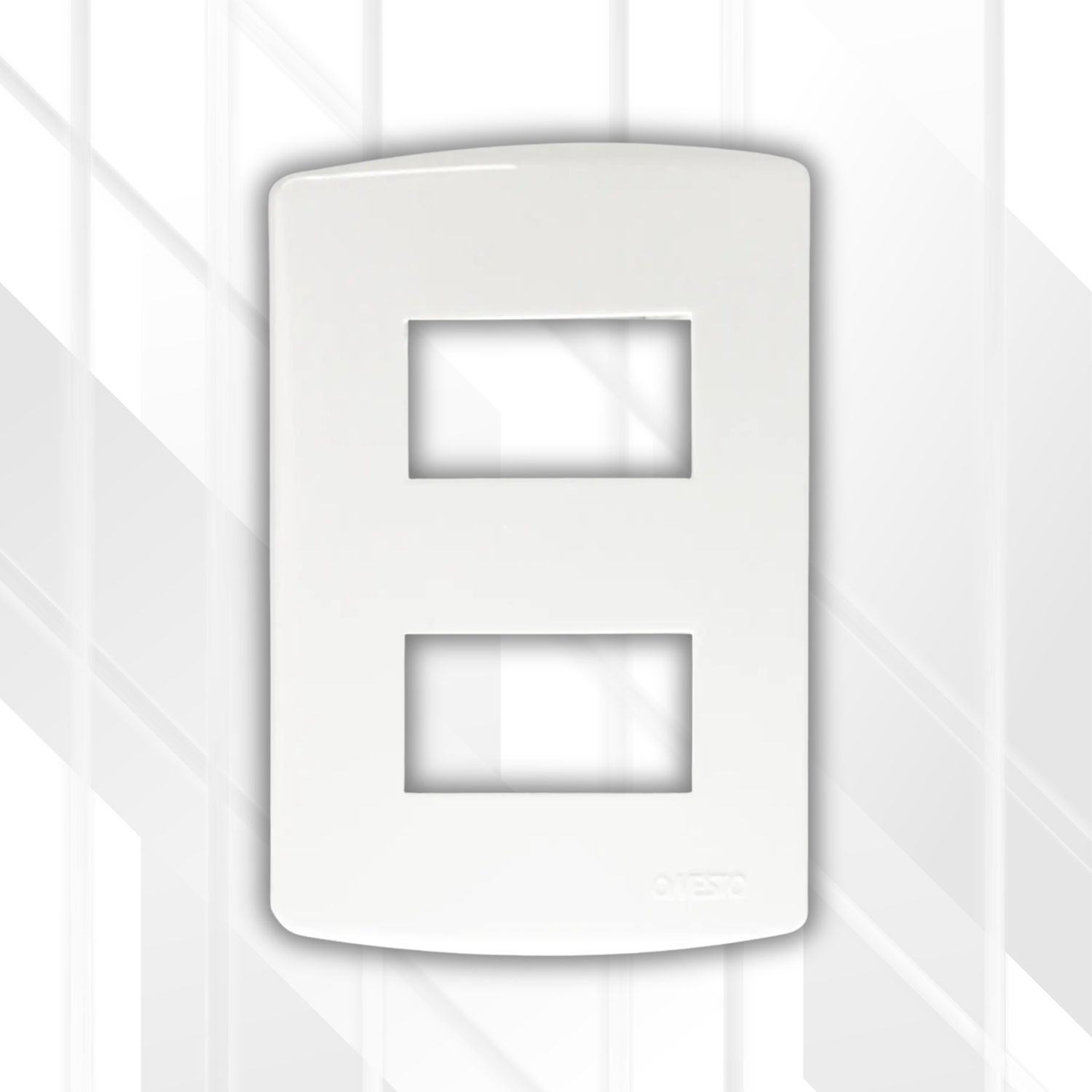

Trinity 2 Lever Yoke 4X2

• Provides the essential framework for creating customized, dual-function control points within the Trinity modular wiring system.
• Functions as a high-integrity 4x2 mounting frame, designed to securely house any two standard Trinity modules side-by-side.
• Unlocks powerful customization, allowing you to mix and match different modules like switches, dimmers, or data sockets in one plate.
• Engineered for a perfect, secure fit, it serves as the foundation for a professional, clean, and consolidated electrical installation.
• Constructed from high-quality, durable polycarbonate, ensuring modules are perfectly aligned and ready for a flawless cover plate fit.
• Replaces the need for two separate single switches, saving wall space and creating a more elegant and uncluttered aesthetic.

Features

• Dual Module Capacity: Features two precisely sized apertures to securely accommodate any two standard Trinity range modules.
• Standard 4x2 Footprint: Designed to fit perfectly into all standard South African 4x2 (100mm x 50mm) electrical wall boxes.
• Robust Polycarbonate Construction: Manufactured from high-grade, impact-resistant, and UV-stabilised polycarbonate for exceptional durability and longevity.
• Precision Clip-In System: Engineered for a firm and reliable connection, allowing two modules to be snapped into place effortlessly and securely.
• System-Wide Compatibility: Exclusively designed for use with the comprehensive range of Trinity modular components.
• Sleek Design Integration: Forms the base for the Trinity range's signature slim 8.5mm profile when combined with a matching 2-lever cover plate.
• Colour Options: Available in both classic White and modern Black Graphite to match corresponding Trinity modules and cover plates.
• Compliance Assured: Forms part of a complete wiring system that conforms to SANS 60669-1 and SANS 60884-1 standards.

Benefits

• Unmatched Customization: The ultimate benefit of the 2-lever yoke. Create the perfect combination for any room: a standard two-gang light switch, a light switch next to a fan controller, a switch and a dimmer, or even a socket and a USB charger.
• Space-Saving Efficiency: Consolidates two control functions into a single 4x2 wall box, eliminating the need for a second box and resulting in a cleaner, more minimalist wall appearance.
• Professional and Flawless Finish: Guarantees that both modules are perfectly aligned and sit flush within the cover plate, eliminating the risk of crooked switches for a truly high-end look.
• Cost-Effective Upgrades & Repairs: If one function needs to be changed (e.g., upgrading a switch to a dimmer), you only need to replace one inexpensive module, not the entire switch plate.
• Simplified Installation: The intuitive clip-in design drastically reduces the final assembly time for dual-control points.
• Guaranteed Aesthetic Consistency: Using the Trinity 2 Lever Yoke ensures a perfect, gap-free fit with Trinity modules and cover plates, maintaining the clean and cohesive aesthetic of the entire range.
• Future-Proof Your Installation: The modular design allows you to adapt your electrical points as your needs change, providing a flexible and scalable solution for any room.

In-Depth Technical Specifications

This dual yoke is the structural backbone for your custom modular switch assemblies. Below are the detailed specifications for the Trinity 2 Lever Yoke 4X2.

Product Specifications

Example Module Combinations

The true strength of the Trinity 2 Lever Yoke 4X2 is its versatility. You can create numerous functional combinations to suit any need, including:

• Standard Dual Switch: 2 x 1-Way Switch Modules (TSM001).
• Bathroom Control: 1 x 1-Way Switch Module (TSM001) + 1 x 1-Way Switch Module (TSM001) for light and fan.
• Bedroom Ambiance: 1 x 1-Way Switch Module (TSM001) + 1 x Dimmer Module (TSMDIMR).
• Modern Power Point: 1 x New ZA Socket Module (TSMP001E) + 1 x 2A USB Module (TSMP001USB).
• TV Area Hub: 1 x TV Module (TSMTV) + 1 x Satellite Module (TSMSAT).
• Home Office: 1 x Telephone Module (TSMTEL) + 1 x Data Module (TSMDAT).

Ideal Use

The Trinity 2 Lever Yoke 4X2 is the ideal choice for any project requiring two control functions in a single 4x2 location.

• Residential Properties: Perfect for bathrooms (light/fan), kitchens (main light/counter light), and bedrooms (main light/bedside lamp control).
• Commercial Offices: Use for dual lighting zone control, or to combine a light switch with a data or telephone point in a custom panel.
• Hospitality Sector: Ideal for hotel guest rooms to combine lighting, power, and data in a neat, consolidated unit.
• Retrofitting and Upgrades: The perfect solution for replacing old, ganged single switches with a modern, integrated, and more aesthetically pleasing system.
• Custom Projects: Use in custom cabinetry, kitchen islands, or furniture where integrated dual controls are required.

Tips

• This is a Component: Remember, this product is a mounting frame only. You MUST purchase two Trinity modules and one Trinity 2-Lever Cover Plate to create a complete, functional unit.
• Plan Your Combination: Before purchasing, decide on the two modules you wish to install to ensure they meet the functional requirements of the location.
• Confirm Module Seating: When inserting each Trinity module, press firmly until you hear and feel a distinct 'click'. This confirms the module is securely locked into the yoke.
• System Exclusivity: For a guaranteed fit, flawless finish, and certified safety, only use Trinity range modules and Trinity 4x2 cover plates with this yoke.
• Level Installation: For a perfectly flush and professional end result, always use a spirit level to ensure the yoke is mounted perfectly horizontally or vertically within the wall box before tightening the screws.
