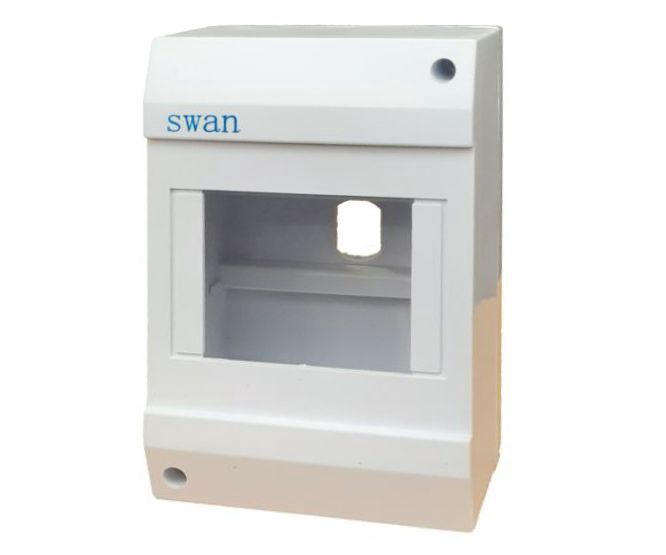

SWAN DB 4Way PVC Surface DIN

The HG series distribution box, model DB-HG4P, is a compact and high-performance industrial electrical enclosure specifically designed to house up to 4 pole circuit breakers and other modular DIN rail components.

This surface-mounted box offers a robust and protective housing for electrical distribution system components in various applications, from building electrical installations to industrial electrical circuits and house rebuild fitments.

Its well-engineered structure ensures reliable operation and protection of internal wiring and devices in a space-saving design.

Features

• Compact 4 Pole Design: Optimized to house 3 or 4 single-pole circuit breakers or equivalent modular devices.
• Easy to Install: Designed for straightforward surface mounting, simplifying the installation process.
• Excellent Structure and High Performance: Engineered for reliable and efficient protection of electrical components.
• Durable Material: Constructed from high-quality ABS plastic (as per the main HG series specifications).
• Flame Retardant Rating: Made with ABS - V1 rated material (as per the main HG series specifications), offering excellent flame resistance for enhanced safety.
• IP30 Protection Degree: Provides protection against solid objects larger than 2.5mm and vertically falling water drops (as per the main HG series specifications).
• Surface Mounted: Designed for direct installation onto flat surfaces.
• Optimized Dimensions: Length (L) of 86mm, Width (W) of 131mm, and Height (H) of 61mm, providing a compact yet sufficient space for up to 4 poles.
• Compliance Standard: Manufactured in accordance with IEC60439-3 standards (as per the main HG series specifications), ensuring quality and safety.

Benefits

• Protects Up to 4 Pole Electrical Components: Provides a secure and enclosed environment for multiple circuit breakers or similar devices, safeguarding wiring and devices from dust, accidental contact, and moisture.
• Ensures Safety: The flame-retardant material enhances safety in electrical installations.
• Simplifies Installation: The surface-mount design makes installation quick and easy, saving time and effort.
• Space-Saving Solution: The compact 4-pole design is ideal for installations with limited space requiring protection for multiple circuits.
• Durable and Reliable: The robust construction ensures long-term performance and protection.
• Versatile Application: Suitable for a range of electrical distribution needs requiring protection for up to 4 poles.
• Meets Industry Standards: Compliance with IEC60439-3 guarantees a high level of quality and safety.

Technical Specifications

• Series: HG Series
• Item Code: DB-HG4P
• Number of Poles: 3-4P
• Dimensions (mm):
  • Length (L): 86
  • Width (W): 131
  • Height (H): 61
• Material: ABS (as per main HG series)
• Flame Retardant Rating: ABS - V1 (as per main HG series)
• Protection Degree: IP30 (as per main HG series)
• Mounting Type: Surface Mounted
• Standard: IEC60439-3 (as per main HG series)

Ideal Use

• Small Distribution Boards: Ideal for creating small distribution boards for specific areas or circuits.
• Control Boxes: Suitable for housing control components requiring a compact and protected enclosure.
• Residential and Commercial Installations: Perfect for protecting a small number of circuits in homes, offices, or shops.
• Industrial Applications: Can be used for localized protection of control circuits or machine components.
• House Rebuild Fitments: Suitable for new electrical installations or upgrades requiring a compact 4-pole enclosure.

Note: This listing is for the DB-HG4P enclosure only. Internal electrical components such as circuit breakers, terminals, etc., are not included and must be purchased separately based on your specific application requirements. Ensure proper sizing and IP rating for your intended environment.
