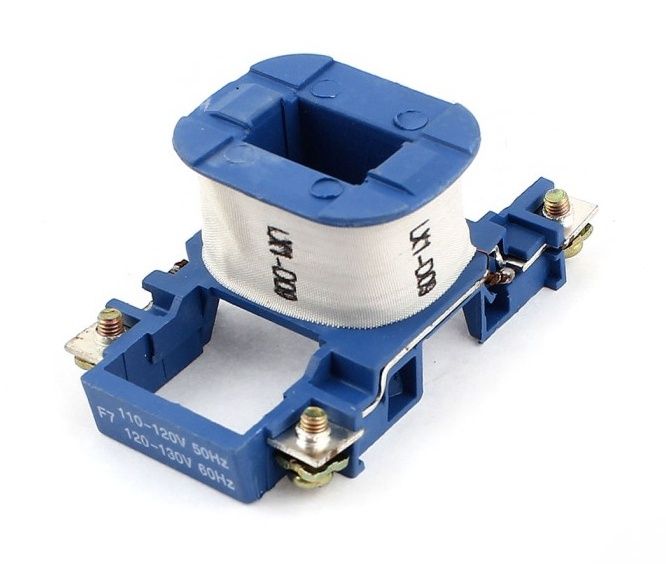

SWAN Contactor Coils For 25-32A

• Keep your essential Swan Electric contactors running smoothly with these genuine COC-D series replacement AC coils.
• Engineered specifically for the CJX2 (D-series) contactors rated 25A to 32A (models D25, D32), these coils offer an economical solution for repairing contactors with failed or incorrect voltage coils.
• Available in key AC voltages including 110V, 230V, and 400V (suitable for 415V systems), they are built with a robust flame-retardant housing and copper windings, ensuring dependable operation on both 50Hz and 60Hz power systems.

Features

• Genuine Swan Electric replacement coil.

• Compatibility: Precisely designed for CJX2 / D-Series models D25 and D32 (25A, 32A).

• Available Voltages: 110V AC, 230V AC, 400V AC.

• Operating Frequency: Dual rated for 50Hz and 60Hz.

• Construction: Flame retardant housing for safety.

• Windings: High-quality Copper.

• Simple replacement process.

Benefits

• Economical Maintenance: Enables replacement of only the coil, significantly cheaper than replacing the entire contactor.

• Rapid Repair: Quickly restores functionality to contactors with faulty coils, minimizing downtime.

• Assured Fit & Function: Guarantees correct electrical and mechanical compatibility with D25 and D32 contactors.

• Reliable Activation: Quality materials ensure consistent and dependable energization of the contactor.

• Safety Compliance: Utilizes flame-retardant materials for enhanced operational safety.

• Voltage Conversion: Allows easy modification of a contactor's operating voltage by swapping the coil.

Technical Specifications

Ideal Use

• Replacing burnt-out, damaged, or incorrect voltage coils in Swan Electric CJX2-D25 and CJX2-D32 contactors.

• Modifying the control voltage of existing D25 or D32 contactors.

• Stocking essential maintenance spares for equipment utilizing Swan Electric D25/D32 contactors.

• Use by electrical technicians, maintenance departments, and panel builders.

Tips

• Confirm Contactor Model: Before purchasing, verify your contactor is specifically a Swan Electric CJX2-D25 or CJX2-D32 model.

• Match the Voltage: Ensure the coil voltage (110V, 230V, 400V AC) matches your control circuit voltage exactly.

• Prioritize Safety: Always de-energize and lock out all power sources (power and control) before attempting coil replacement.

• Proper Installation: Make sure the coil is fully seated in the contactor's core assembly and any terminal connections are secure.

• Diagnose First: If a contactor fails to operate, check for control voltage presence at the coil terminals (A1/A2) before condemning the coil. Other issues like mechanical faults can prevent operation.
