SWA 2.5MM 3CORE LH
SKU 16825
R51.77
Price incl. VAT (15%) R6.75
Out of stock, available for pre-order
1
Save this product for later
Customer reviews
No reviews yet. Only signed-in customers who bought this product can leave reviews. To leave a review, sign in
SWA 2.5MM 3CORE LH
Product Details
Brand: Alvern
Weight: 0.40 kg

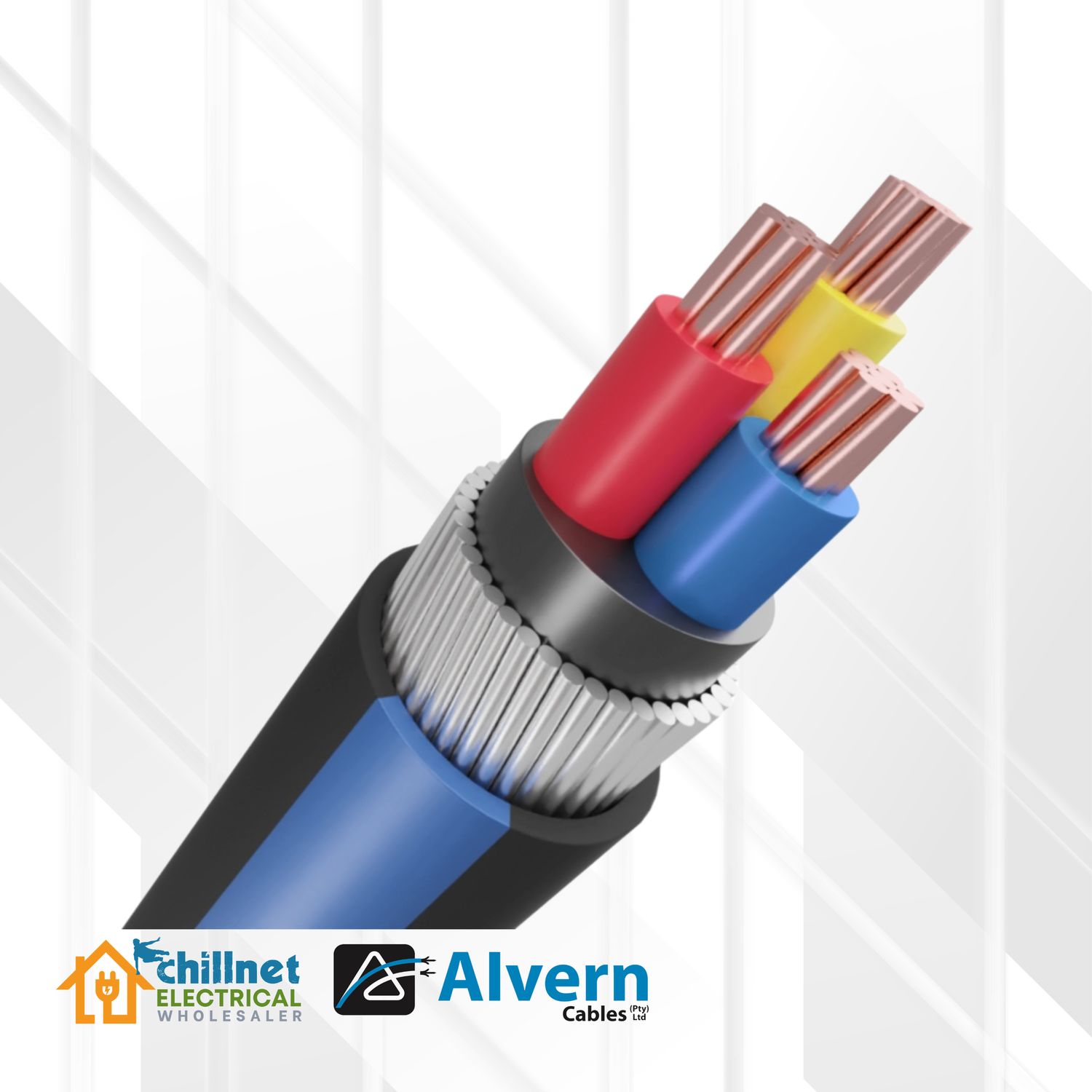

STEEL WIRE ARMOURED 2,3 & 4 CORE SWA CABLE LOW HALOGEN PVC
Construction
- High conductivity bunched, stranded copper conductors, insulated and colour coded with XPLE.
- Insulated cores are twisted and filled with a PVC bedding to give the cable a round finish.
- It is armoured with a galvanized steel wire.
- Final protection is tightly bonded, with a Flame Retardant, Low Halogen PVC.
Applications
- To supply power to all types of fixed installations.
- Suitable for use in ducts, racks and ladders as well as burial underground without further protection.
Specification (SANS 1507 - 3)
- Voltage Rating: 600/1000 Volts
- Test Voltage: 6000 Volts
- Temperature Range: -10° to +80°C
- Bending Raduis: 15 x Cable Diameter
- Protection: Steel wire armour
- Flexibility Class: 2
- Conductor Types: High conductivity annealed copper
- Insulation Material: PVC
- Sheath Material: Flame Retardant PVC / Low Halogen
- Sheath Colours: Black with Blue Stripe
Core Colours:
- 2 core - Red, Black
- 3 core - Red, Yellow, Blue
- 4 core - Red, Yellow, Blue, Black
Technical Data
