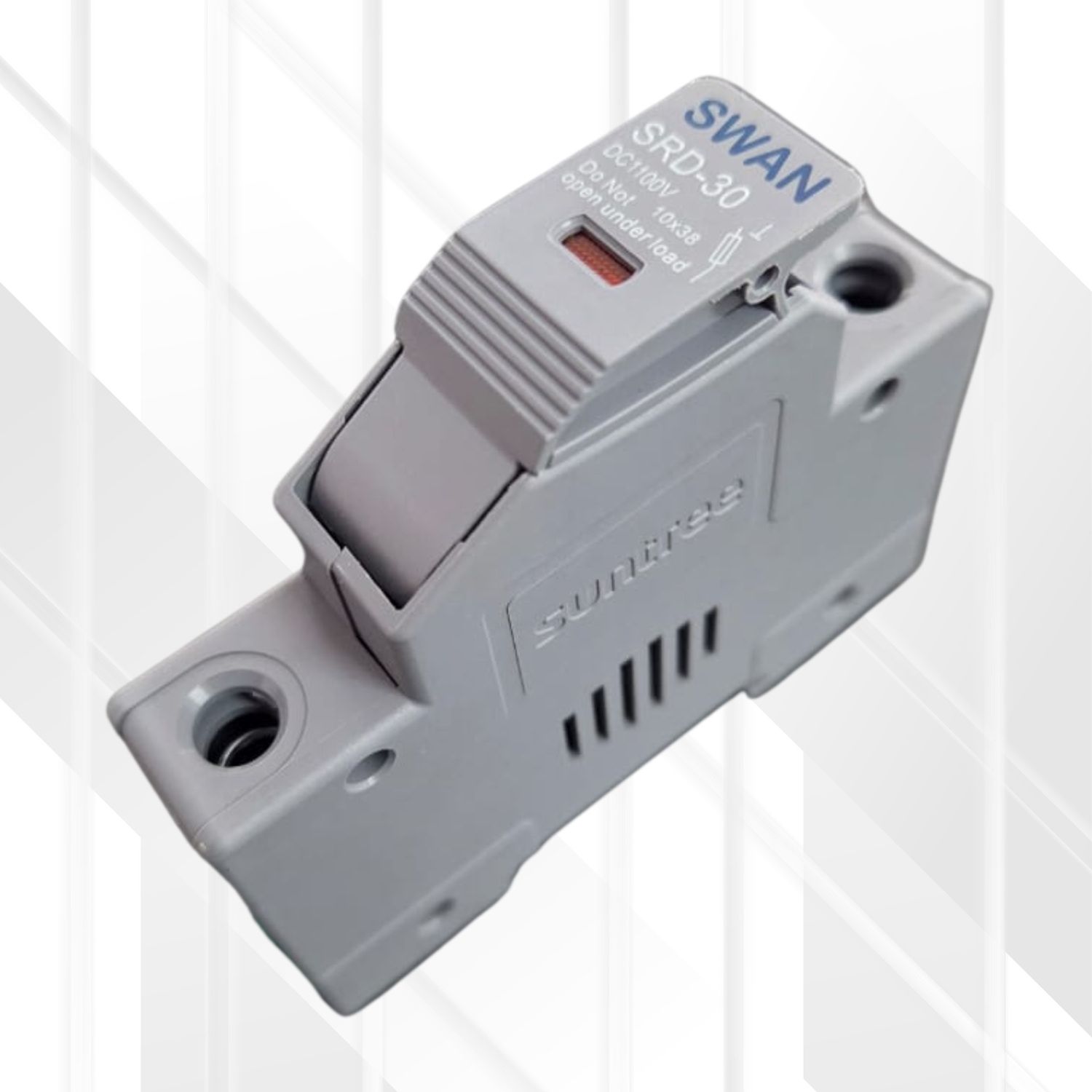

Suntree DC Fuse Holder 10x38mm

• The Suntree SRD-30 is a robust and reliable DC fuse holder designed to accommodate standard 10x38mm cylindrical fuses with current ratings ranging from 10 to 32 Amperes.
• Specifically engineered for photovoltaic (solar) and other DC applications, this fuse holder provides essential circuit protection against overcurrents, safeguarding valuable equipment and ensuring system safety.
• Its DIN rail mountable design allows for easy integration into existing electrical installations.

Features

• Accommodates 10x38mm cylindrical fuses.
• Current rating compatibility: 10A, 15A, 20A, 25A, and 32A.
• High breaking capacity for reliable overcurrent protection.
• Designed for DC applications.
• DIN rail mountable (35mm standard).
• Touch-safe design for enhanced user safety.
• Robust and durable construction.
• Clear indication of fuse status (when used with compatible fuses).
• Suitable for photovoltaic (solar) systems.

Benefits

• Reliable Overcurrent Protection: Safeguards your DC circuits and equipment from damage caused by overloads and short circuits.
• Wide Current Compatibility: Versatile design accepts a range of 10x38mm fuses from 10A to 32A, catering to various circuit requirements.
• Ensures System Safety: Prevents potential hazards and equipment failures in DC installations, particularly crucial in solar systems.
• Easy Integration: DIN rail mounting allows for quick and secure installation within standard electrical panels.
• Enhanced User Safety: Touch-safe design minimizes the risk of accidental contact with live parts during installation and maintenance.
• Long-lasting Performance: Robust construction ensures durability and reliable operation in demanding environments.
• Simplified Troubleshooting: Clear fuse status indication (with compatible fuses) allows for quick identification of blown fuses.
• Optimized for Solar Applications: Specifically designed to meet the protection needs of photovoltaic systems.

Ideal Use

• Photovoltaic (PV) solar power systems (string protection, array protection).
• DC distribution panels.
• Battery storage systems.
• Uninterruptible Power Supplies (UPS) with DC components.
• Industrial DC control circuits.
• Electric vehicles and charging infrastructure (specific applications may vary).

Tips

• Select the Correct Fuse Rating: Always choose a 10x38mm fuse with the appropriate current rating for your circuit to ensure proper protection. Consult your system design specifications.
• Verify DC Voltage Compatibility: Ensure the SRD-30's rated DC voltage (1000V) is suitable for your application.
• Proper Installation: Mount the fuse holder securely on a standard 35mm DIN rail. Ensure proper wiring and tightening of terminal connections according to the datasheet.
• Regular Inspection: Periodically inspect the fuse holder for any signs of damage or overheating.
• Fuse Status Indication: Utilize compatible 10x38mm fuses with visual blown fuse indicators for easy troubleshooting.
• Consult Datasheet: For detailed technical information, wiring diagrams, and safety precautions, always refer to the official Suntree SRD-30 datasheet.
• Consider Environmental Conditions: Ensure the installation environment adheres to the specified ambient temperature and IP rating of the fuse holder.
