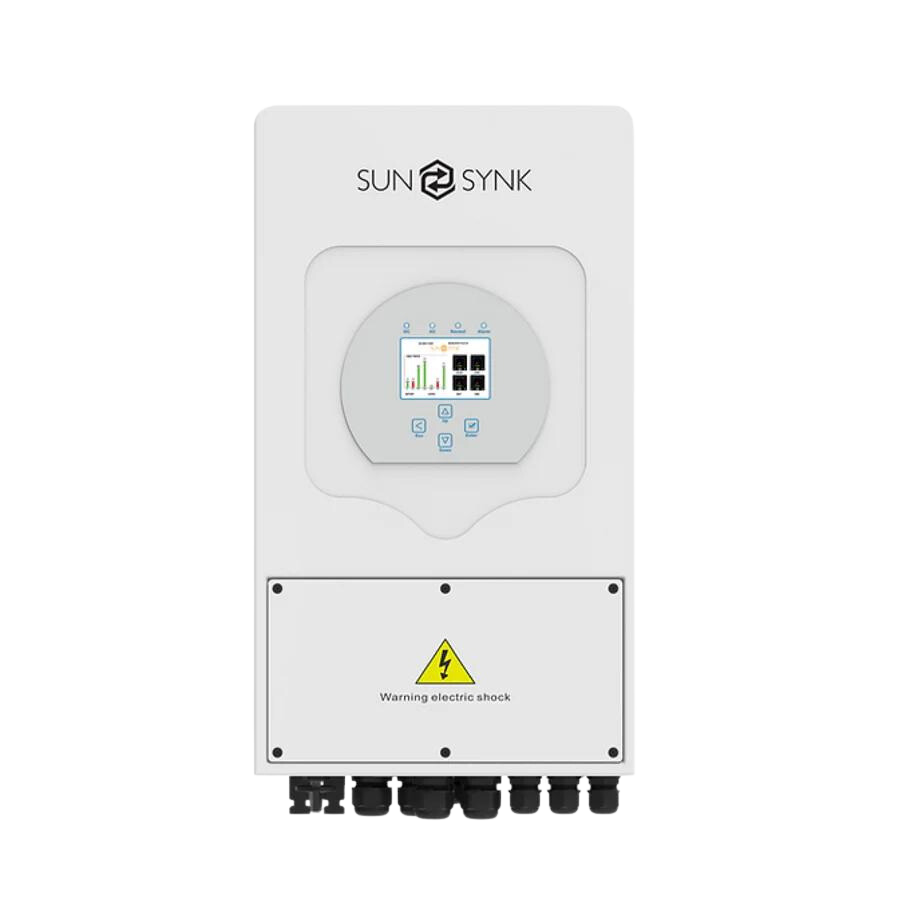

Sunsynk 5kW Hybrid Parity Inverter

Introduction

The Sunsynk Hybrid Parity Inverter Is A Highly Efficient Power Management Tool That Allows The User To Hit Those ‘Parity’ Targets By Managing Power Coming From Multiple Sources Such As Solar, Mains Grid And Generator And Then Effectively Storing And Releasing Electric Power As The Utilities Require.

Sunsynks Bi-directional Inverter

• Sunsynk and our partners have invented a new type of inverter, called a bi-directional inverter. It is a device that connects the battery and your mains AC connection.
• This allows you to fast charge a storage battery during the day when AC power is cheap, saving the excess power that you’re not using, so that you can use your stored power in the evenings when energy prices are higher.
• An additional device called a CT coil, which is included with the inverter, is used to detect any power that is not being exported and prevent it from feeding back to the mains.

Overview

Sunsynk 5kW Hybrid Parity Inverter

• 220V single phase, pure sine wave inverter
• Self consumption & feed-in to the grid
• Auto re-start while AC is recovering
• Programmable supply priority for battery or grid
• Programmable multiple operation modes; on-grid / off-grid & UPS
• Configurable battery charging – current / voltage based on applications by LCD setting
• Configurable AC / solar / generator charger priority by LCD setting
• Compatible with mains voltage or generator power
• Overload / over-temperature / short-circuit protection
• Smart battery charger designer optimised battery protection
• Limit-function installed to prevent excess power overflow to grid
• Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers
• Smart settable 3-stage MPPT charging for optimised battery performance
• Time of use function
• Smart load function
• Compatible with a wide range of lithium-ion and lead-acid batteries.
• Mobile App for monitoring.
• IP65 rated.
• Automatic switching from grid-tied to off-grid mode.
• Zero export power capability
• 16 x units can be paralleled in a single installation
• Essential and non-essential loads outputs.

Features

Interactiveƒ

• Easy and simple to understand display ƒ
• Supporting Wi-Fi or GSM monitoring ƒ
• Visual power flow screen ƒ
• Smart settable 3-stage MPPT charging for optimized battery performance
• Auxiliary load function
• Parallel / multi invert function grid-tied and off-grid

COMPATIBLE ƒ

• Compatible with main electrical grid voltages or power generators
• Compatible with wind turbines
• 220V single phase, pure sine-wave inverter ƒ
• Self-consumption and feed-in to the grid ƒ
• Auto restart while AC is recovering ƒ
• Auto earth bond feature (Via a relay)

CONFIGURABLE ƒ

• Fully programmable controller
• Programmable supply priority for battery or grid ƒ
• Programmable multiple operation modes: on-grid/off-grid & UPS ƒ
• Configurable battery charging – current/voltage based on applications by LCD setting ƒ
• Configurable AC / solar / generator charger priority by LCD setting

SECURE ƒ

• Overload/over-temperature/short-circuit protection ƒ
• Smart battery charger design for optimized battery protection ƒ
• Limiting function installed to prevent excess power overflow to grid

APPLICATIONS ƒ

• Marine (vessel power management) ƒ
• Power shedding (home/office/factory) ƒ
• UPS (fuel-saving systems) ƒ
• Remote locations with solar and wind generators ƒ
• Building sites ƒ
• Military locations ƒ
• Telecommunication

Remote monitoring with our Sunsynk Connect application.

• Sunsnyk Connect makes solar energy more accessible and user-friendly, allowing customers to take control of their energy usage and reduce their reliance on traditional energy sources. It is a testament to Sunsnyk’s commitment to innovation and customer satisfaction, and it sets the brand apart from others in the industry.
• This is a game-changer in the solar energy industry, making it easier and more convenient than ever for customers to harness the power of the sun and take control of their energy usage.
• Have the ability to monitor, change parameter settings, force out software updates and more, from anywhere in the world provided that you have an internet connection.
• The Sunsynk data logger not only has Wi-Fi compatibility, but we also offer a Wi-Fi and Ethernet (Rj45) version for those of you who aren’t near enough to your Wi-Fi access point to get a strong enough connection.

General Data

Sunsynk 5kW Hybrid Parity Inverter

• Start with UPS backup power (with batteries and inverter only) and add panels later.
• Start with Grid-tied (with panels and inverter only) and add batteries later.
• Install a complete Hybrid system including batteries and solar panels which can be expanded, or…
• Go totally off the grid with a completely independent system.

Ideal for powering TVs, decoders, computer equipment and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles and toasters.

• Cooling: Fan
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Weight (kg): 20.5
• Size (mm): 580 X 330 X 208mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years

Battery Input Data

Sunsynk 5kW Hybrid Parity Inverter

• Battery Type: Lead-acid or Li-lon
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 120A
• Max. Discharging Current (A): 120A
• Charging curve: 3 Stages/Equalization
• External Temperature Sensor: Optional
• Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

Sunsynk 5kW Hybrid Parity Inverter

• Max. DC Input Power (W): 6500W.
• PV input Voltage (V): 370V (100V-500V).
• MPPT Range (V): 125-425V.
• Start-up Voltage (V): 150V.
• PV Input Current (A): 11A + 11A.
• No. of MPPT Trackers: 2
• No. of Strings Per MPPT Tracker: 1+1.

AC Output Data

Sunsynk 5kW Hybrid Parity Inverter

• Rated AC Output and UPS Power (W): 5000W
• Max AC Output Power (W): 5500W
• Peak Power(off-grid): 2 times of rated power, 10 S.
• AC Output Rated Current(A): 21.7.4A
• Max.AC Current(A): 25A
• Max Continuous AC Pass-through(A): 35A.
• Output Frequency and Voltage: 50Hz; 240Vac,
• Grid Type: THD<3%(Linear load<1.5%).
• Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Basic Architecture

• The following illustration shows the basic application of this inverter.
• It also includes the following devices to have a Complete running system. ƒ
• Generator or Utility ƒ
• PV modules
• Consult with your system integrator for other possible system architectures depending on your requirements.
• This inverter can power all kinds of appliances in a home or one environment, including motor-type appliances such as refrigerators and air conditioners

Efficiency

Sunsynk 5kW Hybrid Parity Inverter

• Max. Efficiency: 97.60%
• Euro Efficiency: 96.50%
• MPPT Efficiency: 99.90%

Protection

Sunsynk 5kW Hybrid Parity Inverter

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti -islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output over Voltage Protection: Integrated

Certifications and Standards

Sunsynk 5kW Hybrid Parity Inverter

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC62109-1, IEC62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
