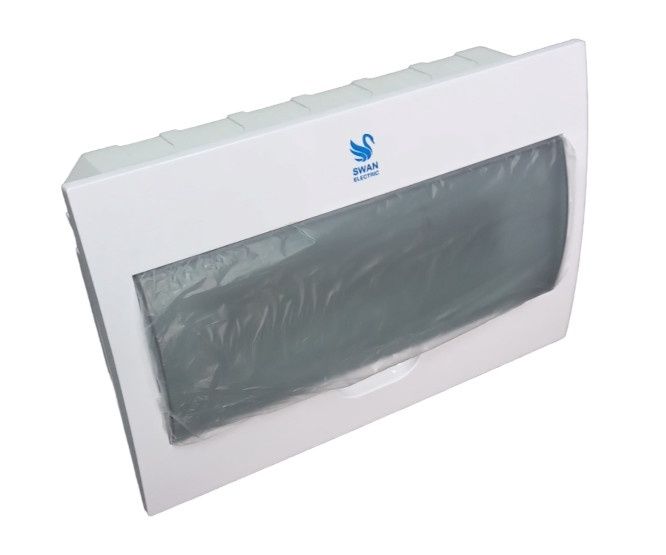

Standard DB 18Way PVC Flush DIN
SKU 14475
R299.90
Price incl. VAT (15%) R39.12
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Standard DB 18Way PVC Flush DIN
Product Details
Brand: SWAN ELECTRIC
Standard DB 18Way PVC Flush DIN
Please Note: The brand may vary between SWAN and S-TEC. The board's specifications and features remain similar, with the only difference being the printed logo.
- The Swan Electric ADD3 series distribution box offers a versatile and reliable enclosure for efficient terminal power distribution in low voltage networks across South Africa.
- Designed to house various modular electrical components (DIN rail mounted), the ADD3 series is ideal for residential, commercial, and light industrial buildings.
- Its key feature is the availability of both surface mount and flush mount options in a range of sizes, providing unparalleled installation flexibility to suit any building structure and aesthetic preference.
- Constructed from durable ABS plastic as standard, with a Polystyrene (PS) option available for surface mount models, the ADD3 series ensures a robust and organized solution for your electrical installations.
Features
- Modular Design: Compatible with standard DIN rail mounted electrical components.
- Surface Mount: Designed for easy mounting directly onto wall surfaces. Available in multiple sizes with ABS or optional PS material.
- Flush Mount: Designed to be recessed into walls for a sleek, integrated appearance. Available in multiple sizes with durable ABS construction.
- Multiple Sizes: Available in a comprehensive range of sizes to accommodate varying numbers of modules, catering to diverse electrical requirements (refer to the dimensions table below).
- IP40 Protection Degree: Provides protection against solid objects larger than 1mm and is not protected against water ingress, suitable for indoor and sheltered outdoor installations.
- Secure Enclosure: Protects electrical components from dust and accidental contact.
- Easy Access: Hinged cover allows for convenient access to internal components for installation and maintenance.
- Clean and Professional Appearance: Provides a tidy and organized housing for electrical installations, available in both surface and flush styles.
Benefits
- Ultimate Installation Flexibility: Choose between surface and flush mounting to perfectly match your building structure and desired aesthetic.
- Organized Power Distribution: Simplifies the management and maintenance of electrical circuits.
- Protection of Electrical Components: Shields devices from dust and potential damage, ensuring longevity and reliable operation.
- Safety: Encloses live electrical parts, reducing the risk of accidental contact.
- Scalability: A wide range of sizes ensures you can select the perfect enclosure for your current needs and future expansions.
- Durable and Reliable: Constructed from high-quality ABS plastic, with a PS option for surface mount, ensuring a long service life.
- Easy Maintenance: Provides convenient access to components for inspection and upkeep.
Technical Specifications
- Standard: IEC60439-3
- Protection Degree: IP40
- Mounting Type: Surface (PS suffix) & Flush (PF suffix)
- Material: ABS (Acrylonitrile Butadiene Styrene) standard, PS (Polystyrene) optional for Surface Mount
- Storage Temperature: -40°C ~ +75°C
- Ambient Temperature: -5°C ~ +40°C, Max 95% humidity
Dimensions and Terminal Arrangement
| ChillNet SKU | Length (L) mm | Width (W) mm | Height (H) mm | Terminal Arrangement |
|---|---|---|---|---|
| 21249 | 148 | 200 | 100 | 4+3+3 |
| 14326 | 184 | 200 | 100 | 4+4+3 |
| 14279 | 256 | 200 | 100 | 5+5+3 |
| 14615 | 312 | 200 | 100 | 6+6+4 |
| 21250 | 364 | 220 | 100 | 6+6+6 |
| 14371 | 270 | 325 | 100 | (6+6+6)x2 |
| 23086 | 270 | 460 | 100 | (6+6+6)x2 |
| 15143 | 143 | 200 | 85 | 4+3+3 |
| 14742 | 179 | 200 | 85 | 4+4+3 |
| 14497 | 258 | 200 | 85 | 5+5+3 |
| 14429 | 306 | 200 | 85 | 6+6+4 |
| 14475 | 365 | 217 | 85 | 6+6+6 |
| 23085 | 257 | 312 | 85 | (6+6+6)x2 |
| 14376 | 257 | 445 | 85 | (6+6+6)x2 |
Ideal Use
The Swan Electric ADD3 series distribution box, in both surface and flush mount options, is ideally suited for a wide range of low voltage terminal power distribution applications across South Africa, including:
- Residential Buildings: Providing a central housing for circuit breakers in homes, with options for surface or a more integrated flush finish.
- Commercial Buildings: Managing power distribution in offices, shops, and other commercial establishments, offering both installation styles.
- Small Industrial Units: Housing control and distribution components in light industrial settings, with choices for surface or flush mounting.
- Apartment Complexes: Providing individual distribution for each unit, accommodating different installation requirements.
- Renovation Projects: Offering flexible solutions for upgrading electrical distribution systems in existing buildings, with both surface and flush options available.
Choose the Swan Electric ADD3 series distribution box in the desired mounting style and size to ensure a safe, organized, and aesthetically appropriate solution for your electrical installations.
