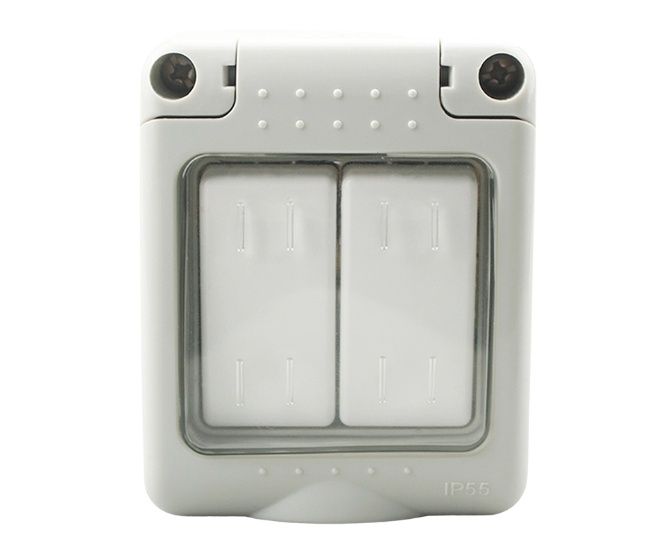

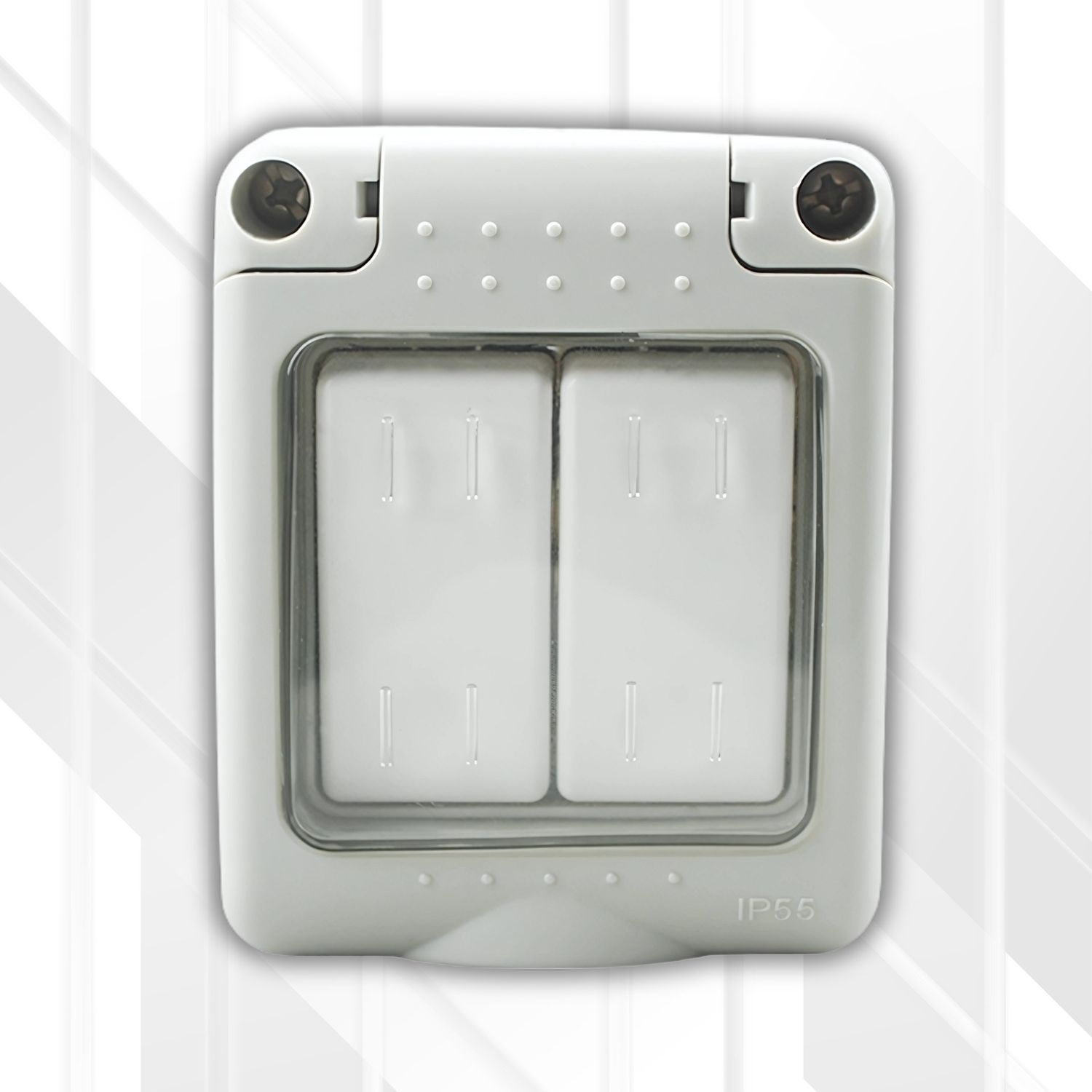

S-TEC Wall Surface Switch W/P 2 Lever 1 Way

• Introducing the S-TEC International range of switches and sockets, meticulously engineered to be "The Safe Option!" for all residential and commercial electrical installations.
• This comprehensive collection combines modern aesthetics with robust, high-quality construction to deliver unparalleled safety and reliability.
• The S-TEC weatherproof series extends this commitment to outdoor and demanding environments.
• This specific product, the S-TEC Weatherproof 1 Lever 1 Way Switch, is the definitive solution for providing safe and reliable switching of outdoor circuits.
• Housed in a durable, high-impact ABS enclosure with an IP55 rating, it is designed to withstand dust, rain, and splashes.
• Featuring a standard 16A 1-way switch mechanism and a secure, hinged cover, this weatherproof switch is the professional choice for controlling garden lights, pool pumps, and other outdoor electrical circuits.

Features

• IP55 Weatherproof Rating: The robust enclosure provides a high degree of protection against dust ingress and low-pressure water jets from any direction, making it safe for outdoor use.
• Dual 1-Way Switching: Features two independent 1-way switch mechanisms, allowing for on/off control of two separate circuits from one convenient location.
• Durable ABS Construction: Manufactured from high-impact and UV-stabilized ABS (Acrylonitrile Butadiene Styrene) material for superior durability and resistance to harsh weather conditions.
• Heavy-Duty 16 Amp Rating: Each switch is rated for 16 Amps, providing a robust and safe capacity for standard lighting loads and small motor loads like pumps.
• Secure, Hinged Cover: The protective cover is hinged for easy access and provides a seal to protect the internal switch mechanisms from the elements.
• Surface Mount Design: Designed for easy surface mounting on walls, posts, and other flat surfaces without the need for chasing into the wall.
• 2-Year Warranty: Backed by the S-TEC 2-year warranty, guaranteeing quality and reliable performance.

Benefits

• Provides Safe Outdoor Control: The IP55 rating ensures the switch is protected from the elements, significantly reducing the risk of electric shock and short circuits in outdoor or damp environments.
• Consolidated and Convenient Control: Allows you to control two separate outdoor circuits (e.g., patio lights and a water feature) right at the point of need, saving space and providing a cleaner installation than two separate switches.
• Built for Tough Environments: The high-quality ABS construction ensures the switch will not become brittle or degrade when exposed to sunlight and weather, providing a long service life.
• Simple and Robust Installation: The surface-mount design simplifies the installation process for electricians, making it a quick and effective way to add a dual outdoor control point.
• Peace of Mind: Using a purpose-built, SANS-compliant weatherproof switch is infinitely safer than using indoor-rated switches in unprotected locations.
• Protects the Switch Mechanisms: The hinged cover shields the internal switches from dust, dirt, and moisture, ensuring reliable operation for years to come.

In-Depth Technical Specifications

This section provides the detailed technical data for the S-TEC Wall Surface Switch W/P 2 Lever 1 Way.

Ideal Use

The S-TEC Weatherproof 2 Lever Switch is the essential component for safely controlling two separate power circuits in outdoor, damp, or dusty locations.

• Outdoor and Garden Lighting: Perfect for controlling two different zones of garden lights, for example, pathway lights on one switch and feature uplighters on the second.
• Pool and Patio Areas: Ideal for independently controlling a swimming pool pump and the separate pool light from a single, convenient location.
• Workshops and Garages: A robust solution for controlling the main workshop lights and a specific piece of machinery from the same panel.
• Combined Security Control: Can be used to control perimeter security lights and a gate motor from a single outdoor switch point.
• Agricultural and Industrial Areas: Suitable for use in barns, factories, and warehouses for controlling multiple circuits where protection from dust and splashing water is required.

Tips

To ensure a safe, correct, and compliant installation of your S-TEC Weatherproof Switch, please review the following critical expert recommendations.

• CRITICAL: MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN: Outdoor electrical wiring is subject to strict regulations (SANS 10142-1). Installation must be carried out by a certified electrician to ensure the circuit is properly protected by an earth leakage device and that all connections are safe and watertight.
• CRITICAL: USE CORRECT CABLE GLANDS: To maintain the IP55 rating, the electrician must use correctly sized, IP-rated cable glands for all cable entries into the switch enclosure. Failure to seal the cable entry points properly will compromise the unit's weatherproof integrity.
• CRITICAL: KEEP COVER CLOSED: The IP55 rating only applies when the hinged cover is securely latched shut. Always ensure the cover is closed after use to protect the internal components.
• Understanding IP55: This rating protects against limited dust ingress and low-pressure water jets from any direction (e.g., rain, sprinklers). It is not rated for protection against high-pressure jets or submersion in water.
• Mounting Location: Install the switch in a vertical position on a flat surface to ensure proper water runoff and seal integrity. Avoid locations where it may be subject to physical impact or prolonged submersion in standing water.
