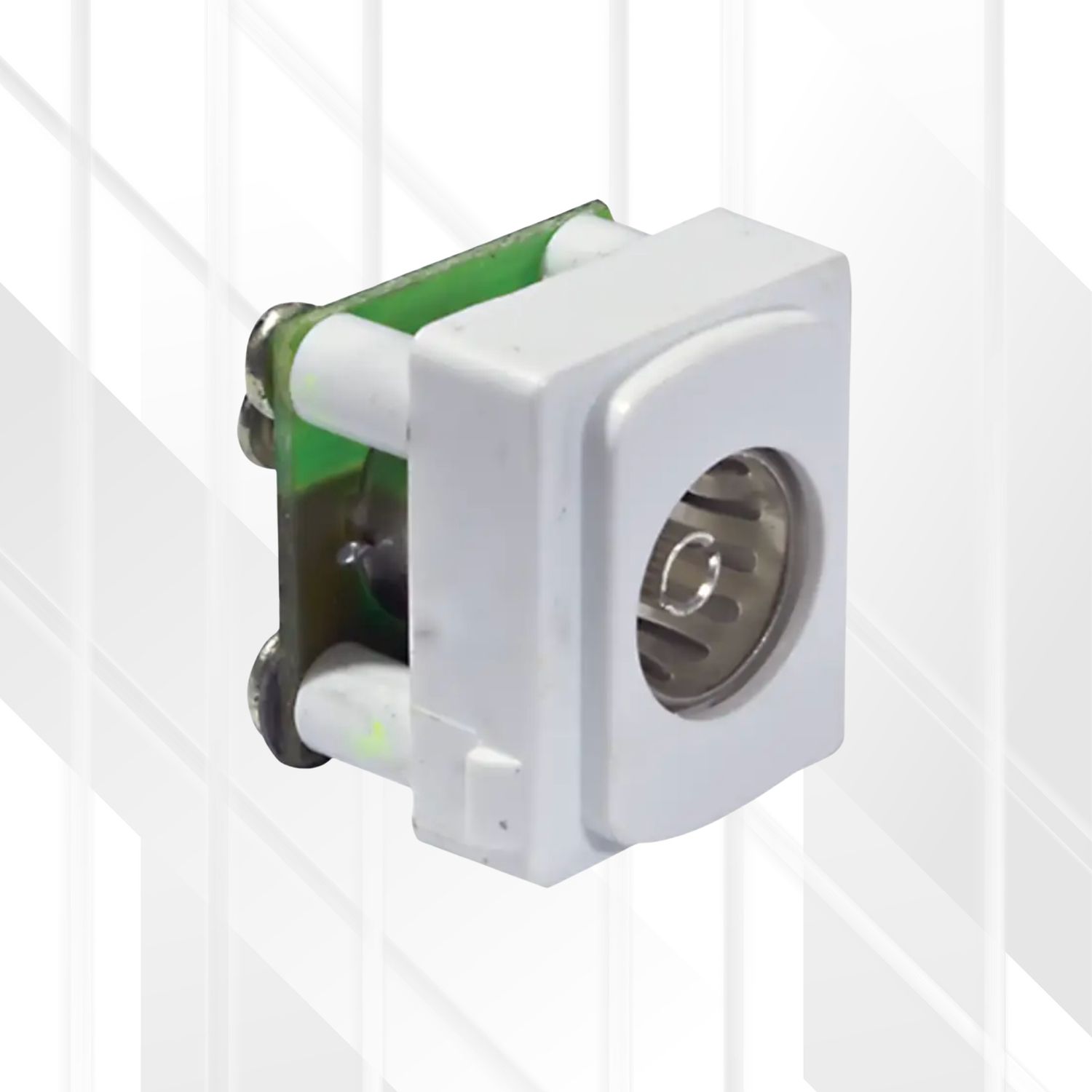

Onesto TV Module 75 Ohms

• A high-quality F-type satellite and terrestrial television connection point, designed to integrate seamlessly into the Onesto Oracle modular system.
• This is a module only; it is the female-to-female coaxial connector and housing, designed to provide a neat and professional termination point for a TV signal cable.
• Provides a standard 75-Ohm F-type screw-on connection, universally compatible with the coaxial cables used for satellite (DStv, StarSat), terrestrial antenna, and cable TV signals.
• Allows electricians and AV installers to create custom wall plates that combine TV outlets with power sockets and other data points for a clean, all-in-one media centre.
• Designed to fit perfectly into any standard "S-size" slot in an Oracle grid plate, maintaining the flawless, high-end aesthetic of the range.
• Backed by a comprehensive 5-year warranty, ensuring a reliable, high-integrity signal connection.

Features

• Function: Provides a single F-type female coaxial connection point for television signal distribution.
• Modular Design: A core "S-size" component of the Oracle system, designed to clip securely into any compatible Oracle grid plate.
• Universal Compatibility: The 75-Ohm F-type connector is the standard for satellite decoders (DStv), terrestrial antennas (SABC, e.tv), and cable television systems.
• High-Integrity Connection: Engineered to provide a secure, low-loss connection that preserves signal quality for a clear, crisp picture.
• Premium Construction: Built with a high-quality, self-extinguishing polycarbonate body for safety and durability.
• Core Colour Options: The module housing is available in White or Black Graphite to perfectly match the colour of the chosen grid plate.
• Standardized Form Factor: Designed as a standard "S-size" module for a perfect, secure fit within all compatible Oracle yokes.
• Certified and Compliant: Manufactured to meet the stringent safety and performance requirements for electrical and data accessories.

Benefits

• Professional, Integrated Finish: The primary benefit is replacing dangling cables or generic wall plates with a TV outlet that perfectly matches the sophisticated design of your Oracle switches and sockets.
• Flawless Design Cohesion: Ensures that every single wall plate in your media or living room—from power to data to TV—shares the same premium, unified aesthetic.
• Ultimate Customisation: Allows for the creation of unique media plates. For example, combine this module with power sockets, an RJ45 data module, and speaker terminals in a single large grid for a complete home theatre connection point.
• Protects Cables and Connectors: Provides a secure termination point that prevents the in-wall coaxial cable from being bent, damaged, or pulled.
• Simplified Installation: The female-to-female barrel design (keystone style) allows for a simple plug-and-play connection of a pre-terminated in-wall cable by a professional.

In-Depth Technical Specifications

The Onesto TV Module 75 Ohms is the signal connection component for the Oracle modular system. The following table details its complete technical specifications.

Ideal Use

This module is exclusively intended for professionals and AV installers creating custom wall plates for television and satellite signal distribution.

• Living Room Media Walls: Essential for creating a clean connection point for a satellite decoder or smart TV's antenna input.
• Bedroom TV Points: Provides a neat and tidy outlet for a secondary television.
• Home Theatres: Can be used in multi-gang plates to provide multiple satellite feeds (for PVRs) or separate terrestrial and satellite inputs.
• Commercial & Hospitality: Perfect for providing clean, professional TV signal access in hotel rooms, boardrooms, and reception areas.
• Any location where a coaxial TV/satellite cable needs to be terminated at a wall outlet.

Tips

To avoid purchasing errors and ensure a successful installation, it is critical to understand the specific function of this module.

• CRITICAL - COMPONENT PART ONLY: You are purchasing only the TV connector module. To create a finished wall outlet, you MUST also purchase an Onesto Oracle Grid Plate and an Onesto Oracle Surround separately.
• PROFESSIONAL INSTALLATION REQUIRED: Running and terminating coaxial cable requires the correct tools and expertise to avoid signal loss. Installation should be performed by a qualified electrician or a professional AV installer.
• CHECK YOUR CABLE TYPE: This is an F-type screw-on connector. It is the standard for almost all modern installations in South Africa. Older installations might use the Belling-Lee "push-in" type connector; verify what you need before purchasing.
• EXAMPLE ASSEMBLY (Single TV Outlet): To build one complete TV outlet, you will need:
  1. This TV Module (ONMTV or ONMTVBK).
  2. An Onesto 1 Lever Grid Plate (ON2011Y or ON2011YBK).
  3. An Onesto 4x2 Decorative Surround.
• EXCLUSIVE COMPATIBILITY: This module is designed to fit ONLY in Onesto Oracle grid plates. It is not compatible with other Onesto ranges or any other brand.
