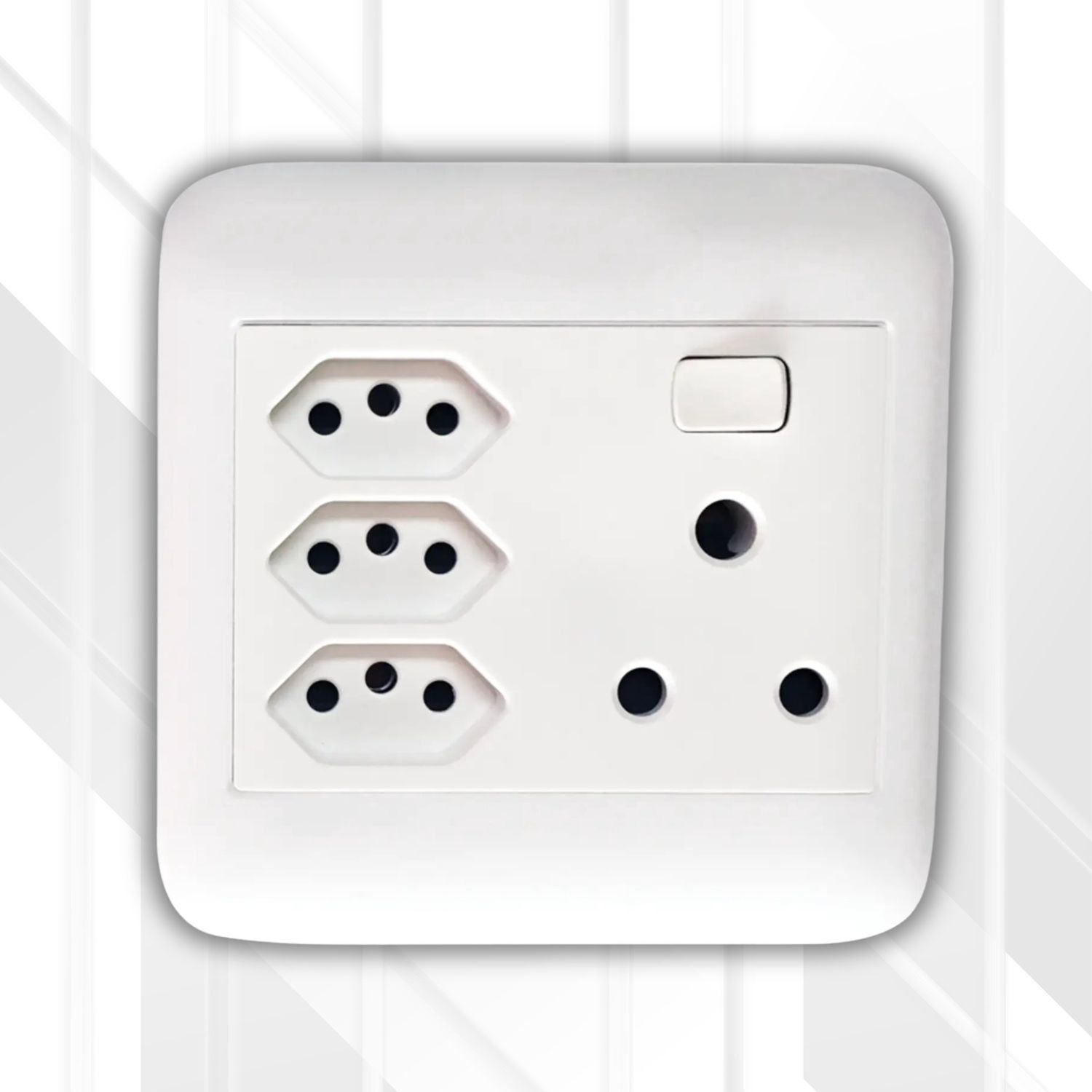

The Onesto Switch Socket RSA + 3xZA Combo 4x4 is engineered for high-demand applications. The following table details its complete technical specifications.
Specification | Value / Description |
---|---|
Product Name | Onesto Switch Socket RSA + 3xEuro Combo 4x4 |
Product Range | Onesto Oracle |
Product Code (White) | ONP4013 |
Product Code (Black Graphite) | ONP4013BK |
Function | High-Density Combination Switched Socket Outlet |
AC Socket Outlets | 1 x SANS 164-1 (16A RSA), 3 x SANS 164-2 (16A ZA Slimline) |
Switch Type | 1 x Single Pole, 1-Way (Controls all outlets) |
Rated Voltage | 250V AC, 50Hz |
Rated Current | 16A (Total Load) |
Primary Material | High-Impact, UV-Stabilised, Self-Extinguishing Polycarbonate |
Standard Finish / Colours | High-Gloss White; Graphite Black |
Profile Depth from Wall | 8.5mm |
Dimensions (W x H) | 102mm x 102mm |
Required Wall Box | Standard 4x4 (102mm x 102mm). A deep wall box is recommended. |
Compliance & Certifications | NRCS Approved, SANS 60884-1, SANS 60669-1, RoHS Compliant |
Warranty | 5 Years |
Oracle 4x4 Colour Surrounds (Sold Separately):
This high-density socket is the perfect solution for any location where multiple devices need power simultaneously.
To ensure the correct and safe installation of your high-density combination socket, please follow this expert guidance:
