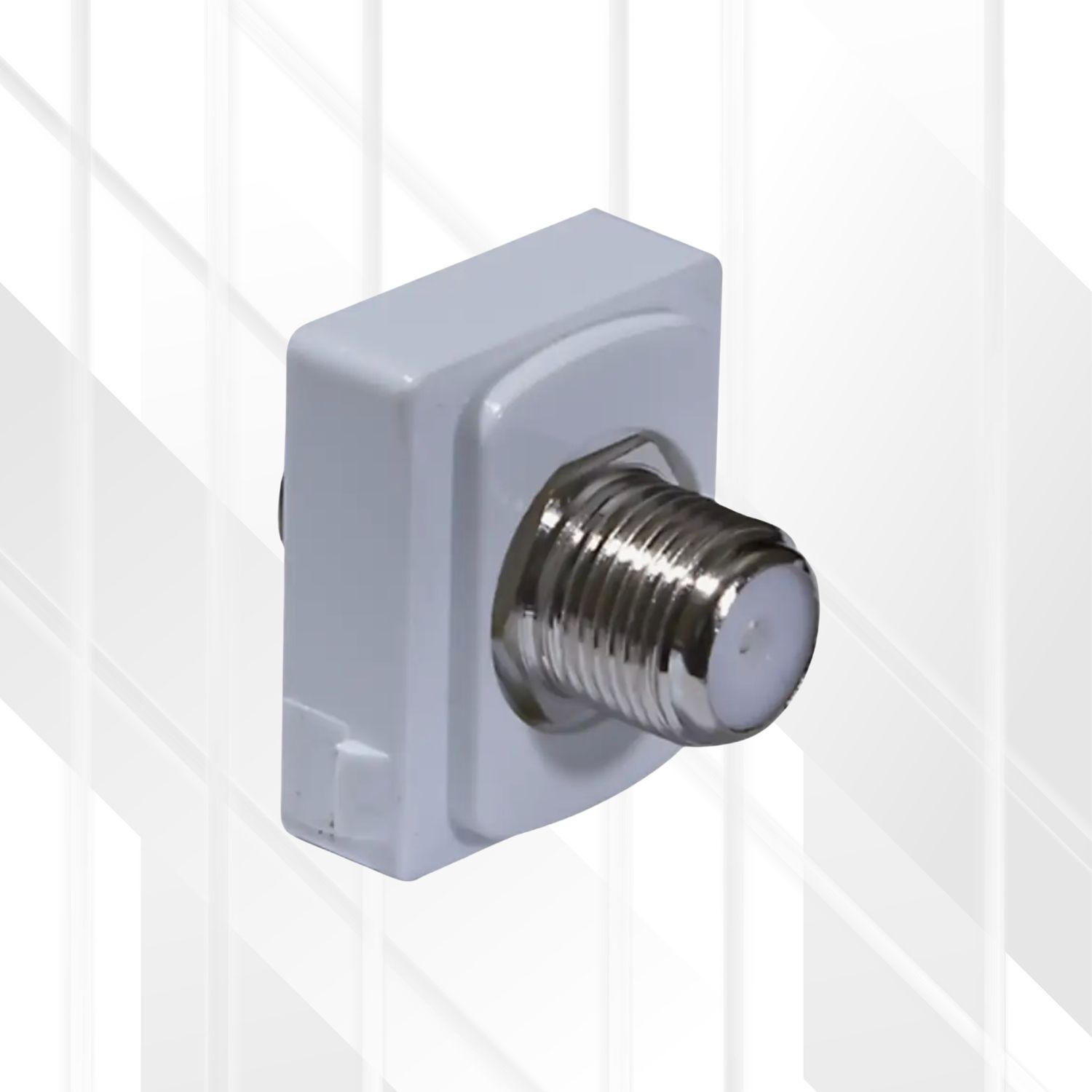

Onesto Satellite Module Only

• A dedicated, high-quality satellite television connection point, designed to integrate seamlessly into the Onesto Oracle modular system for a clean and professional finish.
• This is a module only; it is the F-type coaxial connector and housing, designed to provide a neat and professional termination point for a satellite dish (LNB) signal cable.
• Provides a standard 75-Ohm F-type screw-on connection, universally compatible with the RG6 coaxial cables used for satellite services like DStv and StarSat.
• Allows electricians and AV installers to create custom wall plates that combine satellite outlets with power sockets and other data points for a clean, all-in-one media hub.
• Designed to fit perfectly into any standard "S-size" slot in an Oracle grid plate, maintaining the flawless, high-end aesthetic of the range.
• Backed by a comprehensive 5-year warranty, ensuring a reliable, high-integrity signal connection for perfect picture quality.

Features

• Function: Provides a single F-type female coaxial connection point specifically for satellite television signal distribution.
• Modular Design: A core "S-size" component of the Oracle system, designed to clip securely into any compatible Oracle grid plate.
• Satellite Compatibility: The 75-Ohm F-type connector is the industry standard for connecting LNB cables from a satellite dish to a decoder (e.g., DStv Explora).
• High-Integrity Connection: Engineered to provide a secure, low-loss connection that preserves the sensitive satellite signal quality, preventing picture breakup or signal loss.
• Premium Construction: Built with a high-quality, self-extinguishing polycarbonate body for safety and durability.
• Core Colour Options: The module housing is available in White or Black Graphite to perfectly match the colour of the chosen grid plate.
• Standardized Form Factor: Designed as a standard "S-size" module for a perfect, secure fit within all compatible Oracle yokes.
• Certified and Compliant: Manufactured to meet the stringent safety and performance requirements for AV and data accessories.

Benefits

• Professional, Integrated Finish: The primary benefit is replacing dangling cables or generic wall plates with a satellite outlet that perfectly matches the sophisticated design of your Oracle switches and sockets.
• Flawless Design Cohesion: Ensures that every single wall plate in your media or living room—from power to data to satellite—shares the same premium, unified aesthetic.
• Ultimate Customisation: Allows for the creation of unique media plates. For example, combine two of these modules (for a PVR decoder) with power sockets and an RJ45 data module in a single grid for a complete home theatre connection point.
• Protects Cables and Connectors: Provides a secure termination point that prevents the in-wall coaxial cable from being bent, damaged, or pulled, which can degrade the satellite signal.
• Simplified Installation: The female-to-female barrel design (keystone style) allows for a simple plug-and-play connection of a pre-terminated in-wall cable by a professional.

In-Depth Technical Specifications

The Onesto Satellite Module Only is the dedicated satellite signal component for the Oracle modular system. The following table details its complete technical specifications.

Ideal Use

This module is exclusively intended for professionals and AV installers creating custom wall plates for satellite television signal distribution.

• Living Room Media Walls: Essential for creating a clean connection point for the LNB cable feeding a DStv or other satellite decoder.
• Home Theatres: Can be used in multi-gang plates to provide the multiple satellite feeds required for modern PVR and Explora decoders.
• Bedroom TV Points: Provides a neat and tidy outlet for connecting a secondary decoder or a TV with a built-in satellite tuner.
• Commercial & Hospitality: Perfect for providing clean, professional satellite signal access in hotel rooms, boardrooms, and reception areas.
• Any location where a coaxial satellite LNB cable needs to be terminated at a wall outlet.

Tips

To avoid purchasing errors and ensure a successful installation, it is critical to understand the specific function of this module.

• CRITICAL - COMPONENT PART ONLY: You are purchasing only the satellite connector module. To create a finished wall outlet, you MUST also purchase an Onesto Oracle Grid Plate and an Onesto Oracle Surround separately.
• PROFESSIONAL INSTALLATION REQUIRED: Running and terminating satellite-grade coaxial cable (typically RG6) requires the correct tools and expertise to avoid signal loss. Installation should be performed by a qualified electrician or a professional AV/satellite installer.
• SATELLITE VS. TERRESTRIAL TV: While this module uses the same F-type connector as the standard Onesto TV Module (ONMTV), it is specifically labelled for satellite use. Use this for your dish connection and the TV module for your terrestrial aerial connection to avoid confusion.
• EXAMPLE ASSEMBLY (Single Satellite Outlet): To build one complete satellite outlet, you will need:
  1. This Satellite Module (ONMSAT or ONMSATBK).
  2. An Onesto 1 Lever Grid Plate (ON2011Y or ON2011YBK).
  3. An Onesto 4x2 Decorative Surround.
• EXCLUSIVE COMPATIBILITY: This module is designed to fit ONLY in Onesto Oracle grid plates. It is not compatible with other Onesto ranges or any other brand.
