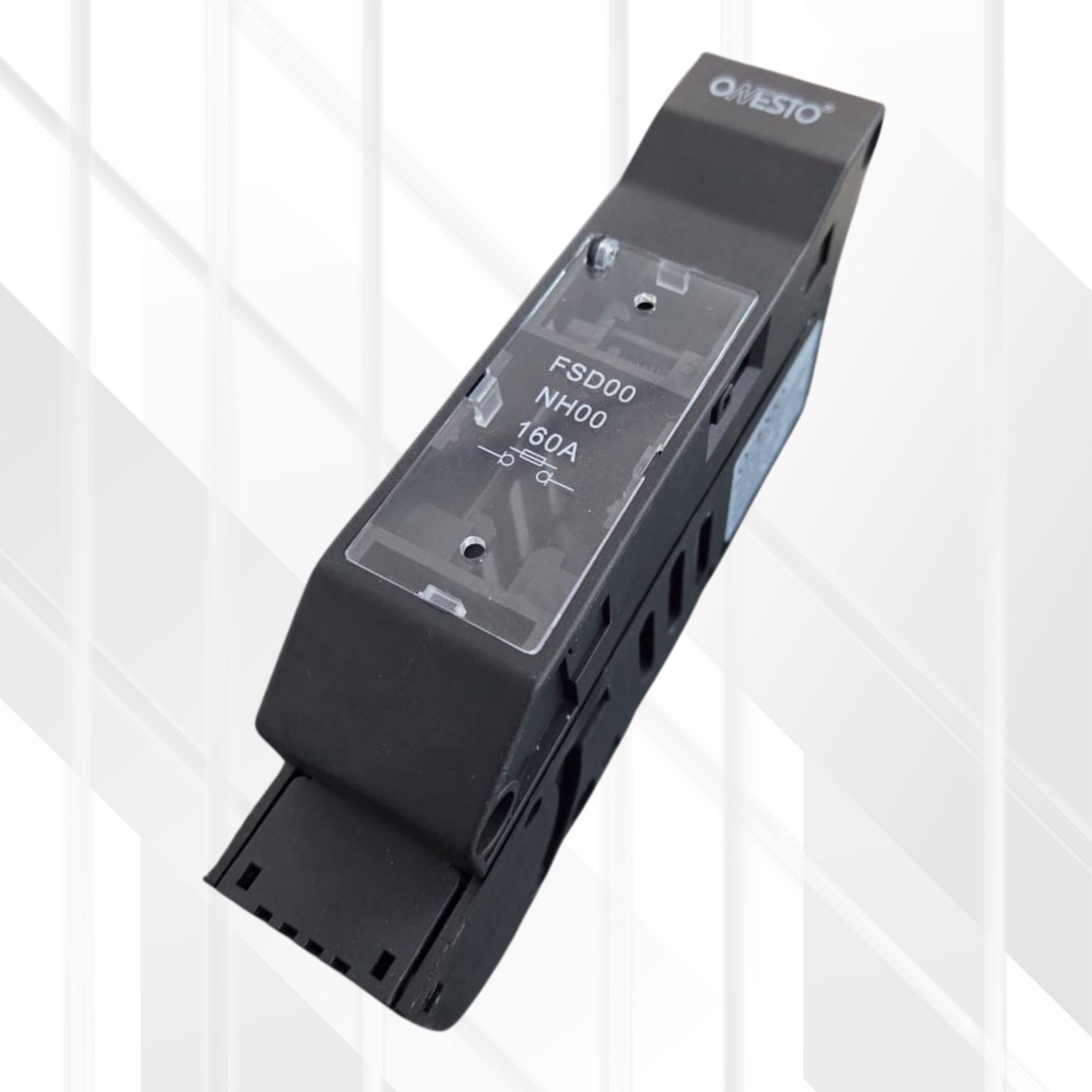

Onesto NH000 1P Switch Disconnector 160A

The Onesto 160 Frame Size Fuse Switch Disconnector is a crucial component in electrical protection systems, combining the functionality of a switch and a fuse holder. Designed for use with 125A to 160A fuses, this 1-pole device provides a safe and convenient way to isolate and protect electrical circuits. As part of the Protective Devices, Fuse and Holders category, it ensures both switching capability and overcurrent protection in a single unit.

Features

• Combined Functionality: Acts as both a switch for circuit isolation and a holder for fuses, providing overcurrent protection.
• 160 Frame Size: Indicates the physical size and current-handling capacity of the disconnector.
• Suitable for 125A - 160A Fuses: Designed to accommodate NH-type fuses within this current range.
• 1 Pole Configuration: Controls one phase or pole of an electrical circuit.
• Safe Operation: Provides a clear indication of the switch position (ON/OFF) and allows for safe fuse replacement when the switch is open.
• Robust Construction: Built to withstand typical industrial and commercial electrical environments.
• Easy Installation: Designed for mounting on standard DIN rails or panels.

Benefits

• Space Saving: Combines two functions into one device, reducing the number of components required in an electrical panel.
• Enhanced Safety: Allows for safe isolation of the circuit before fuse replacement, minimizing the risk of electrical shock.
• Convenient Operation: Provides a readily accessible switch for maintenance and isolation purposes.
• Reliable Protection: Ensures that the circuit is protected against overcurrents by the installed fuse.
• Clear Indication: The switch position is clearly visible, enhancing operational safety.

Technical Specifications

• Product Type: Fuse Switch Disconnector
• Category: Protective Devices, Fuse and Holders
• Frame Size: 160 Frame Size
• Code: FSD00-160-1
• Number of Poles: 1
• Fuse Compatibility: Suitable for NH-type fuses ranging from 125A to 160A (fuses not included)
• Pack Size: 1
• Mounting: DIN rail or panel mounting

Ideal Use

The Onesto 160 Frame Size Fuse Switch Disconnector is ideally used for:

• Industrial and commercial electrical panels: Providing both switching and overcurrent protection for various circuits.
• Motor control circuits: Allowing for safe isolation and protection of motor starters and drives.
• Distribution boards: Offering a compact solution for circuit control and protection.
• Isolation and maintenance points: Providing a safe way to disconnect power for servicing equipment.
• Applications requiring both local isolation and fuse protection: Ensuring both operational control and circuit safety.

It is crucial to select the appropriate fuse rating to be used with this disconnector based on the specific requirements of the electrical circuit being protected. Always ensure proper installation and adherence to relevant electrical regulations. Fuses are sold separately.
