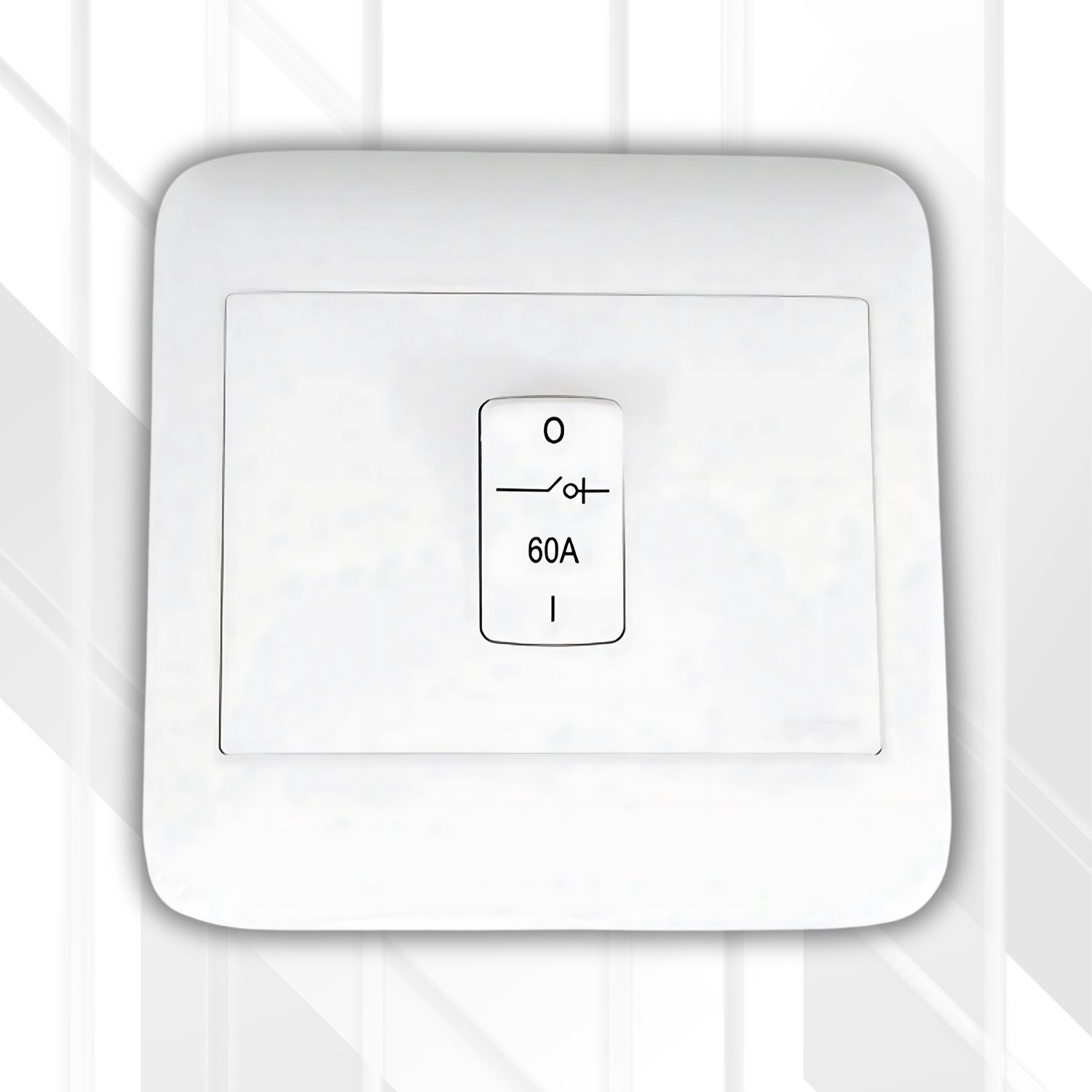

Onesto 60A 2P 4x4 Isolator

• The Onesto 60A 2P 4x4 Isolator is a heavy-duty safety switch that seamlessly merges robust, high-current electrical protection with the sophisticated design language of the premium Onesto Oracle range.
• Engineered for the most demanding applications in residential and commercial settings, this isolator provides a mandatory, visible, and secure means of disconnecting power to high-consumption fixed appliances.
• Its primary function is to create a complete air gap in the circuit, de-energising both the live and neutral conductors (2-Pole) to ensure the utmost safety during maintenance, repair, or emergency situations.
• Rated for a substantial 60 Amps, the Onesto 60A 2P 4x4 Isolator is built to handle the significant electrical loads of large appliances like stoves, geysers, and HVAC units.
• True to the Oracle design philosophy, it does not compromise on aesthetics. The unit is housed in a sleek, 4x4 chassis with the signature 8.5mm slim profile and soft, curved lines, available in both a classic gloss White and a contemporary Graphite Black.
• Constructed from high-impact, UV-stabilised polycarbonate and backed by a 5-year warranty, this isolator ensures that even essential safety components contribute to a cohesive and elegant interior design, offering both peace of mind and visual perfection.

Features

• High Current Capacity: Engineered with a robust 60 Amp rating to safely manage high-power fixed appliances.
• Enhanced Safety Switching: Features 2-Pole (double pole) switching, which disconnects both the Live and Neutral conductors simultaneously for complete and safe circuit isolation.
• Premium Oracle Design: Boasts the signature Italian-inspired aesthetics of the Oracle range, including a slim 8.5mm profile and elegant curved lines.
• Durable Construction: Manufactured from high-impact, self-extinguishing polycarbonate for superior durability and fire resistance.
• UV-Stabilised: Material is resistant to degradation and yellowing from UV light exposure, making it ideal for all environments, including coastal areas.
• Standard Form Factor: Designed for installation in any standard 4x4 (102mm x 102mm) wall box.
• Clear Status Indication: The robust switch provides a clear and unambiguous visual indication of the ON/OFF status.
• Colour Variants: Available in a high-gloss White or a modern Graphite Black finish to match any interior design scheme.
• Full Compliance: NRCS certified and fully conforms to South African safety standards, including SANS 60669-1 and SANS 60884-1.
• Installer-Focused Design: Features a clip-off surround to prevent damage during painting and easily accessible, heavy-duty terminals for secure wiring.
• Assured Reliability: Backed by a comprehensive 5-year manufacturer warranty.

Benefits

• Uncompromised Electrical Safety: The 2-Pole, 60A switching mechanism provides a positive and lockable point of disconnection, ensuring appliances are completely de-energised and safe to service, as required by wiring regulations.
• Heavy-Duty Performance: Reliably handles the high inrush and continuous running currents of the most powerful household and commercial appliances without risk of failure or overheating.
• Aesthetic Consistency: Eliminates the need for unsightly industrial isolators. This unit allows you to maintain the elegant, cohesive look of the Oracle range throughout your property, even for high-function safety devices.
• Long-Term Durability: The resilient polycarbonate body withstands impacts and will not become brittle or discoloured over time, ensuring a long service life and a lasting pristine appearance.
• Guaranteed Compliance: NRCS certification provides absolute assurance that your installation is legally compliant, safe, and meets the stringent requirements for fixed appliances in South Africa.
• Clean and Efficient Installation: The thoughtful clip-off surround protects the unit from paint and plaster, allowing for a neater, faster, and more professional installation.
• Versatile Application: Provides a single, stylish solution for isolating a wide range of powerful equipment, from kitchen cooktops to commercial air conditioning units.

In-Depth Technical Specifications

The Onesto 60A 2P 4x4 Isolator is precision-engineered for safety-critical applications. The following table details its complete technical specifications.

Ideal Use

The Onesto 60A 2P 4x4 Isolator is the mandatory and ideal choice for providing a local point of safe disconnection for high-current, single-phase fixed appliances:

• Large Electric Stoves & Ovens: Essential for isolating high-capacity cooktops, hobs, and built-in ovens.
• High-Capacity Geysers: Providing safe isolation for large residential or commercial electric water heaters.
• Heavy-Duty HVAC Systems: Suitable for large single-phase air conditioning or heat pump units.
• Large Swimming Pool Pumps: Safely isolating powerful pumps and heating equipment for maintenance.
• Workshop & Light Industrial Machinery: Perfect for fixed machinery such as large compressors, welders, or saws that operate on a high-current single-phase supply.
• Any application where SANS 10142-1 wiring regulations mandate a 60A switch-disconnector for a permanently connected appliance.

Tips

Correct installation and use of this high-current safety device are critical. Please ensure adherence to the following expert advice:

• CRITICAL - MUST Be Installed by a Professional: This is not a DIY product. Installation of a 60A isolator must only be carried out by a qualified and certified electrician in strict accordance with SANS 10142-1 regulations to ensure safety and legality.
• Use Correct Wire Gauge: The electrician must use electrical cabling that is appropriately rated for a 60A load. Using undersized wiring is extremely dangerous and a significant fire hazard.
• Verify Application Needs: Consult your electrician to confirm that a 2-Pole isolator is correct for your appliance. While it is standard for most single-phase appliances, some equipment may have different requirements.
• Ensure Secure Terminal Connections: The high current flowing through this device demands perfectly secure connections. The electrician must ensure the terminal screws are tightened to the correct torque to prevent arcing and overheating.
• Accessible Installation Location: Per regulations, the isolator must be installed in an accessible position, typically within 1.5 meters of the appliance it is controlling, to allow for quick disconnection in an emergency.
• Regular Testing: As part of routine electrical maintenance, it is good practice to have your electrician check the function of the isolator switch to ensure it operates correctly.
• Cleaning Protocol: To clean the unit, use only a soft, dry cloth. Avoid abrasive cleaners or chemical solvents to protect the high-gloss polycarbonate finish.
