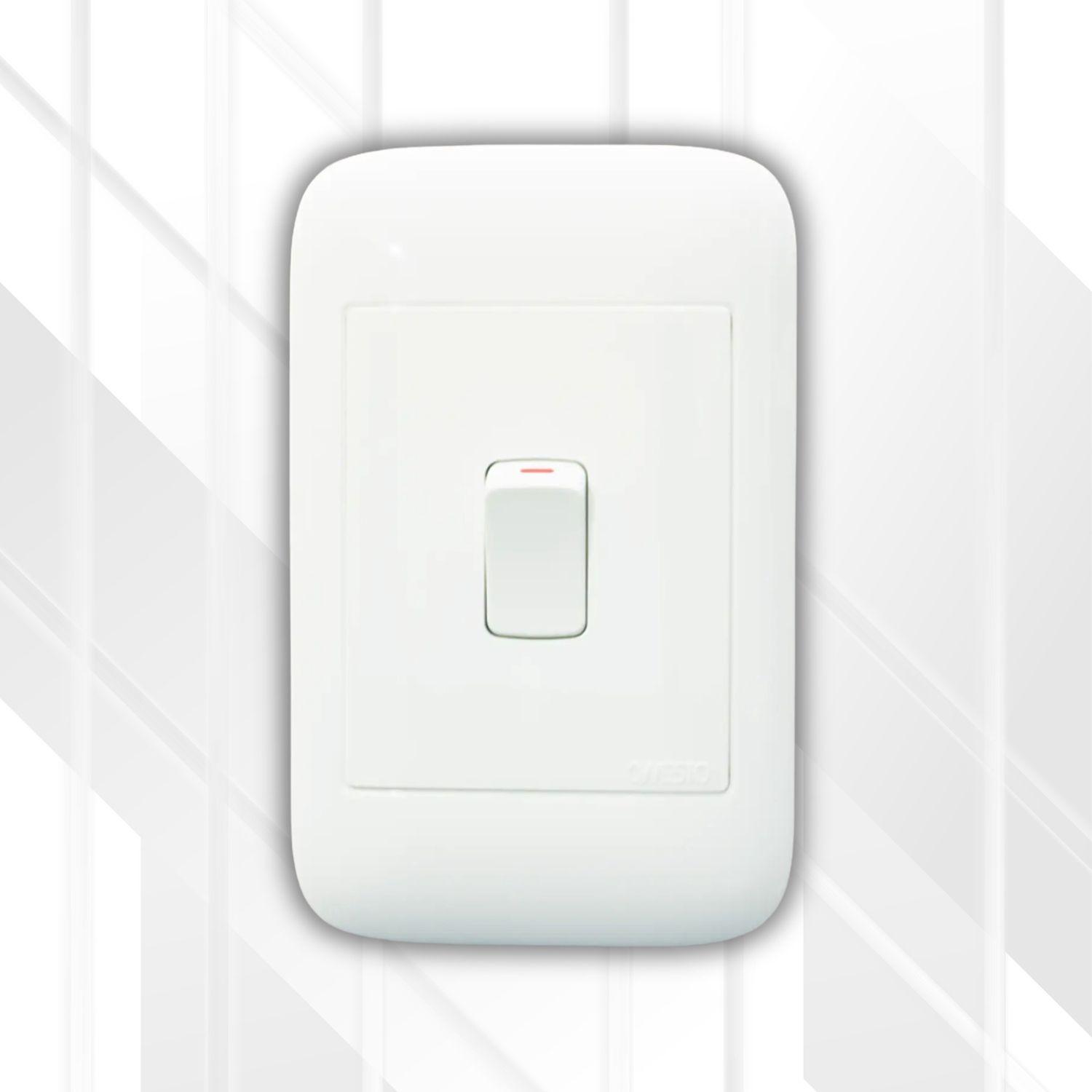

Onesto 1 Lever 2 Way Switch Complete 4x2

• A premium, pre-assembled single-lever light switch from the sophisticated Onesto Oracle range, specifically engineered for 2-way switching to provide versatile control of a single light from two different locations.
• This is a complete, ready-to-install switch, offering a convenient all-in-one solution for creating convenient lighting circuits in staircases, long hallways, and large rooms.
• Offers independent control of a single lighting circuit when paired with another 2-way switch, allowing you to turn a light on at one end of a room and off at the other.
• Embodies the elegant Oracle design language, featuring an ultra-slim 8.5mm profile and soft, Italian-inspired curves for a seamless, high-end aesthetic.
• Constructed from high-impact, UV-stabilised polycarbonate in high-gloss White or modern Graphite Black for exceptional durability and a lasting premium finish.
• Fully NRCS certified for safety and backed by a comprehensive 5-year warranty, making it the professional choice for convenient and stylish lighting control.

Features

• Switch Functionality: Features one lever with a 2-Way switching mechanism.
• Application: Designed to control a single light/circuit from two separate locations when used in conjunction with a second 2-way switch.
• Robust Electrical Rating: The switch mechanism is rated for 16A, making it suitable for all common lighting loads, including LED.
• Standard 4x2 Format: Designed to fit perfectly into any standard 4x2 (102mm x 51mm) wall box.
• Signature Oracle Aesthetics: Boasts the premium Italian-inspired design with an ultra-slim 8.5mm profile for a modern, low-profile look.
• Superior Material Construction: Manufactured from high-impact, self-extinguishing, and UV-stabilised polycarbonate for exceptional durability and safety.
• Customisable Appearance: Fully compatible with the range of 4x2 Oracle clip-on decorative surrounds in various metallic and graphite finishes.
• Core Colour Options: Available in a high-gloss White or a contemporary Graphite Black finish.
• Certified for Safety: Fully NRCS certified and compliant with SANS 60669-1, guaranteeing its safety and quality.
• Long-Term Reliability: Supported by a comprehensive 5-year manufacturer warranty.

Benefits

• Ultimate Convenience: The key benefit is the ability to control a light from two different points, eliminating the need to walk through a dark room or down a flight of stairs to turn off a light.
• Enhanced Safety & Accessibility: Improves safety in areas like stairways and long passages by ensuring a light switch is always within reach.
• Aesthetic Cohesion: Eliminates the need for mismatched switches. This unit perfectly matches the elegant design of the Oracle range, ensuring a seamless look across all your wall-mounted accessories.
• Simplified Installation: As a complete, pre-assembled unit, it simplifies specification and installation for a 2-way circuit compared to building a custom modular switch.
• Tailored to Your Interior: The unique clip-on surround system provides the creative freedom to perfectly match your switches to your wall colours and decor.
• Enduring Appearance: The premium, coastal-rated polycarbonate construction resists impacts, fading, and yellowing, ensuring the switch maintains its beauty over its long service life.

In-Depth Technical Specifications

The Onesto 1 Lever 2 Way Switch Complete 4x2 is engineered for convenience and reliability. The following table details its complete technical specifications.

Oracle 4x2 Colour Surrounds (Sold Separately):

• Pearl Surround (4x2): ON2000S-P
• Champagne Surround (4x2): ON2000S-CH
• Titanium Surround (4x2): ON2000S-T
• Copper Surround (4x2): ON2000S-C
• Black Graphite Surround (4x2): ON2000S-B

Ideal Use

This 2-way switch is essential for any location where a single light or circuit needs to be controlled from two separate points.

• Staircases: The classic application, with one switch placed at the top and another at the bottom of the stairs.
• Long Hallways & Corridors: Allows a light to be switched on at one end of the hall and off at the other.
• Large Rooms with Two Entrances: Enables control of the main room lighting from either doorway, such as in an open-plan lounge or dining room.
• Master Bedrooms: Perfect for controlling the main overhead light from both the door and a switch by the bedside.

Tips

To ensure the correct and safe installation of your Onesto 1 Lever 2 Way Switch Complete 4x2, please follow this expert guidance:

• CRITICAL - PROFESSIONAL INSTALLATION REQUIRED: The wiring for a 2-way circuit is more complex than a standard switch and must be performed by a qualified and certified electrician in compliance with SANS 10142-1.
• CRITICAL - WORKS IN PAIRS: A 2-way switch cannot function for multi-point control on its own. To control one light from two locations, you need two 2-way switches connected by specific "traveller" wires.
• KNOW YOUR SWITCHES:
  • 1-Way Switch (ON2011): Controls a light from one location.
  • 2-Way Switch (this product, ON2012): Used at the start and end of a multi-point control circuit. You need two of them for two-location control.
  • Intermediate Switch (Module ONM20IS): Used between two 2-way switches to add a third (or fourth, fifth, etc.) control point.
• PAINTING MADE EASY: For a perfect finish, always remove the clip-on surround before painting the wall. This prevents accidental smudges and creates crisp, clean lines. Re-attach it only when the paint is completely dry.
