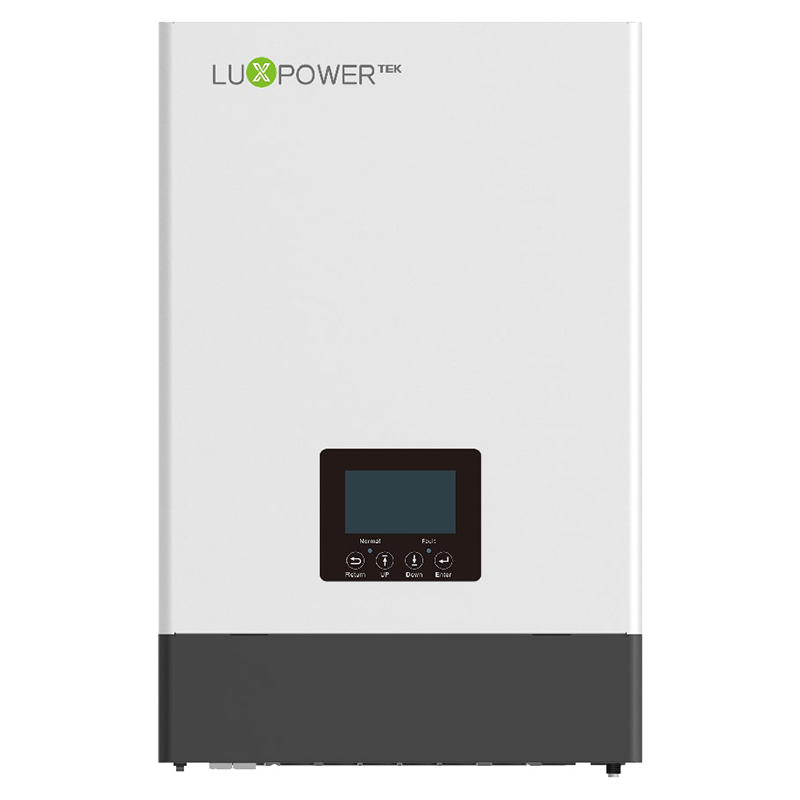

Luxpower ECO Hybrid SNA 5000 WPV

Functionality

SNA5000 serial off-grid inverter can support the dc to dc converter system to work as backup power or a diesel generator replacement. Since the inverter support paralleling function, the capacity of the system can range from 3kW to 50kW. The inverter supports DC-DC converter working modes.

Pure Off-grid working mode: Working as a traditional off-grid inverter, can set the output to utility first, battery first or solar first.

Hybrid working mode: As a DC-DC converter hybrid, support solar and utility jointly take the load, and can be set to self-consumption mode or charge priority node.

Features

Luxpower ECO Hybrid SNA 5000 WPV

Intelligent off-grid & hybrid modes

PV & AC power loads simultaneously

Wide PV input voltage range

DC to DC converter easy to use with battery

Free monitoring & remote upgrade

Single-phase or unbalanced three phase

Advanced Parallel, up to 60kW

Independent generator interface

Host inverter automatically generated to manage the entire system

Specification

Inverter Output

Luxpower ECO Hybrid SNA 5000 WPV

• Waveform: Pure Sine-Wave.
• Rated Power: 5000VA/5000W.
• Parallel Capability: Yes, 9 units.
• AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
• Surge Power: 10000VA.
• Efficiency (Peak): 93%.
• Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).

Solar Charger

Luxpower ECO Hybrid SNA 5000 WPV

• Maximum PV Array Power: 6000W.
• 2 MPPT Controllers
• MPPT Range @ Operating Voltage: 100VDC ~385 VDC.
• Maximum PV Array Open Circuit Voltage: 480VDC.
• Maximum Efficiency: 98%.
• Maximum Solar Charge Current: 100A.

AC Charger

Luxpower ECO Hybrid SNA 5000 WPV

• Charge Current: 60A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
• Frequency Range: 50Hz/60Hz (Auto sensing)

Build in BMS(Battery management System)

Luxpower ECO Hybrid SNA 5000 WPV

• BMS Compatible with
• Pylon
• Dyness
• BYD
• Shoto
• Revov
• UZ Energy

Wifi Remote Monitoring

Flexible Working Modes with settable charge an dload power supply priority

Support Solar and AC take the load jointly

Grid/Battery/PV Jointly Take the Load

For traditional off grid inverter, load was taken either by battery,PV or by AC grid , which will make low usage of solar power. For Luxpower ECO Hybrid SNA 5000 WPV Off grid inverter, you can use PV and utility take load and keep battery full at the same time.

Battery Management

Support Pylon/Weco/Dyness/Aoboet Li-ion battery (See Full List)

One cable connection, do not need any external box for Li-ion battery communication

Support battery equalization function to activate the battery period

Support Battery wake up function

Independent Generator Input

Independent generator input, free of ATS outside

Flexiable control of generator

*Battery level/battery voltage can be set to turn on the generator
*Battery level/battery voltage can be set to turn off the generator

Support & Monitoring

Luxpower ECO Hybrid SNA 5000 WPV

• Free monitor system for remote monitoring, setting and update
• Wifi/4G/WLAN dongle available for different application for data collection
• IOS and Andriod APP are available
• Multi-level for system management
• Different account type for distributor, sub-distributor,installer and endusers
• Distributor and installer can create assist account for after sales
• Support batch settings for many inverters set together

Luxpower ECO Hybrid SNA 5000 WPV

WIFI MODULE SPECIFICATION

MODEL	WI-FI
Size	86*55*23mm
Weight	34g
Protection Grade	IP65
Installation	Fixed on the device by screws
Rated voltage	5V
Maximum current	0.25A
External interface	HDMI
Indicator light	3
Operating temperature	-25℃~60℃
Storage temperature	-25℃~60℃
Local communication interface	RS485/TTL
Public network access	Wi-Fi
Baud rate	19200bps (Default)
Working frequency	2.412GHz – 2.484GHz
Maximum transmission rate	72Mbps
Communication distance	100m
Antenna gain	2.5dBi
Antenna	External antenna (External of the antenna are optional)
Traffic card	—
Watchdog	Software watchdog+hardware watchdog
Equipment layer communication protocol	Modbus-RTU
Network layer communication protocol	Modbus-TCP
Way of parameter settings	App/Remote server
Firmware update way	Local tools
