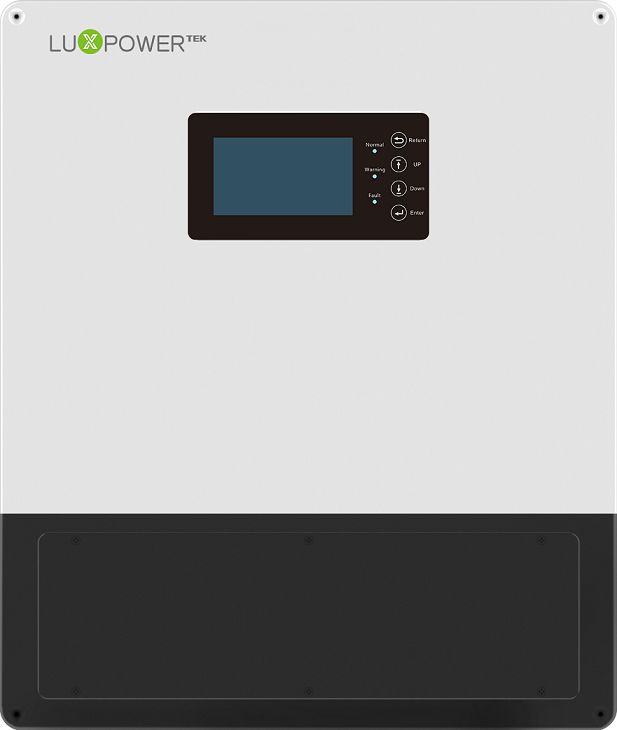

Luxpower Hybrid Single Phase LXP LB10K

• The Luxpower 10kW Hybrid Inverter, model LXP10K, is prepared to advance your solar power system. An inverter for solar panels and solar power is the Luxpower Hybrid Inverter.
• The DC electricity produced by your solar panels is converted into AC electricity by this solar inverter with battery and solar panels. It can connect to solar panels and use the lithium ion battery to store energy.
• For installers, the Luxpower 10kW Hybrid inverter is a fantastic inverter. Because it is a hybrid inverter, it can be used with grid-tied solar as well as off-grid inverters.
• This pure sine wave solar inverter with lithium battery is a fantastic solution for solar systems and for solar power installers. It was made with solar systems in mind specifically.
• A solar inverter made by LuxPowerTek is the Luxpower 10kW Hybrid inverter. The 5-year warranty is included with the Luxpower 10kW Hybrid Inverter.
• Additionally, it incorporates a color touchscreen LCD (liquid crystal display). Powerful and cutting-edge, the Luxpower 10kW Hybrid inverter is a solar inverter that can be applied in both home and commercial settings.
• Almost any lithium ion battery can be utilized with the LXP10K Luxpower type inverter for solar systems, and it has a seamless switching time. Since the battery’s nominal voltage is 48V, it can be used with a wide variety of solar batteries.

Solar Hybrid Inverter System Connection

A newly designed solar and energy storage hybrid solar inverter, capable to install in on-grid solar, off-grid solar and back-up systems. LXP Hybrid enables a programmable and scheduled smart solar energy storage system to help increase your solar energy self-consumption rate. The hybrid inverter can protect your home appliances from grid shortage, and balance your energy usage strategy to save energy bill.

Solar Hybrid Inverter Parallel Connection

Paralleling LXP inverters in one phase to extend the single phase system capacity for either hybrid or AC coupled energy storage applications. Paralleling LXP inverters (single phase inverters) to build a three phase system for either hybrid or AC coupled energy storage applications. Smart paralleling algorithm enable multiple configurable working modes under on-grid, off-grid or micro grid applications.

Overview of the Connection Ports

Specifications

DC PV Input

Luxpower Hybrid Single Phase LXP LB10K

• Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
• Maximum PV Input: 16 000W
• DC Input Voltage Range: 100VDC-600VDC
• Nominal DC Input Voltage: 360VDC
• Full Power MPPT Voltage Range: 210VDC-500VDC
• Maximum DC Input Current: 25A / 15A / 15A
• MPPT Number / Strings per MPPT: 3(2/1/1)

AC Output (Grid)

Luxpower Hybrid Single Phase LXP LB10K

• Nominal Power: 10 000W
• Nominal AC Voltage: 240VAC
• Operating Voltage Range: 180VAC-270VAC
• Maximum Continuous AC Current: 41.6A @ 240VAC
• Nominal AC Frequency: 50Hz / 60Hz

System Diagram

Battery Parameters

Luxpower Hybrid Single Phase LXP LB10K

• Compatible Battery Type: Lead-acid / Lithium
• Nominal Battery Voltage: 48VDC
• Battery Voltage Range: 40VDC-60VDC
• Maximum Charge / Discharge Current: 210A
• Maximum Charge / Discharge Power: 10 000W

UPS Output (With Battery)

Luxpower Hybrid Single Phase LXP LB10K

• UPS Max Output Power: 10 000W
• UPS Nominal Output Frequency: 50Hz / 60Hz
• UPS Nominal Output Current: 41.6A @ 240VAC
• Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
• Switching Time: <20ms

Build in BMS(Battery management System)

Luxpower Hybrid Single Phase LXP LB10K (See Full List)

• Pylon
• Dyness
• BYD
• Shoto
• Revov
• UZ Energy

LXP hybrid inverters support variable working modes

Generator Support

Luxpower Hybrid Single Phase LXP LB10K

This hybrid inverter can work with generator. There are Gen ports on the inverter for generator connection.

When generator is started, all the critical loads and non-critical loads will be supplied by the generator. Meanwhile battery will also be charged .

Environment Limit

Luxpower Hybrid Single Phase LXP LB10K

• Ingress Protection: IP65
• Operating Temperature Range: -25°C to +60°C
• Cooling: Fan
• Communication: RS485 / WIFI / CAN

Support & Monitoring

Luxpower Hybrid Single Phase LXP LB10K

• Free monitor system for remote monitoring, setting and update
• Wifi/4G/WLAN dongle available for different application for data collection
• IOS and Andriod APP are available
• Multi-level for system management
• Different account type for distributor, sub-distributor,installer and endusers
• Distributor and installer can create assist account for after sales
• Support batch settings for many inverters set together

Luxpower Hybrid Single Phase LXP LB10K

WIFI MODULE SPECIFICATION

A new design of solar and battery inverters that can use in on-grid solar, off-grid solar and back-up systems. The LXP Hybrid implements a programmable and scheduled intelligent solar storage system. This power inverter battery can help increase your solar energy self-use and protect your home appliances from grid shortages. Power battery inverter can also balance your energy use strategy to save on energy costs
