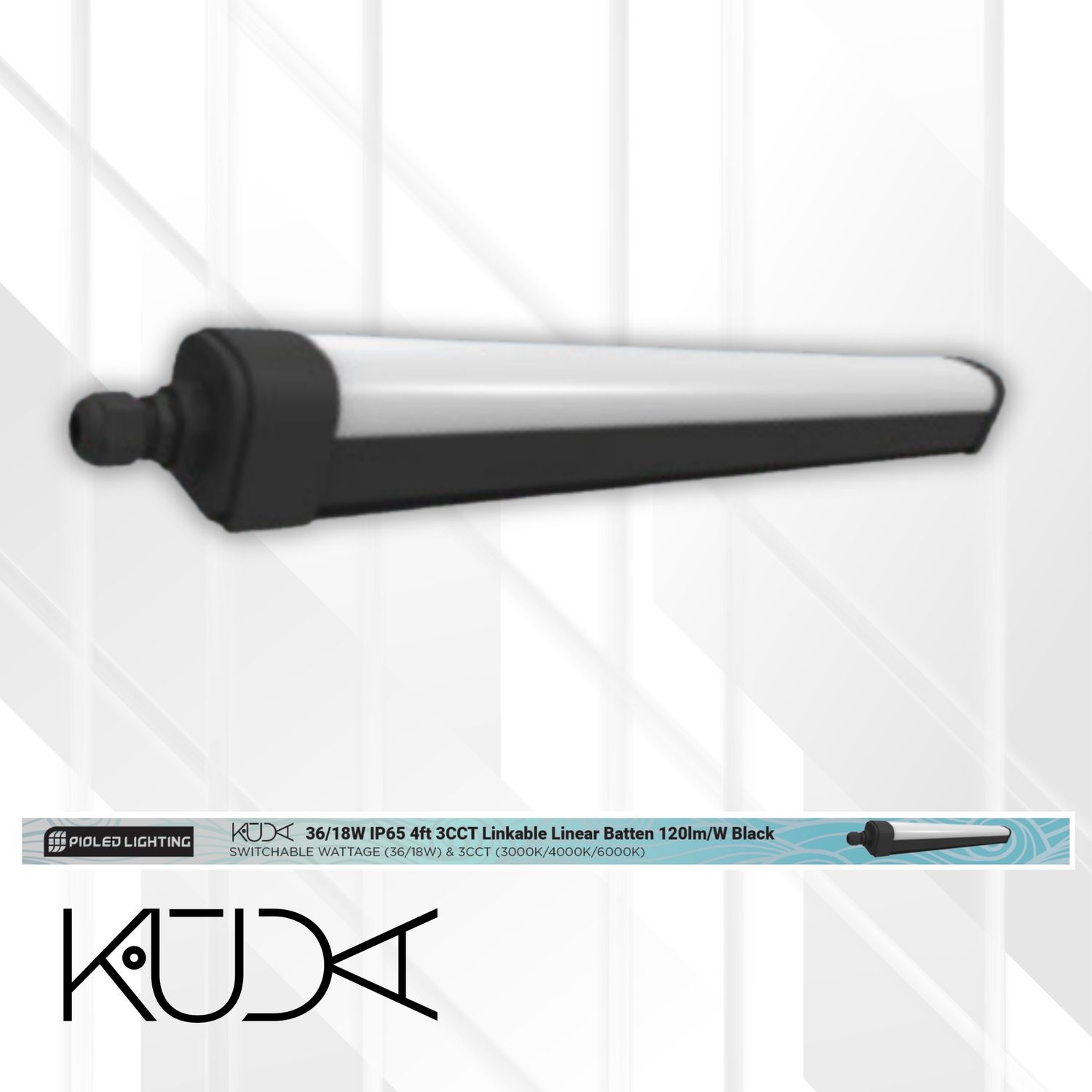

KUDA 4FT Dual-Watt Linkable Tri-Proof IP65 Linear Light 36W/18W

• The PioLED Kuda Linkable Linear Batten offers a highly adaptable and energy-efficient lighting solution designed to withstand demanding environments. This 4ft (approx. 1200mm) linear batten is available in two housing colours: White (LL908) and Black (LL910).
• It features selectable dual wattage (18W or 36W) and a 3CCT switch, allowing you to choose between Warm White (3000K), Neutral White (4000K), and Cool White (6000K) to perfectly suit your application.
• Its robust IP65 rating ensures complete protection against dust and water ingress, making it ideal for challenging indoor and covered outdoor spaces.
• The linkable design simplifies creating continuous lighting runs (up to 10 units). With a high lumen efficiency of 120lm/W, a wide 120° beam angle, a CRI of >80, and built-in surge protection, the Kuda Linear Batten delivers bright, comfortable, and reliable illumination with a long lifespan.

Features

• Available in Black (LL910) and White (LL908) Housings: Choose the colour that best suits your aesthetic preferences.
• Dual Wattage Selectable (18W / 36W): Offers the flexibility to choose between two power levels to optimize brightness and energy consumption.
• 3CCT Switchable (3000K/4000K/6000K): Allows easy selection of the desired colour temperature to suit different tasks and environments.
• IP65 Rated: Provides robust protection against dust and water ingress, making it suitable for harsh and demanding environments.
• Linkable Design: Enables easy and quick installation of up to 10 units in series for seamless, continuous lighting.
• High Lumen Efficiency (120lm/W): Delivers bright and energy-saving illumination (36W: 4320lm / 18W: 2160lm).
• Wide Beam Angle (120°): Provides broad and even light distribution.
• High Colour Rendering Index (CRI >80): Ensures accurate colour representation.
• Long Lifespan: Designed for a long operational life, reducing maintenance.
• Built-in Surge Protection: Offers protection against voltage spikes.
• High Power Factor: Ensures efficient energy utilization.
• Robust PC Housing: Durable polycarbonate housing provides excellent impact and environmental resistance.
• Excellent Thermal System: Designed for efficient heat dissipation, ensuring optimal performance and longevity.
• Wide Input Voltage: Compatible with standard electrical systems.
• High-Quality LED Chips: Ensures reliable and consistent light output.
• Flicker-Free: Provides comfortable and stable light output.
• 5 Year Warranty: Provides peace of mind regarding product quality and durability.
• Class I Insulation: Offers protection against electric shock.
• High Energy Efficiency (Class A): Contributes to reduced energy consumption.

Benefits

• Choice of Housing Colour: Select Black or White to match your design.
• Highly Adaptable Lighting: Dual wattage and 3CCT selection provide ultimate flexibility for various applications.
• Ideal for Harsh Environments: IP65 rating ensures reliable performance in dusty and damp locations.
• Significant Energy Savings: High lumen efficiency and selectable wattage minimize energy consumption.
• Easy and Flexible Installation: Linkable design simplifies creating continuous lighting runs.
• Comfortable and High-Quality Light: Flicker-free operation and high CRI ensure comfortable and accurate illumination.
• Long Lifespan and Reliability: High-quality components and excellent thermal management ensure a long operational life.
• Reduced Maintenance Costs: Long lifespan minimizes the need for frequent replacements.
• Protection Against Power Surges: Built-in surge protection enhances durability.

Technical Specifications

• Product Code (White): LL908
• Product Code (Black): LL910
• Length: Approx. 4ft (Product Dimensions: 1200mm x 58mm x 62mm)
• Wattage: Selectable (18W / 36W)
• Lumen Output: 18W: 2160lm / 36W: 4320lm
• Colour Temperature: 3CCT Switchable (3000K / 4000K / 6000K)
• IP Rating: IP65
• Lumen Efficiency: 120 lm/W
• CRI: >80
• Beam Angle: 120°
• Lifespan: 50,000 Hours
• Surge Protection: Yes
• Power Factor: >0.9
• Input Voltage: 190-277V AC
• LED Chips: 2835 SMD
• Dimmable: Non-Dimmable
• Housing Material: PC
• Weight: 1.08 kg
• Operating Temperature (Ta & Tc): Ta = 25°C / Tc = 85°C
• Class Rating: Class I
• Energy Efficiency: A
• Warranty: 5 Years
• Linkable: Up to 10 units

Ideal Use

The PioLED Kuda Linkable Linear Batten (4ft - 18W/36W) is a versatile and robust lighting solution ideal for a wide range of residential and commercial applications, including:

• Factories and Industrial Areas: Providing adaptable and durable lighting for production lines and workspaces.
• Warehouses and Storage Facilities: Offering energy-efficient and bright illumination with easy linkable installation.
• Parking Garages and Covered Outdoor Areas: Withstanding moisture and dust while providing selectable brightness and colour temperature for safety and visibility.
• Workshops and Garages: Providing durable and customizable lighting for various tasks.
• Retail Spaces: Illuminating aisles and display areas with adjustable brightness and colour temperature to enhance product presentation.
• Supermarkets and Hypermarkets: Offering energy-efficient and linkable lighting solutions for large retail environments.
• Agricultural Buildings: Resistant to dust and moisture, providing reliable illumination for various agricultural tasks.
• Transportation Hubs: Lighting corridors, platforms, and covered walkways with continuous and efficient light runs.

Choose the White (LL908) or Black (LL910) housing option to suit your aesthetic preferences. Its selectable wattage and colour temperature, combined with its robust design and linkable feature, make it a highly adaptable and efficient lighting solution for demanding environments.

Professional installation by a qualified electrician is recommended for safety and optimal performance.
