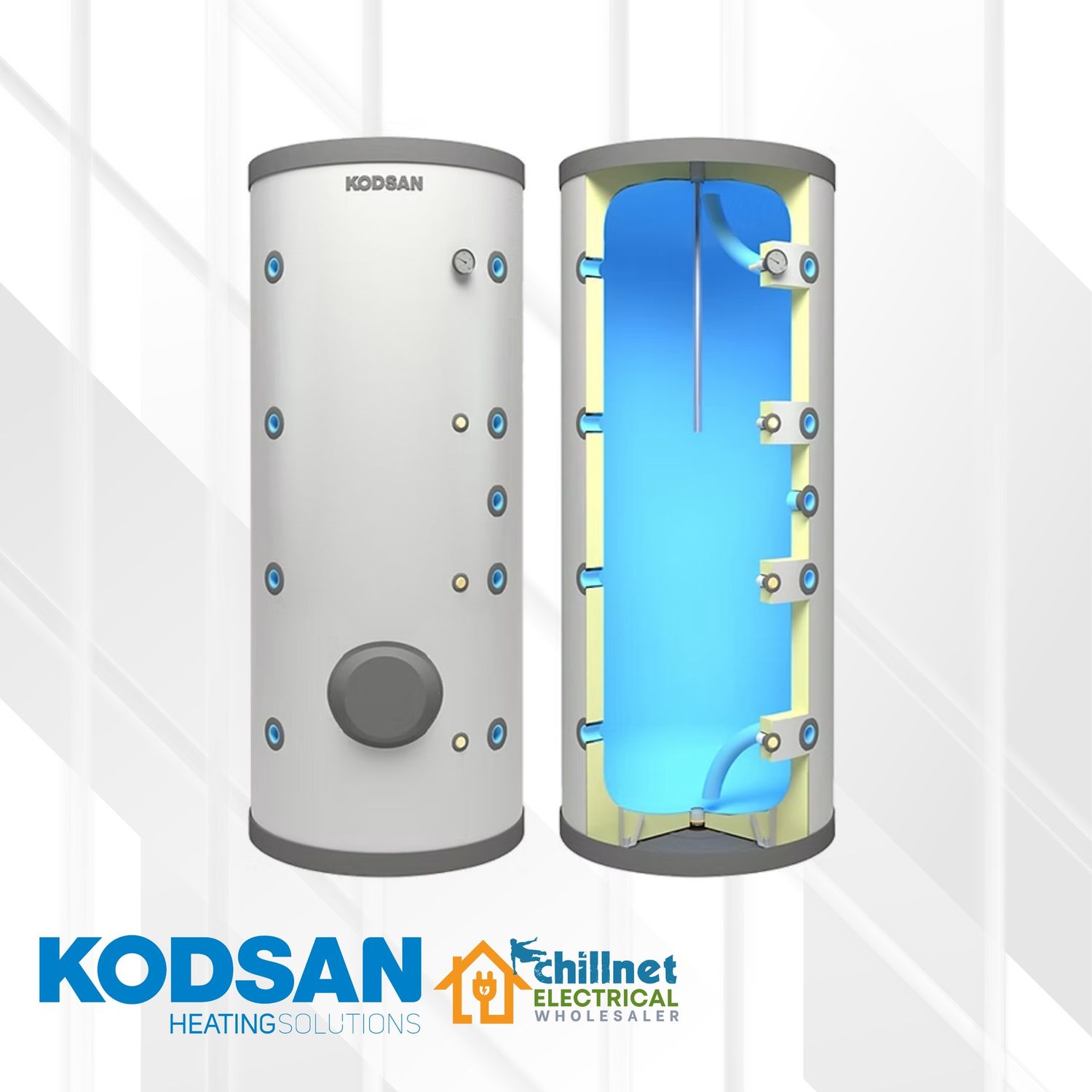

Kodsan 500L Enameled Accumulation Tank

Elevate your home's comfort with the KAT 500 Hot Water Tank.

This high-quality storage tank is designed to provide reliable and efficient hot water supply for your household. Engineered with precision and built to last, the KAT 500 ensures consistent hot water, even during peak usage times.

Key Features

• Ample Storage Capacity: With a 516-liter capacity, this tank can meet the hot water needs of a large family.
• Durable Construction: Made from high-quality materials and built to withstand the test of time.
• Energy Efficiency: Designed to minimize heat loss, ensuring maximum efficiency.
• Easy Installation: Simple and straightforward installation process.
• Reliable Performance: Consistent and reliable hot water supply.
• Safety Features: Equipped with safety features to prevent accidents.

Technical Specifications

• Volume: 516 liters
• Maximum Operating Temperature: 75°C
• Body Operating Pressure: 7 bar
• Body Diameter: 750 mm
• Total Height: 1800 mm
• Domestic Hot Water Outlet: 1 1/4" inch
• Cleaning Flange: 4 inch
• Electric Heater: 1 1/2" inch
• Insulation Type & Thickness: PU/50 mm
• External Cover Coating: Electrostatic Powder Painted Steel
• Internal Coating: Enameled (glass-lined) in accordance with DIN 4753-3 standard
• Gross Weight: 155 kg
• Energy Heat Loss: 2.63 kWh/d
• Tipping Height: 1970 mm
• Thermometer & Sensor Connection: 1/2" inch
• Electric Heater: Electric Heater can be installed - Optional
• Magnesium Anode Connection: 1 1/4" inch
• Manufacturer's Warranty: 5 Years
