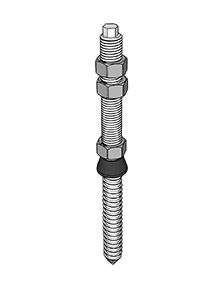

KD Solar hanger bolt for a wood substructure. This hanger bolt is fastened directly on the wood structure of corrugated zinc/asbestos roofs. This bolt attaches to this bracket: KDS-HANG-BOLT-BRKT which inturn attaches to the long rail used for holding the panels. Both parts are required for a corrugated long-rail roof solution.
Hanger bolt dimensions:
The following rails can be used as part of the solution:
