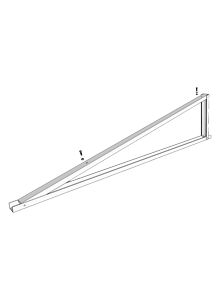

KD Solar adjustable V-frame bracket for landscape mounting. This adjustable bracket is mainly used for flat or low-angled roofs - the user-adjustable angles allow a more efficient PV array in terms of harvesting the sun's energy. In addition, the adjustable V-frame bracket can be used with any flat metal roof anchor (for corrugated, cliplock or IBR roofs) whenever an additional elevated angle is required, in such cases the KDS-A-FRM-BOLT is required to fasten the V-frame on the roof anchor.
The recommended distance between each successive V-frame on a PV array is 1400mm, however, the maximum length must not exceed 1600mm.
Adjustable V-frame properties:
