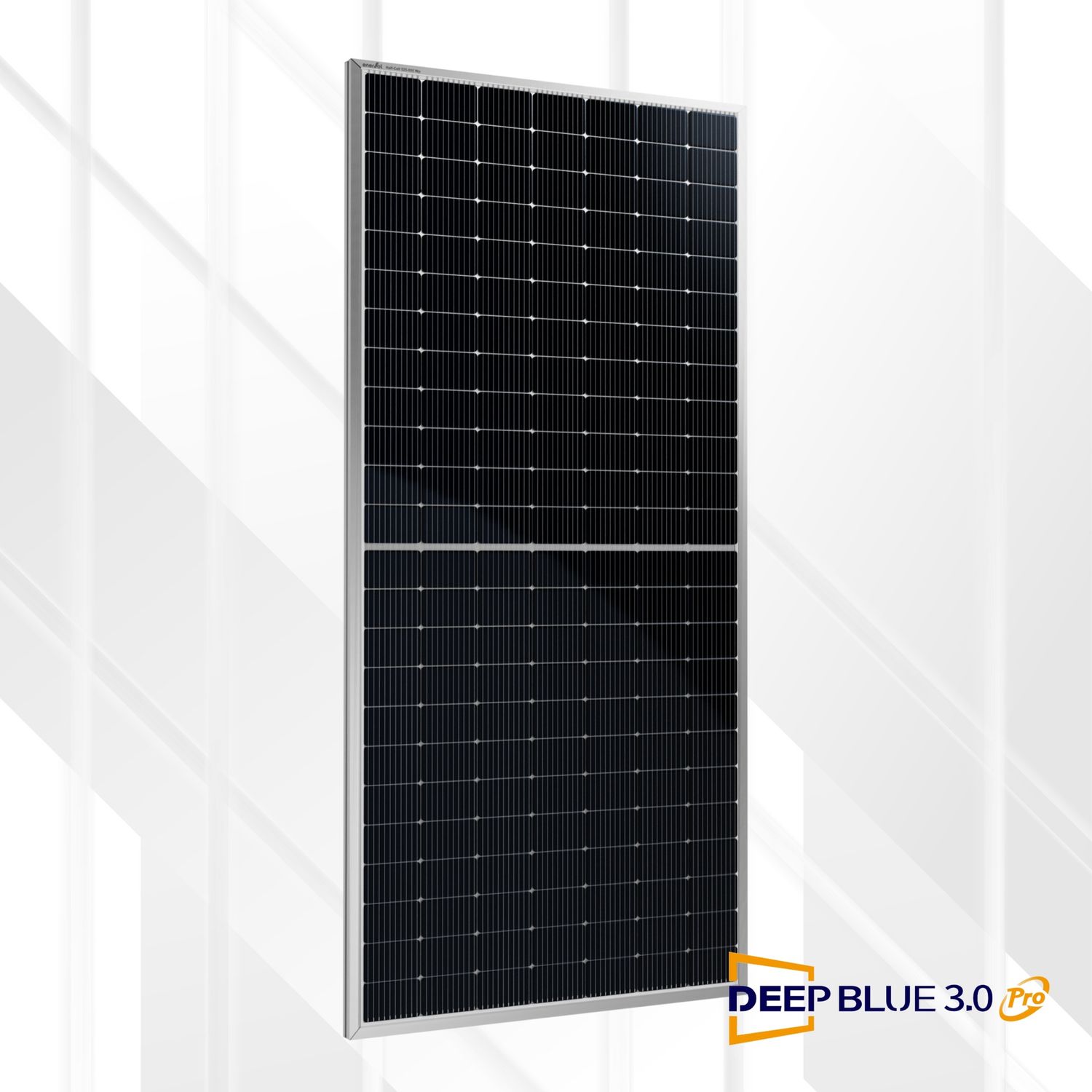

JA Solar 565W Mono PERC Half-Cell MBB Solar Panel

Introducing the JA Solar JAM72S30-565/LR/1500V, a high-performance 585W Mono Half-Cell solar module designed for maximum energy output and long-term reliability.

Key Features

• High Power Output: Delivers 585W of peak power thanks to advanced MBB Half-Cell technology and high-efficiency PERC cells.
• Enhanced Performance: Minimizes shading effects and resistive losses for consistent energy generation, even in less-than-ideal conditions.
• Superior Durability: Built with robust materials and designed to withstand harsh weather conditions and mechanical loads.
• Long-Term Reliability: Backed by a 12-year product warranty and a 25-year linear power output warranty for long-term peace of mind.
• Comprehensive Certifications: Meets stringent international standards (IEC 61215, IEC 61730) and is certified by ISO 9001, ISO 14001, and ISO 45001 for quality, environmental, and occupational health and safety management systems.
• Half-Cell Technology: Reduces resistive losses and improves shading tolerance for increased energy output.

Electrical Parameters at STC

• Rated Maximum Power (Pmax) [W]: 565
• Open Circuit Voltage (Voc) [V]: 49.77
• Short Circuit Current (Isc) [A]: 14.31
• Maximum Power Voltage (Vmp) [V]: 41.68
• Maximum Power Current (Imp) [A]: 13.56
• Module Efficiency [%]: 21.4
• Power Tolerance: 0-+5W
• Temperature Coefficient of Isc (α_Isc): +0.045%/°C
• Temperature Coefficient of Voc (β_Voc): -0.275%/°C
• Temperature Coefficient of Pmax (γ_Pmp): -0.350%/°C

Electrical Parameters at NOCT

• Rated Maximum Power (Pmax) [W]: 428
• Open Circuit Voltage (Voc) [V]: 47.09
• Short Circuit Current (Isc) [A]: 11.45
• Maximum Power Voltage (Vmp) [V]: 39.44
• Maximum Power Current (Imp) [A]: 10.85
• NOCT: 45±2°C

Operating Conditions

• Maximum System Voltage: 1500V DC
• Maximum Series Fuse Rating: 25A
• Maximum Static Load, Front: 3600Pa, 1.5x
• Maximum Static Load, Back: 1600Pa, 1.5x
• Fire Safety Class: Class C

Mechanical Characteristics

• Weight: 28kg
• Dimensions: 2333±2mm x 1134±2mm x 30±1mm
• No. of Cells: 144 (6x24)
• Connector: Stäubli MC4-EVO2A/MC4-EVO2
• Junction Box: IP68, 3 diodes
• Front Glass: 3.2mm

Benefits

• Increased Energy Production: Maximize your solar investment with higher power output and improved energy yield.
• Enhanced Reliability: Enjoy long-term performance and peace of mind with a comprehensive warranty and robust construction.
• Improved Shading Tolerance: Maintain high energy output even in partially shaded conditions.
• Reduced Resistive Losses: Minimize power losses for optimal energy conversion.
• Stronger Construction: Withstand high winds, snow loads, and other environmental stresses.
