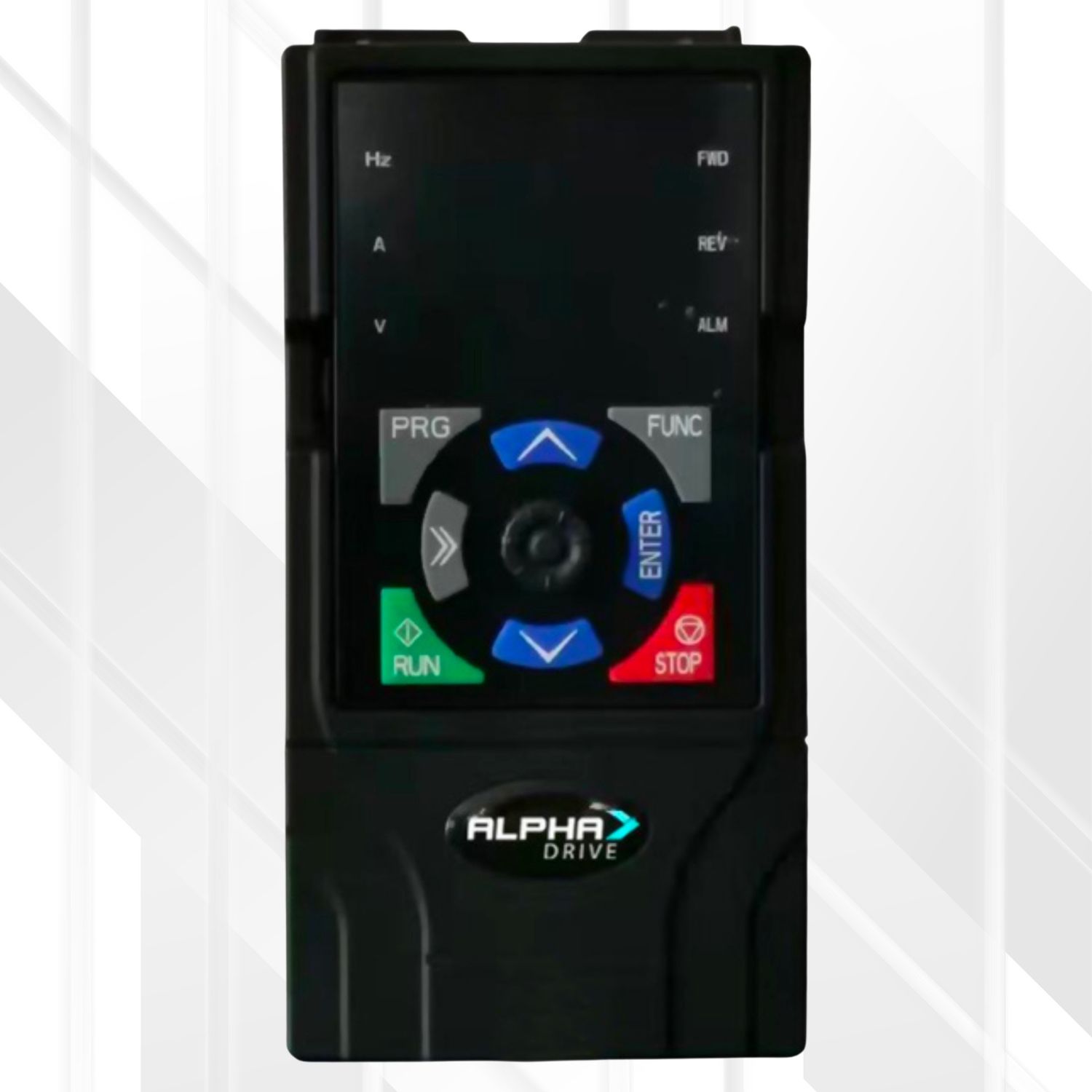

HV10 Variable Speed Drive 3PH 380V
SKU 24561
R0
Sold out
Price incl. VAT (15%) R0
Size
Please choose
Sold out
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
HV10 Variable Speed Drive 3PH 380V
Product Details
Brand: Alpha
HV10 Variable Speed Drive 3PH 380V
Alpha Drive HV10 G3 Series: Three-Phase 380V Inverters (0.75kW - 5.5kW)
- The Alpha Drive HV10 G3 series represents a line of robust and high-performance frequency inverters, specifically engineered for three-phase 380V-440V AC input applications.
- Covering a power range from 0.75kW (1HP) to 5.5kW (7.5HP), these drives are designed to global standards, offering exceptional motor control, reliability, and value.
- Key features include a rugged, compact design, advanced sensorless vector control, a built-in C3 EMC filter, an integrated braking unit, and a user-friendly removable keypad, making them an ideal solution for a diverse range of industrial motor control applications.
Features
- Three-Phase 380V-440V Input: Designed for AC 380V-440V (-15% +10%) three-phase power supply.
- Power Range: Models available from 0.75kW (1HP) to 5.5kW (7.5HP).
- Rugged & Compact Design: Durable construction with dimensions of 78mm (W) x 200mm (H) x 152mm (D) for all listed models.
- Flexible Installation: Features a removable keypad supporting remote installation; suitable for wall or cabinet mounting.
- Advanced Control Modes: Includes V/F Control, Advanced V/F Control, and powerful Sensorless Vector Control (SVC) for optimal motor performance and high torque.
- High Performance: Enhanced V/F algorithm, over-modulation for high output torque, and impressive high torque at low frequencies (e.g., 150% at 0.0Hz FVC, 150% at 0.3Hz SVC).
- Built-in C3 EMC Filter: Reduces electromagnetic interference, simplifying system compliance and often eliminating the need for external filters.
- Integrated Braking Unit: All models include a built-in braking unit for dynamic braking capability (external resistor may be required).
- Comprehensive Protection: Complete motor and inverter protection functions (over-current, over-voltage, under-voltage, overheating, phase failure, module failure, etc.).
- Programmable I/O:
- 5 Digital Inputs (DI)
- 1 Analog Input (AI: 0-10V / 0-20mA)
- 1 Open Collector Digital Output (DO)
- 1 Relay Output (DO) (Total 2 DOs with up to 17 selectable functions)
- 1 Analog Output (AO: 0-10V / 0-20mA)
- User-Friendly Operation: Removable keypad with clear display, intuitive parameter settings, and specialized application macros (e.g., constant pressure water supply, auto-energy saving).
- PID Control Functionality: Built-in PID controller for precise process control.
- RS485 Communication: Standard RS485 interface supporting multiple communication protocols for system integration.
- Efficient Cooling: Air-cooled with a built-in cooling fan ensures optimum operation, even in hot environments.
- Low Noise Operation: Adjustable carrier frequency (2.0 kHz to 20.0 kHz) to minimize motor noise.
Benefits
- Optimized for Industrial Power: Directly compatible with common 380V-440V three-phase industrial power supplies.
- Space-Efficient & Durable: The compact design saves panel space, while the rugged construction ensures longevity in industrial environments.
- Enhanced Motor Performance & Efficiency: Advanced control algorithms provide high starting torque, precise speed regulation, and efficient motor operation, contributing to energy savings.
- Reduced Setup Time & Costs: The integrated C3 EMC filter and braking unit minimize external components, simplifying installation and lowering overall system costs.
- Increased System Uptime & Reliability: Comprehensive protection features safeguard the motor and drive, significantly reducing downtime and enhancing operational stability.
- Flexible System Integration: Programmable I/Os and standard RS485 communication allow for straightforward integration into various automation and control systems.
- Simplified Commissioning: Pre-configured application macros streamline setup for common tasks like water supply or energy-saving modes.
- Improved Process Control: The built-in PID controller helps maintain process variables accurately, leading to consistent output and optimized energy usage.
4. In-Depth Technical Specifications
A. Model-Specific Ratings (HV10 G3 Series - Three Phase 380-440V Input)
| Model | Power (kW) | Approx. Power (HP) | Input Current (A) | Output Current (A) |
|---|---|---|---|---|
| HV10-R75G3 | 0.75 | 1.0 | 3.4 | 2.1 |
| HV10-1R5G3 | 1.5 | 2.0 | 5.0 | 3.8 |
| HV10-2R2G3 | 2.2 | 3.0 | 5.8 | 5.1 |
| HV10-004G3 | 4.0 | 5.5 | 10.5 | 9.0 |
| HV10-5R5G3 | 5.5 | 7.5 | 14.6 | 13.0 |
B. Common Specifications (HV10 G3 Series)
| Feature Category | Specification |
|---|---|
| INPUT POWER | |
| Rated Voltage / Frequency | Three Phase AC 380V-440V (-15% +10%), 50/60Hz |
| OUTPUT | |
| Output Voltage | Three Phase, 0 - Input Voltage (e.g., 0-440V) |
| Output Frequency | 0 - 999.9Hz (Low frequency mode: 0-300Hz; High frequency mode: 0-3000Hz) |
| Overload Capacity (G-Type) | 110% long-term, 150% for 1 minute, 200% for 4 seconds |
| CONTROL PERFORMANCE | |
| Control Modes | V/F Control, Advanced V/F Control, Sensorless Vector Control (SVC) |
| Frequency Setting Resolution | Analog: 0.1% of max output frequency; Digital: 0.1Hz |
| Frequency Accuracy | Analog: Within 0.2% of max output frequency; Digital: Within 0.01% |
| Torque Boost (V/F) | Manual: 0.0 - 30.0% of rated output; Automatic boost available |
| Sensorless Vector Control | Starting Torque: 150% rated torque at 0.5Hz (SVC typical). Speed Steady-State Accuracy: ≤ 0.2% rated sync. speed. Torque Response: ≤ 20ms. |
| High Torque Low Frequency | FVC: 150% at 0.0Hz; SVC: 150% at 0.3Hz |
| Carrier Frequency | 2.0 kHz - 20.0 kHz (Adjustable) |
| Multi-Stage Speed | 7-stage programmable |
| PID Control | Built-in |
| AVR (Automatic Voltage Reg.) | Yes, with undervoltage suppression function |
| BRAKING | |
| Built-in Braking Unit | Yes |
| DC Braking (Stop) | Start Freq: 0.00 - Upper Limit Freq.; Time: 0.0-30.0s; Current: 0.0%-50.0% of rated motor voltage equivalent |
| I/O & COMMUNICATION | |
| Digital Inputs (DI) | 5 programmable |
| Analog Inputs (AI) | 1 programmable (DC 0-10V / 0-20mA) |
| Digital Outputs (DO) | 1 Open Collector Output, 1 Relay Output (TA,TC) (Up to 17 selectable functions) |
| Analog Outputs (AO) | 1 programmable (0-20mA or 0-10V selectable) |
| Communication | RS485 (Standard, multiple protocols supported, linkage synchronous control function) |
| PROTECTIONS | Over-current, over-voltage, under-voltage, module failure, electronic thermal relay, overheating, short circuit, input/output phase failure, abnormal motor tuning, internal memory failure, etc. |
| ENVIRONMENTAL | |
| Ambient Temperature | -10°C to +40°C (Derate for +40°C to +50°C) |
| Ambient Humidity | 5% - 95% RH (No condensation) |
| Altitude | Up to 1000m. Derate 10% for every 1000m above. |
| Surrounding Environment | Indoor (no direct sunlight, corrosion, flammable gas, oil mist, dust, etc.) |
| MECHANICAL | |
| Protection Grade | IP20 |
| Cooling | Air-cooled with built-in fan control |
| EMC Filter | Built-in C3 EMC Filter |
| Dimensions (W x H x D mm) | 78 x 200 x 152 mm |
| Installation | Wall mounted, or cabinet mounted |
Ideal Use
The Alpha Drive HV10 G3 series (0.75kW - 5.5kW, 380V) is excellently suited for a wide array of industrial applications, including:
- Pumps & Fans: Efficient control for HVAC systems, water circulation, industrial ventilation, and process pumping.
- Conveyor Systems: Smooth start/stop, precise speed control for material handling and assembly lines.
- Machine Tools: Spindles, feeds, and auxiliary motors on lathes, mills, and grinders.
- Textile Machinery: Control for spinning, weaving, and finishing processes.
- Packaging Machinery: Synchronization and precise motion for wrapping, filling, and sealing equipment.
- Food Processing Equipment: Mixers, agitators, slicers, and small conveyors.
- General Purpose Motor Control: Versatile for a broad range of standard three-phase motor applications within its power range.
- Constant Pressure Water Supply Systems: Utilizes dedicated macro for simplified setup.
- Energy Saving Applications: Auto-energy saving macro and efficient operation help reduce power consumption.
Tips
- Correct Sizing: Always ensure the drive's power (kW/HP) and current ratings are appropriate for the connected three-phase motor and application load.
- Installation & Ventilation: Mount the drive vertically in a clean, dry, and well-ventilated cabinet or on a wall. Ensure adequate spacing around the unit for airflow as per manual recommendations.
- Grounding: Proper grounding of the drive (PE terminal) and motor is essential for safety, noise reduction, and reliable EMC performance.
- Braking Resistor: For applications with high inertia or frequent deceleration, an appropriately sized external braking resistor must be connected to the P+ and PB terminals. Consult the manual for sizing guidelines.
- Parameter Configuration: Utilize the auto-tuning function (Self Determination of Motor Parameters) for optimal motor matching. Explore application-specific macros to expedite setup for common tasks.
- Remote Keypad Usage: If installing the drive in an enclosure or hard-to-reach location, the removable keypad can be mounted externally for convenient monitoring and parameter adjustments.
- Environmental Conditions: Adhere to the specified ambient temperature, humidity, and altitude limits. Derate the drive's output if operating conditions exceed these limits.
