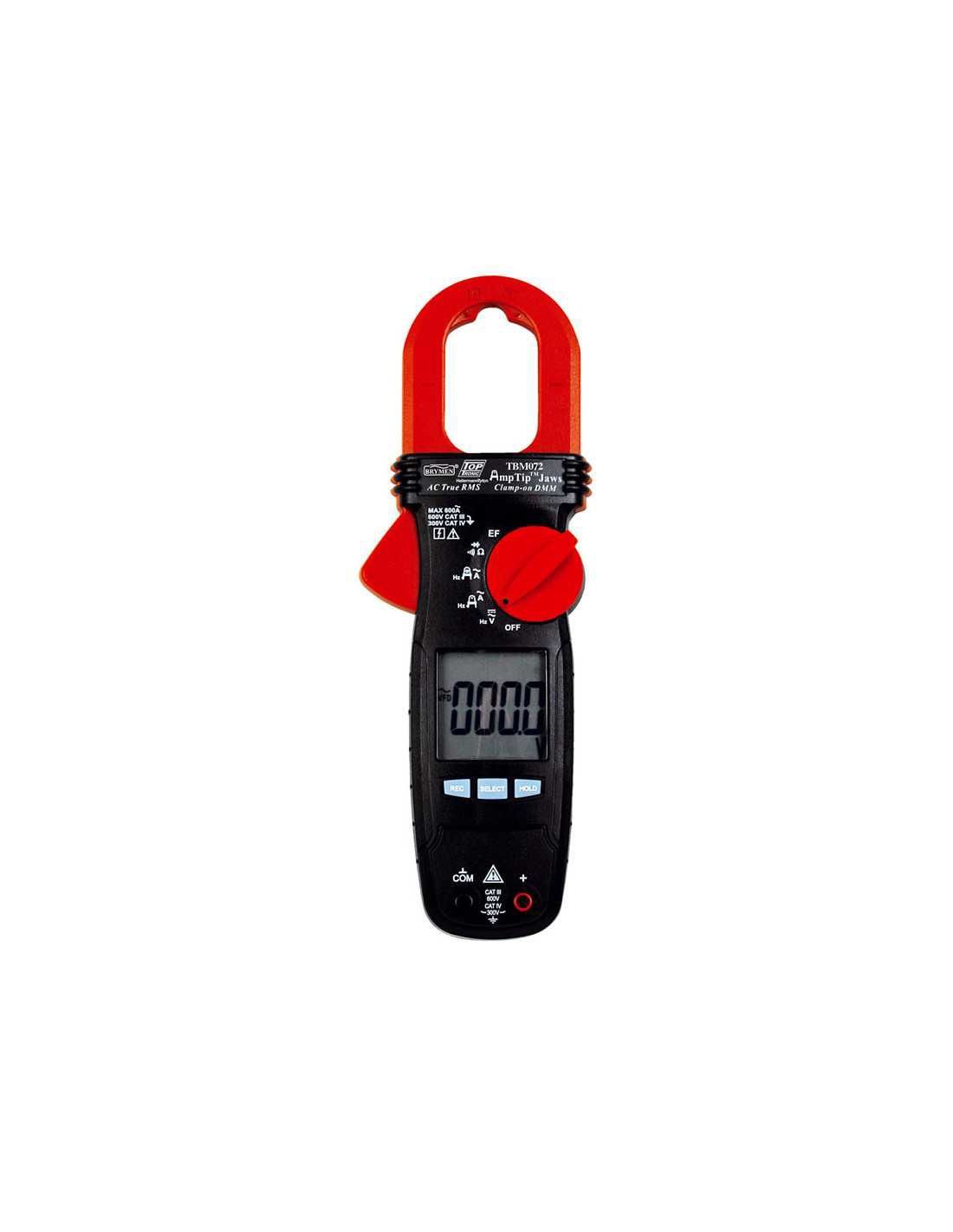

HellermannTyton Clamp Meter Digital 600A AC True RMS 30mm Jaw

This HellermannTyton Clamp Meter is a versatile and reliable tool designed for professional electricians and technicians who require accurate and safe electrical measurements. It is equipped with advanced features like True RMS measurement and a compact design, making it ideal for various electrical tasks.

Key Features

• True RMS Measurement: Ensures accurate readings even in non-sinusoidal waveforms.
• 600A AC Current Measurement: Measures AC current up to 600 Amps.
• Voltage Measurement: Measures AC/DC voltage.
• Resistance Measurement: Measures resistance values.
• Diode Test: Tests diodes for proper functionality.
• Continuity Test: Checks for continuity in circuits.
• Non-Contact Voltage Detection (NCV): Detects the presence of voltage without physical contact.
• Backlit Display: Easy to read in low-light conditions.
• Auto Power Off: Conserves battery power.
• 30mm Jaw Opening: Allows for measurement of medium-sized conductors.
• Compact and Lightweight Design: Easy to handle and maneuver in tight spaces.
• Robust Design: Built to withstand the demands of professional use.

Specifications (TBM072)

• MAX AC Current (A): 600
• MAX DC Current (A): 600
• MAX AC Voltage (V): 600
• MAX DC Voltage (V): 600
• MAX Resistance (Ω): 60k
• Jaw Size (mm): 30
• Temperature (°C): 400
• Continuity: Yes
• Frequency (Hz): 100kHz
• Capacitance (F): 2500µ
• Diode: Yes
• Display (Counts): 6000
• Backlight: Yes
• Auto-holding: Yes
• Data Holding: Yes
• MIN/MAX Display: Yes
• AmpTip™: Yes
• TRUE RMS: Yes
• Lifetime Warranty: Yes
• Safety Category: CAT III 600V
• Dimensions (mm): 217 x 76 x 37
• Weight (g): 186

Benefits

• Versatility: Measures a wide range of electrical parameters.
• Accuracy: True RMS measurement ensures accurate readings in various conditions.
• Durability: Robust construction for long-lasting performance.
• Ease of Use: User-friendly interface with clear display and intuitive operation.
• Safety: Designed with safety features to protect the user.
