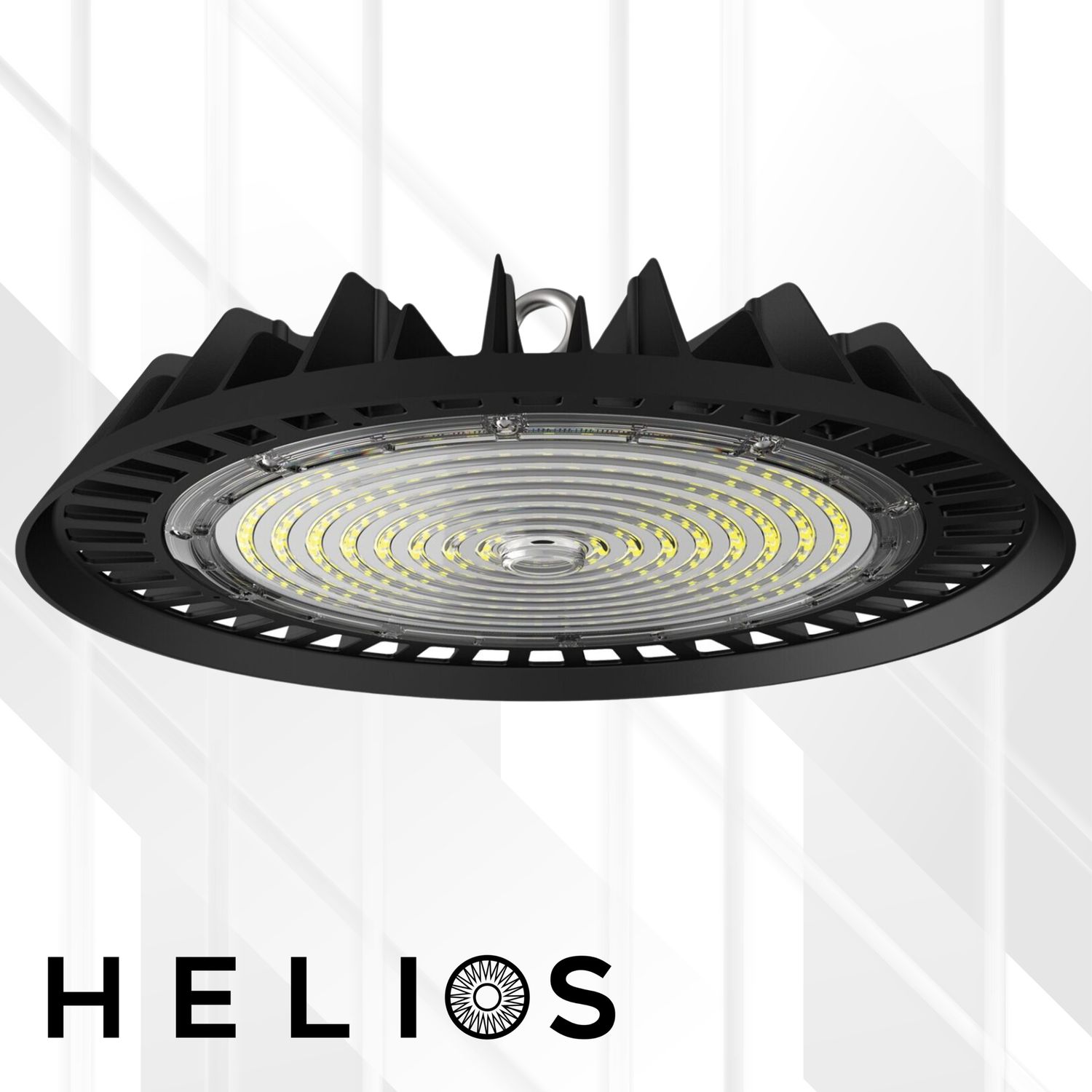

Helios 90D Highbay 5700K 4kV S-Pro

• The HELIOS IP65 UFO High Bay series offers a range of robust and energy-efficient industrial-grade lighting solutions designed for high-ceiling applications.
• Available in 100W (HB401), 150W (HB404), and 200W (HB407) power options, these high bays deliver exceptional brightness and clarity with a consistent 5700K industrial cool white light.
• Their IP65 rating ensures superior protection against dust and water ingress, making them ideal for demanding indoor and covered outdoor environments.
• Featuring excellent thermal performance with multi-circulation aluminium cooling fins, high-quality Philips 2835 LED chips, and built-in 4kV surge protection, the HELIOS UFO High Bay series offers reliable, long-lasting, and efficient illumination.
• Installation is straightforward with a standard hanging mechanism (ring and bracket), and a 1m insulation cable is included for the 150W and 200W models.
• An optional stainless steel swivel bracket is available for adjustable mounting

Features

• Available in 100W, 150W, and 200W Power Options: Provides flexibility to choose the appropriate wattage for different lighting requirements and ceiling heights.
• Industrial Spec Cool White 5700K: Delivers bright, clear, and focused illumination ideal for industrial and commercial tasks.
• High Lumen Output:
  • 100W: 14,000 Lumens
  • 150W: 21,000 Lumens
  • 200W: 28,000 Lumens
• High Lumen Efficacy (140lm/W): Maximizes light output while minimizing energy consumption across all models.
• IP65 Rated: Provides excellent protection against dust and water ingress, suitable for demanding environments.
• Excellent Thermal Performance with Multi-Circulation Aluminium Cooling Fins: Efficient heat dissipation ensures a longer lifespan and consistent performance.
• Industrial Grade Components with 4kV Surge Protection: Protects the luminaire from voltage spikes, enhancing reliability in industrial settings.
• Standard Hanging Mechanism (Ring & Bracket): Ensures easy and secure installation.
• Complimentary 1m Insulation Cable (3-core) for 150W & 200W: Ensures easy and safe wiring for these models.
• High CRI (>83): Offers excellent clarity and colour rendering, improving visibility and safety across all models.
• Wide 90° Beam Angle: Allows for maximum surface coverage and efficient light distribution across all models.
• Long Lifespan (L70B50 Rating): Designed for extended operational life, reducing maintenance costs across all models.
• High Power Factor (>0.95): Ensures efficient use of electrical power across all models.
• Non-Dimmable: Designed for consistent, full-brightness operation across all models.
• 3 Year Warranty: Provides peace of mind regarding product quality and reliability across all models.
• Energy Efficiency Class A: Contributes to energy savings across all models.
• Optional Stainless Steel Bracket (HB400 - Sold Separately): Offers adjustable mounting options for all models.

Benefits

• Energy Efficient: High lumen efficacy significantly reduces energy consumption and operating costs.
• Durable and Reliable: IP65 rating and robust construction ensure long-lasting performance in demanding environments.
• Bright and Clear Illumination: High lumen output and cool white light improve visibility and safety.
• Hassle-Free Installation: Standard hanging mechanism and included cable (for 150W/200W) simplify the installation process.
• Surge Protection: Built-in 4kV surge protection enhances the luminaire's lifespan and reliability.
• Versatile Applications: Suitable for a wide range of high-ceiling industrial and commercial spaces.
• Excellent Thermal Management: Ensures consistent performance and prolongs the lifespan of the LED chips.
• Optional Adjustable Mounting: The swivel bracket (sold separately) provides flexibility in directing light.

Technical Specifications

Ideal Use

The HELIOS IP65 UFO High Bay series is an ideal lighting solution for a variety of high-ceiling industrial and commercial applications, including:

• Factories and Manufacturing Plants: Providing bright and reliable general lighting for production areas and assembly lines of varying sizes.
• Warehouses and Distribution Centers: Offering energy-efficient illumination for storage aisles and loading docks with different ceiling heights.
• Gymnasiums and Sports Arenas: Delivering high-intensity lighting for optimal visibility during sporting activities in venues of various sizes.
• Workshops and Garages: Providing clear and focused light for detailed tasks and general illumination in high-ceiling areas.
• Large Retail Spaces and Supermarkets: Offering bright and consistent lighting for product displays and customer areas in spaces with higher ceilings.
• Exhibition Halls and Convention Centers: Providing powerful illumination for indoor spaces of different scales.
• Covered Outdoor Areas: Suitable for use in covered loading bays, canopies, and other sheltered outdoor environments where dust and moisture protection is needed.

Choose the appropriate wattage based on your ceiling height and desired light levels. For adjustable lighting direction, consider the optional Stainless Steel Bracket (HB400).

Professional installation by a qualified electrician is recommended for safety and optimal performance.
