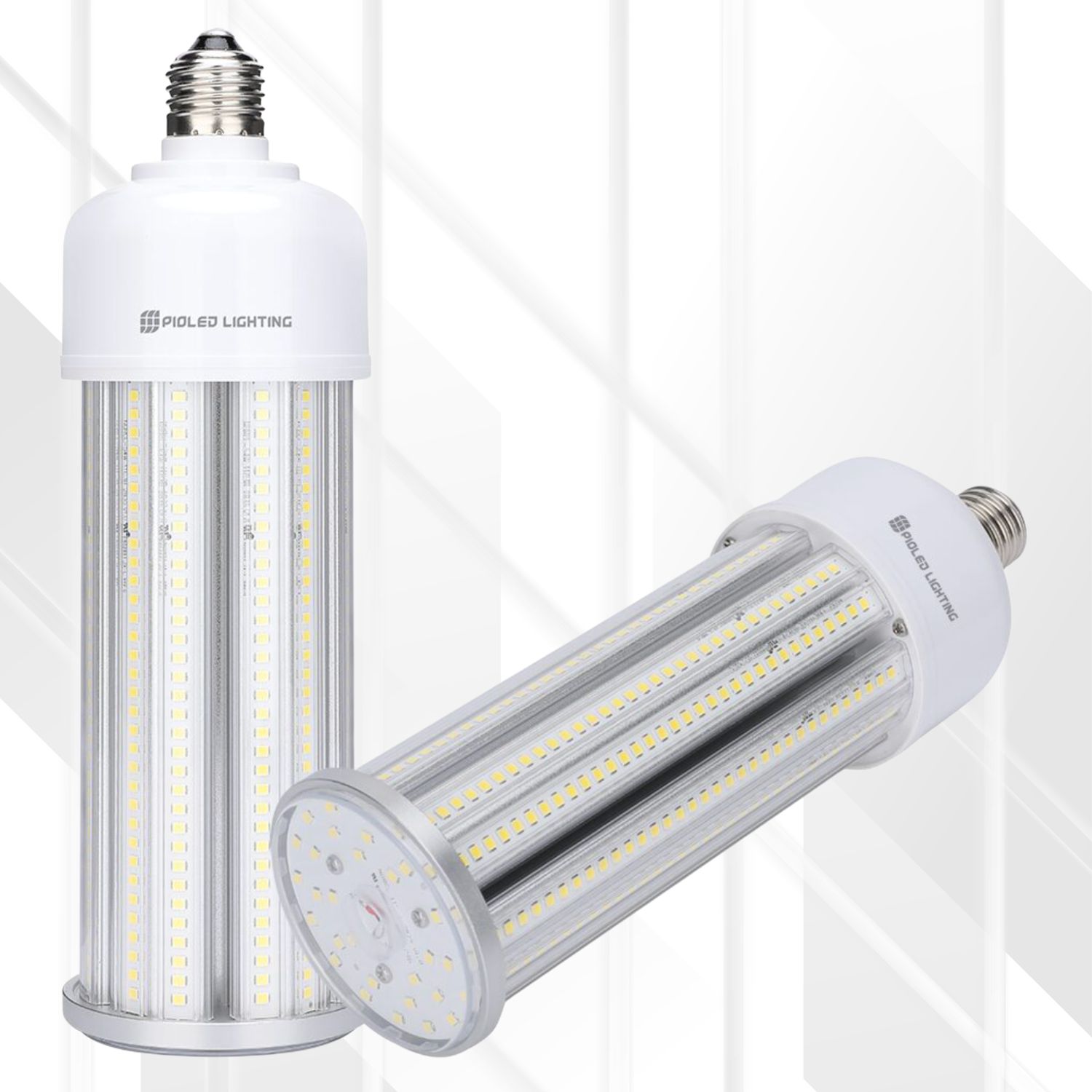

Heavy Duty 54W IP44 Corn Bulb

• The PioLED Lighting 54W Heavy Duty Corn Lamp offers a powerful and energy-efficient lighting solution, ideal for replacing traditional high-intensity discharge (HID) and compact fluorescent (CFL) lamps.
• Designed with a unique cylindrical structure featuring multiple LED chips arranged in a "corn cob" configuration, this lamp provides a wide 360-degree illumination angle, ensuring uniform light distribution.
• Its robust aluminium housing facilitates excellent heat dissipation, contributing to a long lifespan and reliable performance.
• This versatile lamp is available in a bright 5700K industrial white colour and is compatible with E27 or E40 sockets (with the included adaptor), making it a simple and efficient upgrade for various residential and commercial applications.
• Backed by a 5-year warranty, this heavy-duty corn lamp offers exceptional value and longevity.

Features

• 54W Power Consumption: Provides significant energy savings compared to traditional HID and CFL lamps.
• 5700K Industrial White Light (Stock Code - B033): Delivers a bright and clear light, ideal for task-oriented environments.
• Long Lifespan (L80B10 @ 50,000 Hours): Reduces the need for frequent replacements, lowering maintenance costs.
• IP44 Rated: Offers protection against solid objects larger than 1mm and splashing water from any direction, making it suitable for damp environments.
• Wide 360° Beam Angle: Ensures omnidirectional light distribution, eliminating dark spots.
• High Impact Protection Grade (IK04): Provides resistance against impacts, enhancing durability.
• Wide Input Voltage (100V-277V): Compatible with a broad range of electrical systems.
• Surge Protection (3kV): Protects the lamp against voltage spikes, increasing its lifespan.
• High Power Factor (>0.90): Ensures efficient use of electricity.
• High CRI (>80): Provides accurate colour rendering, enhancing visual comfort and task accuracy.
• High Lumen Output (7,800 Lumens): Delivers bright and effective illumination.
• High Lumen Efficiency (145 lm/W): Maximizes light output while minimizing energy consumption.
• Multiple LED Chips (2835 SMD, 429 LEDs): Ensures bright and uniform light output.
• Epistar LED Chip Brand: Utilizes reliable and high-quality LED technology.
• Non-Dimmable: Designed for consistent, full-brightness operation.
• Low UGR (<18): Minimizes glare, enhancing visual comfort in working environments.
• Compatible with E27 or E40 Sockets: Features a standard E27 base and includes an adaptor (B033a) for E40 sockets, offering versatile installation options.
• No Flicker (Y/N): Ensures stable and comfortable light output.
• Can be Installed Vertically or Horizontally: Provides flexibility in fixture design and application.
• Heavy Duty Aluminium Housing: Offers excellent heat dissipation and physical protection.
• 5 Year Warranty: Provides peace of mind regarding the product's quality and durability.

Benefits

• Significant Energy Savings: Reduces electricity consumption compared to traditional lighting technologies.
• Long Lifespan: Minimizes replacement frequency and maintenance costs.
• Wide and Uniform Illumination: 360° beam angle eliminates shadows and dark spots.
• Durable and Robust: IP44 and IK04 ratings ensure reliable performance in various environments.
• Versatile Installation: Compatible with both E27 and E40 sockets and can be installed in different orientations.
• High Light Quality: High lumen output, efficacy, and CRI provide bright, efficient, and accurate colour rendering.
• Enhanced Visual Comfort: Low UGR and flicker-free operation minimize eye strain.
• Reliable Performance: Backed by a 5-year warranty.

Technical Specifications

• Wattage: 54W
• Colour Temperature & Stock Code: 5700K (Industrial Spec) - B033
• Operating Temperature: -45°C to +45°C
• Life Span / L80 Rating: L80B10 @ 50,000 Hours
• IP Rating: IP44
• Beam Angle: 360°
• Impact Protection Grade: IK04
• Input Voltage: 100V - 277V
• Input Current: 0.6A
• Output Voltage: 33V
• Surge Protection: 3kV
• Power Factor: >0.90
• CRI: >80
• Lumen Output: 7,800 Lumens
• Lumen Efficiency: 145 lm/W
• LED Chips: 2835 SMD
• LED Chips Qty: 429
• LED Chip Brand: Epistar
• Dimmable: Non-Dimmable
• Dimmable Range (Dali/Trailing/Leading): None
• UGR: ≤18
• Flicker (Y/N): No Flicker
• THD: <10%
• TA & TC: TA=45°C / TC=90°C
• IES (Yes or No): Yes
• Class Rating: Class II
• Energy Efficiency: >90%
• Certification: CE, RoHS, TM21
• Accessories: B033a - E27 to E40 adaptor (Included)
• Weight: 1060g
• Housing Material: Aluminium
• Product Dimensions (mm): 80 (Diameter) x 260 (Length)
• Cable Length: None (Direct socket connection)
• Mounting Option: E27 / E40 (Adaptor Included)
• Bracket Material: None (Socket dependent)
• Storage Temp: -20°C to +45°C
• Carton Size (mm): 610 x 305 x 380
• QTY/CTN: 15
• Net Weight (per carton): 15.9 kg
• Gross Weight (per carton): 16.7 kg
• Warranty: 5 Years

Ideal Use

The PioLED Lighting 54W Heavy Duty Corn Lamp is an excellent replacement for traditional lamps in a wide range of residential and commercial applications, including:

• Post Top Lighting: Providing omnidirectional illumination for outdoor pathways and area lighting.
• Low Bay Lighting: Ideal for illuminating warehouses, factories, and workshops with lower ceiling heights.
• High Bay Lighting (as a replacement): Suitable for retrofitting existing high bay fixtures to achieve energy savings and improved light quality.
• Street Lighting (in enclosed fixtures): Can be used in suitable enclosed street light fixtures.
• Security Lighting: Providing bright and wide illumination for enhanced security.
• Residential Garages and Workshops: Offering powerful and uniform lighting for work areas.
• Commercial Lighting: Suitable for retail spaces, supermarkets, and other commercial environments requiring bright and efficient lighting.
• Interior High Bay Applications: For illuminating gymnasiums, large halls, and other indoor spaces with high ceilings.

Its compatibility with E27 and E40 sockets (with included adaptor) makes it a versatile upgrade option.

Ensure the fixture is adequately ventilated to maximize the lamp's lifespan. Professional installation is recommended for safety.
