Freedom Won eTower LiFePO4 5kWh Battery
SKU 20746
R23 265.97
Price incl. VAT (15%) R3 034.69
Out of stock, available for pre-order
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

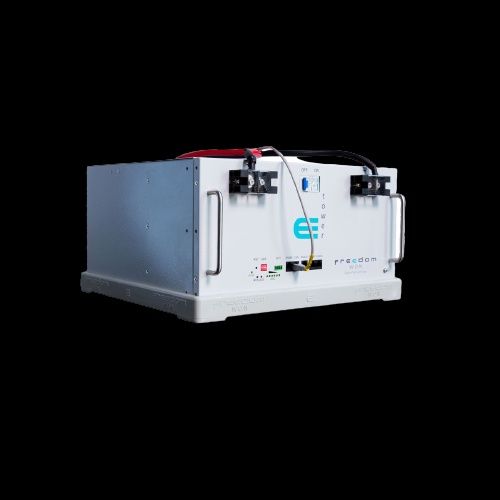

Freedom Won eTower LiFePO4 5kWh Battery
Product Details
Brand: Freedom Won
Weight: 45.00 kg
Overview
Accessories Included:
- 1 x 1.8m red 35mm battery cable with m6 lug
- 1 x 1.8m black 35mm battery cable with m6 lug
- 2 x busbar connectors (x1 heatshrink in black and x1 heatshrink in red)
- 1 x inter modular comms cable
- 1 x 1.8m long comms cable for Victron Inverters
- 1 x 1.8m long comms cable for Type 1 inverters (eg. Sunsynk, and Solis).
- 1 x 1.8m long RS485 comms cable this is for Voltronic inverters (Kodak) communication
Freedom Won’s LiTE technology incorporates the highest quality LiFePO4 cells with an advanced battery management system (BMS) and protection features, ensuring an ultra-safe battery with high power capabilities.
The Freedom Won eTower is an economical and modular Life PO4 Solution for residential and light commercial applications
Features
Freedom Won eTower LiFePO4 5kWh Battery
- 5kWh battery with a 90% DoD
- Stackable up to 4 Units (20kWh Total)
- Wide range Inverter compatibility
- 10-Year Limited warranty
- Module interface pedestal included (no cabinet required)
- 5U module design
- 4000 charge and discharge cycles

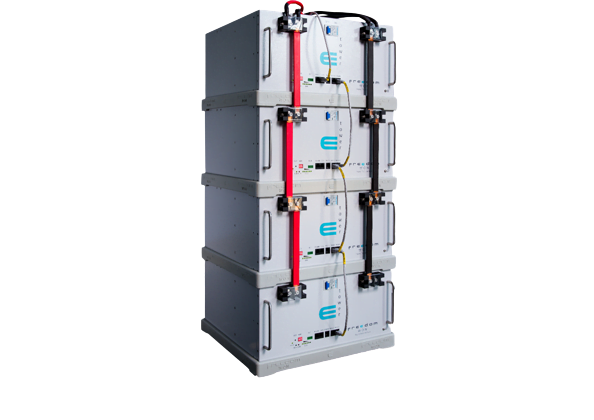

- Stacked horizontally onto each other to form a tower with pedestals included, (one per module) or 19 inch rack mounted with brackets (cabinet excluded).
- Vertical mounting on floor or wall (shelf/bracket) with terminals facing upwards
- Comes complete with One e5000 plastic pedestal for tower stacking (cleats for 19” rack not included but available from Freedom Won if required).
Communication and Control Interfaces
Freedom Won eTower LiFePO4 5kWh Battery
- CAN Bus (RJ45 Socket x 1) – for interfacing with compatible inverters and system controllers (the eTower is fully compatible with all common CAN bus compatible brands).
- RS485 (RJ45 Socket x 1) – for interfacing with the Voltronics Axpert range of inverters equipped with a RS485 lithium battery interface and the applicable firmware.
- RS232 (RJ45 Socket x 1) – for interfacing with a PC for firmware and setting updates (only by Freedom Won technicians).
- RS485 (RJ45 x 2) – for the communication connection of parallel batteries up to four in tower.
- Digital Outputs x 2 – for controlling external relays based on pre-set functions.
Protection
Freedom Won eTower LiFePO4 5kWh Battery
Internal electronic protection including overcurrent, cell under and over voltage, temperature out of range, weak cell detection, minimum SOC control, active voltage based charge current limiting.
Human Interface
Freedom Won eTower LiFePO4 5kWh Battery
- State of Charge Display (0 to 100% indicated by six green LED’s)
- Alarm LED (red)
- Run LED (green)
- On LED (green)
- BMS Reset Button
- Main On/Off Switch
- Serial RS232 Plug for Programming via PC (by Freedom Won only)
- Dip Switch block for selecting module addresses.
Installation Method
Freedom Won eTower LiFePO4 5kWh Battery
Stacked horizontally onto each other to form a tower with pedestals included, (one per module) or 19 inch rack mounted with brackets (cabinet excluded). Vertical mounting on floor or wall (shelf/bracket) with terminals facing upwards also acceptable. Generally up to 4 x e5000’s per system (for larger capacity requirements, see Freedom Won LiTE ranges)
