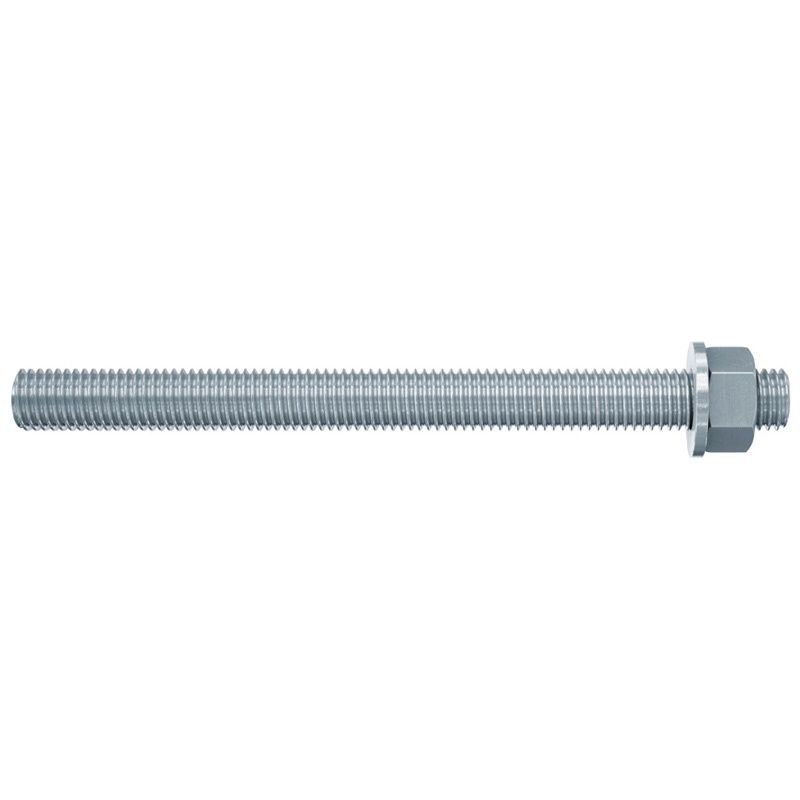

FIS A M12x105 Threaded Rod Galvanised Steel GR5.8 (20854)

Description

The fischer threaded rod FIS A is a system component for use with the fischer injection mortars FIS PM, FIS SB, FIS EM Plus, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS GREEN. In accordance with the relevant approval of the injection mortar used, the threaded rod is suitable for the fixation of steelwork constructions, staircases, and machines into numerous building materials both inside and outside. The extensive assortment in diameters M6 – M30, different lengths, and different steel grades enables extremely diverse applications. The approvals of the various injection mortars must be observed.

Advantages

The threaded rod FIS A can be used with almost every fischer injection mortar (except Highbond special mortar FIS HB). It can be individually selected based on requirements, thus allowing for a wide range of applications.
The wide range of approved threaded rods FIS A from M6 to M30 allows for various applications.
Please refer to the approvals of the injection mortar used.

Applications

Ideal for installing:

•Anchorings with the injection mortars FIS PM, FIS SB, FIS EM Plus, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS GREEN

Specifications

In connection with several fischer injection mortars the threaded rod FIS A is approved or suitable for different building materials.
Permissions: ETA-02/0024, ETAG 001-5; DoP 0188; DoP No. 0007; DoP No. 0072; DoP No. 0094; ESR-3572

The threaded rod FIS A is suitable for pre-positioned and push-through installation. FIS A is set manually into the drill hole, by lightly rotating it until it reaches the drill hole base.

** Follow this link for technical documents and installation information: https://www.fischer-international.com/en/products/chemical-fixings/anchor-rod-internal-thread-anchor/threaded-rod-fis-a
