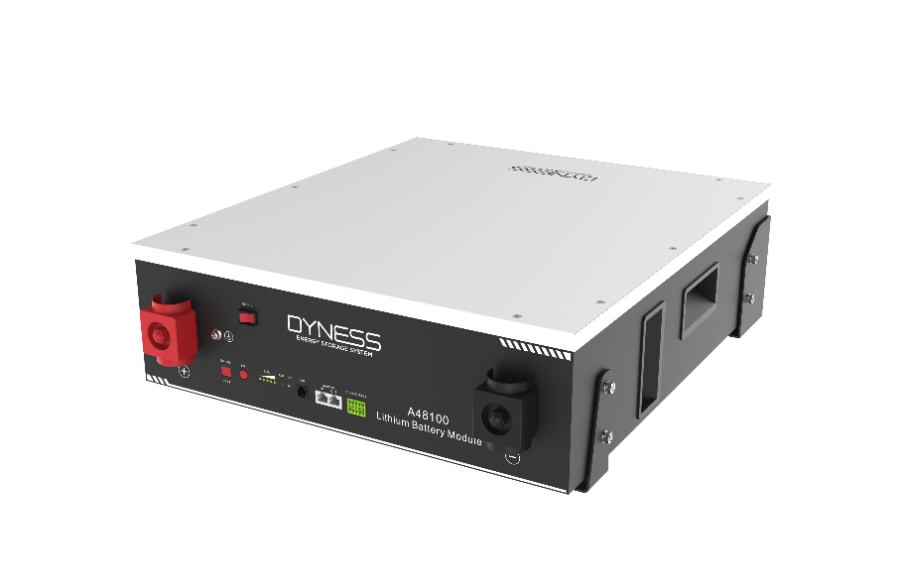

Dyness Battery Lithium Ion 4.8kWh 48V 100Ah

This 4.8kWh LFP module supports both floor- and wall-mounted installations. It is designed with OTA function for remote update and monitoring. Up to 30 modules can be connected in parallel, meeting the needs of more users and enabling flexible expansion.

General Data
• Model: A48100 (0.5C)
• Cell Technology: Li-ion(LFP)
• Battery Module Capacity: 4.8KWH
• Battery Module Voltage: 48VDC
• Battery Module Capacity: 100AH
• Battery Module Cell Quantity: 15 Cell
• Battery Cell Capacity: 320WH
• Battery Cell Voltage: 3.2VDC
• Battery Cell Capacity: 100AH
• Battery Module Cell Quantity in Series: 15 PCS
• Battery Module Charge Voltage: 54.75VDC
• Battery Parallel Capacity: 40 Units
• Communication: CANBUS / RS485
• Mounting: Wall Mount & Rack Mount

Battery Charge / Discharge Current
• 50A Recommended
• 75A Maximum
• 100A Peak @ 15S

Environment Limit
• Charge Condition: 0°C to 55°C
• Discharge Condition: -20°C to 55°C
• Relative Humidity: 5% to 85% (Non Condensing)
• Enclosure Protection: IP20
