Simple Direct-On-Line (DOL) starting method.
Suitable for AC 50Hz or 60Hz power systems.
Rated for operating voltages up to 660V/690V AC.
Models available for 5.5kW, 7.5kW, and 11kW motor ratings (at 400V, AC3 duty).

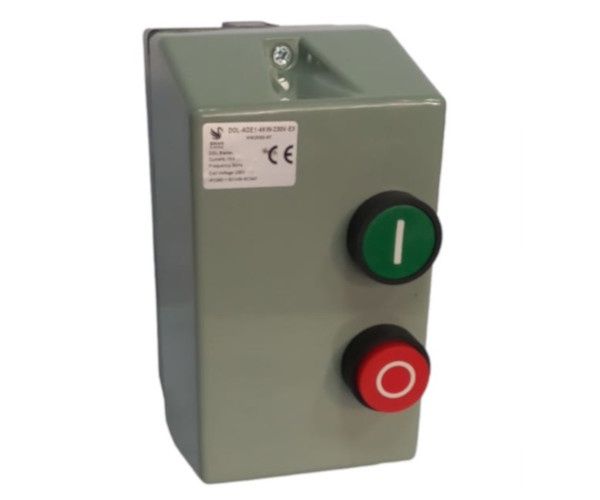

Enclosed unit with integrated Start (Green) and Stop (Red) push buttons.
Designed for frequent starting and stopping cycles.
Robust enclosure for component protection.
Excludes thermal overload relay (Requires separate purchase and installation).
Cost-Effective Control: Provides a simple and economical method for basic motor control.
Ease of Use: Intuitive push-button operation requires minimal training.
Versatile Application: Compatible with standard industrial power supplies (50/60Hz, up to 660V/690V).
Flexibility in Protection: Excluding the overload relay allows for customization with a separate relay precisely matched to the motor's requirements or integration into systems with existing protection.
Reliable Operation: Built for the demands of frequent motor starting in industrial environments.
Component Safety: The enclosure protects internal components from dust and accidental contact.
Specification | DOL-ADE1-5.5KW-400V-EX | DOL-ADE1-7.5KW-400V-EX | DOL-ADE1-11KW-400V-EX |
---|---|---|---|
Manufacturer | Swan Electric | Swan Electric | Swan Electric |
Series | ADE1 | ADE1 | ADE1 |
Type | Enclosed DOL Starter (Excl. Overload) | Enclosed DOL Starter (Excl. Overload) | Enclosed DOL Starter (Excl. Overload) |
Stock Code | FC000654 | FC000657 | FC000659 |
Internal Model Ref. | ADE1 D212 | ADE1 D218 | ADE1 D225 |
Rated Current (A) | 12 A | 18 A | 25 A |
Power @ 380/400V (AC3) | 5.5 kW | 7.5 kW | 11 kW |
Max Power @ 220/233V (AC3) | 3 kW | 4 kW | 5.5 kW |
Max Power @ 415V (AC3) | 5.5 kW | 9 kW | 11 kW |
Max Power @ 440V (AC3) | 5.5 kW | 9 kW | 11 kW |
Max Power @ 500V (AC3) | 7.5 kW | 10 kW | 15 kW |
Max Power @ 660/690V (AC3) | 7.5 kW | 10 kW | 15 kW |
Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
Max Operating Voltage | 690V AC | 690V AC | 690V AC |
Recommended Thermal Relay (Not Included) | LR2 D1314 | LR2 D1316 | LR2 D1321 / LR2 1322 |
Approx. Dimensions (W x H x D) | 140 x 150 x 88 mm | 140 x 150 x 88 mm | 142 x 185 x 101 mm |
Mounting Holes (Dia.) | 2 x Ø5.5 mm (PE13/PE16) | 2 x Ø5.5 mm (PE13/PE16) | 2 x Ø5.5 mm (PE16) |
Enclosure | Durable enclosure with Start/Stop buttons | Durable enclosure with Start/Stop buttons | Durable enclosure with Start/Stop buttons |
Simple start/stop control for three-phase AC motors.
Driving machinery such as pumps, fans, conveyors, compressors, and workshop tools.
Industrial, agricultural, and commercial applications.
Installations where specific or external motor overload protection is preferred or already implemented.
Applications requiring frequent motor starting.
CRITICAL: Select and Install Overload Protection: These models DO NOT include a thermal overload relay. You MUST install a separate overload relay appropriately rated for your specific motor to prevent damage from overcurrent conditions. Refer to the 'Recommended Thermal Relay' specification for compatible Swan Electric series (LR2 D13xx).
Correct Sizing: Ensure the starter's kW rating matches or exceeds your motor's rating at the operating voltage (400V AC3 specified).
Wiring: Use appropriately sized conductors based on the motor's full load current (FLC) and local electrical codes. Ensure all connections are tight and secure.
Mounting: Mount the starter vertically on a flat, stable surface using the designated mounting holes.
Environment: Install in a location suitable for the enclosure's protection level, away from excessive moisture, heat, or corrosive elements.
