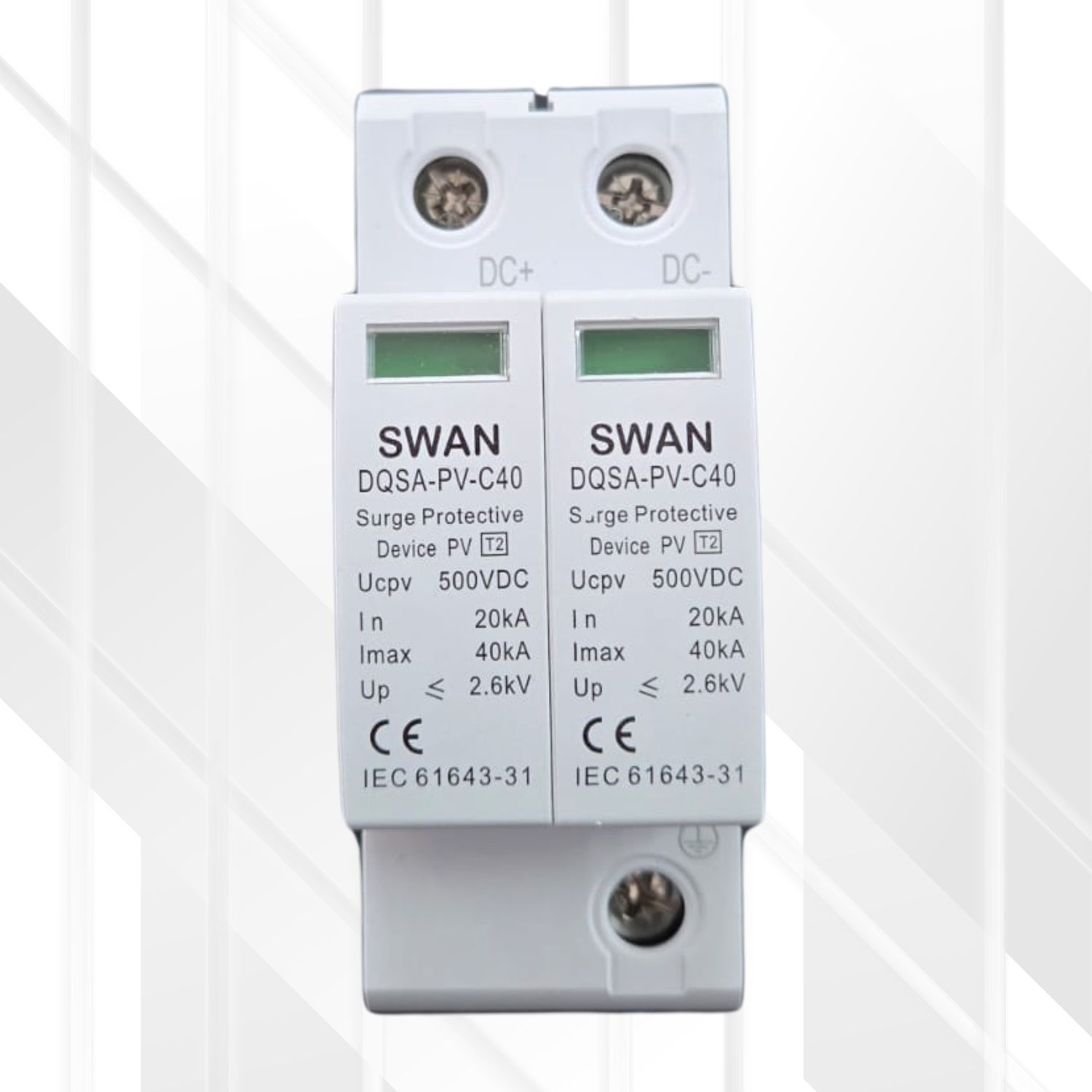

DC Surge Protection 40kA 2P 500VDC With Indicator AUX

• DQSA-PV-COM-C40 series of DC Surge Protective Device (SPD) for use in Photovoltaic applications. Surge protective devices provide protection from lightning current and over-voltage surges insystem from 48VDC to 1000Vdc.
• Providing power with photovoltaic solar panels is interesting in the context of renewableenergysources, as regards economical photovoltaic systems connected to the public electricity network. Because of their exposition, frequently in isolated sites and of the extended surface of photovoltaicsystems (PV), lightning strikes are a major components in the risk to be assumed, both for thedirecteffect of lightning on the structures, and of the surge over-voltages on the installation.
• Cells are generally associated with inverters. We have developed a specific Din Rail product to protect DC end of cells and inverters against surge in power plant or residential application.
• With the MOV(Metal Oxside Varistor), the over-voltage will be limited at the value of thevoltageprotection level of the DQSA-PV-COM-C40 surge protector.
• Our surge protector, as recommendedinstandards and guides, insure all protections (between +and-, + and Ground,-and Ground).
• On each surge arrest-er, as option, an available auxiliary contact will inform the end life status to ensure a maximum efficiency.

Technical Specifications

Main Technical Data

• Network Configuration: Photovoltaic (PV)
• Poles: 2P
• Maximum Continuous Voltage (Uc): 48 / 65 / 85 / 275 / 500 / 600 / 800 / 1000Vdc
• Type of SPD: Type 2, Class II
• Nominal Discharge Current (8/20µs) (In): 20kA
• Maximum Discharge Current (8/20µs) (Imax): 40kA
• Voltage Protection Level (Up): ≤ 0.3 / 0.5 / 0.6 / 0.8 / 1.8 / 2.5 / 3.0 / 3.2 / 4.2kV (depending on Uc)
• Response Time (tA): <25ns
• Thermal Protection: YES
• Operating State/Fault Indication: Green (good) / Red (replace)
• Degree of Protection: IP20
• Insulating Material / Flammability Class: PA66, UL94 V-0
• Protective Elements: High energy MOV
• Temperature Range: -40°C ~ +80°C
• Altitude: 12123ft (4000m)

Additional Technical Data

• Remote Contacts (RC): Optional
• Format: Pluggable
• For Mounting On: Din rail 35mm
• Standard: IEC61643-31

Features:

• 2 Pole Configuration: Provides surge protection for two DC conductors simultaneously.
• Maximum Discharge Current (Imax): 40kA: High surge handling capacity to effectively divert large transient currents.
• Continuous Operating Voltage (Uc): 500VDC: Suitable for DC systems with a nominal voltage up to 500V.
• Visual Indicator: Clear indication of the SPD's status (e.g., green for operational, red for replacement needed).
• Direct Current (DC) Specific: Designed and tested for the unique characteristics of DC systems.
• DIN-Rail Mounting: Easy and secure installation on standard DIN rails within electrical enclosures.
• Robust Design: Built to withstand the harsh environmental conditions often encountered in DC installations.

Benefits:

• Protects Sensitive Equipment: Prevents damage to valuable DC-powered devices, such as solar inverters, charge controllers, and other electronic equipment, from surge events.
• Improves System Reliability: Minimizes downtime and maintenance costs associated with surge-related equipment failures.
• Enhanced Safety: Reduces the risk of electrical fires and hazards caused by transient overvoltages.
• Visual Status Monitoring: The indicator allows for quick and easy assessment of the SPD's health, ensuring timely replacement if necessary.
• Specifically Designed for DC PV Systems: Provides optimal surge protection tailored to the requirements of solar installations.
• Easy Integration: The DIN-rail mounting simplifies installation within existing electrical panels.

Ideal Use:

The Swan Electric DC Surge Protection 40kA 2P 500VDC with Indicator is ideally used for safeguarding DC circuits in:

• Solar Photovoltaic (PV) Systems: Protecting inverters, charge controllers, and PV arrays from lightning-induced surges and other transient overvoltages.
• DC Power Distribution Systems: Protecting sensitive DC loads in industrial and commercial applications.
• Battery Energy Storage Systems: Protecting components connected to DC battery banks.
• DC Lighting Systems: Ensuring the longevity of DC-powered lighting installations.
• Telecommunication Equipment: Protecting DC power supplies and sensitive electronics.
• Any DC application up to 500V requiring robust surge protection.

Proper installation according to relevant electrical standards and the manufacturer's instructions is crucial for the effective operation of this surge protective device. Ensure the grounding system is adequate to safely divert surge currents. Regular visual inspection of the indicator is recommended to ensure the SPD is functioning correctly.
