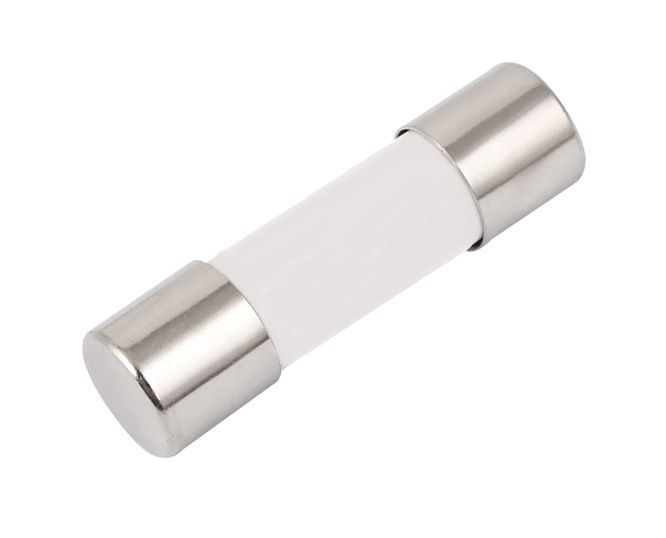

DC Fuse Link 25A 10x38mm 1KVDC

• The Swan Electric F-AD-10PV solar photovoltaic (PV) fuse is a reliable overcurrent protection device designed specifically for solar power generation systems.
• With rated voltages up to 1500V and current ratings up to 32A (model dependent), this 10x38mm cylindrical fuse safeguards your solar panels, inverters, and batteries from short circuits and overcurrents, ensuring the safety and longevity of your investment.
• Compliant with IEC 60269-6 standards and featuring a gPV class of operation for optimized PV system protection, this fuse offers quick break protection essential for preventing damage in solar installations.

Features

• Specifically for Solar PV Systems: Designed and rated for the unique demands of photovoltaic applications.
• Rated Voltage up to 1500VDC: Suitable for high-voltage DC circuits commonly found in solar installations.
• Rated Current up to 32A (Model Dependent): Available in various current ratings (refer to the specific model selected).
• 10x38mm Fuse Size: Standard cylindrical fuse size for easy replacement in compatible holders.
• gPV Class of Operation: Provides both overload and short-circuit protection specifically tailored for PV systems.
• Interrupting Capacity: 20kA: High breaking capacity to safely interrupt large fault currents.
• Time Constant: 1-3ms: Designed for quick break protection, essential for preventing damage in PV systems.

Benefits

• Optimized for Solar PV: Specifically designed and rated for the unique voltage and current characteristics of PV systems.
• High Voltage Compatibility: Suitable for the high DC voltages encountered in solar installations (up to 1500V).
• Reliable Overcurrent Protection: Safeguards valuable solar equipment from damage due to overloads and short circuits.
• Enhanced Safety: Reduces the risk of electrical fires and hazards in your solar power system.
• Easy Replacement: Standard 10x38mm size ensures compatibility with readily available fuse holders.
• Compliance with Standards: Meets IEC 60269-6, ensuring quality and safety.
• Quick Break Protection: The fuse's fast response time is crucial for protecting sensitive PV components.

Technical Specifications (Dependent on Fuse Model)

• Product Type: Solar PV Fuse
• Classification: F-AD-10PV (Model Dependent on Current Rating)
• Fuse Size: 10x38mm
• Rated Current: Up to 32A (Specify when ordering)
• Rated Voltage: Up to 1500VDC
• Class of Operation: gPV
• Standard: IEC 60269-6
• Interrupting Capacity: 20kA
• Time Constant: 1-3ms

Ideal Use

This Swan Electric F-AD-10PV 10x38mm Solar PV Fuse is ideally used for overcurrent protection in various parts of a solar photovoltaic power generation system, including:

• Photovoltaic Module Strings: Protecting individual strings of solar panels.
• Photovoltaic Arrays: Providing overcurrent protection for the combined array of solar panels.
• Between Solar Panels and Charge Controllers: Safeguarding the charge controller from faults in the panel array.
• Between Solar Panels and Inverters: Protecting the inverter from DC side faults.
• Battery Connections in Series and Parallel: Providing overcurrent protection for battery banks in PV systems.
• Photovoltaic Stations and Inverter Rectifier Systems: Offering short-circuit breaking protection in larger PV installations.

Note: Please specify the desired current rating of the F-AD-10PV fuse when ordering to match the specific protection requirements of your solar PV system. Ensure the fuse is installed in a compatible 10x38mm fuse holder and according to relevant electrical codes and the manufacturer's instructions. Fuse holders are sold separately.
