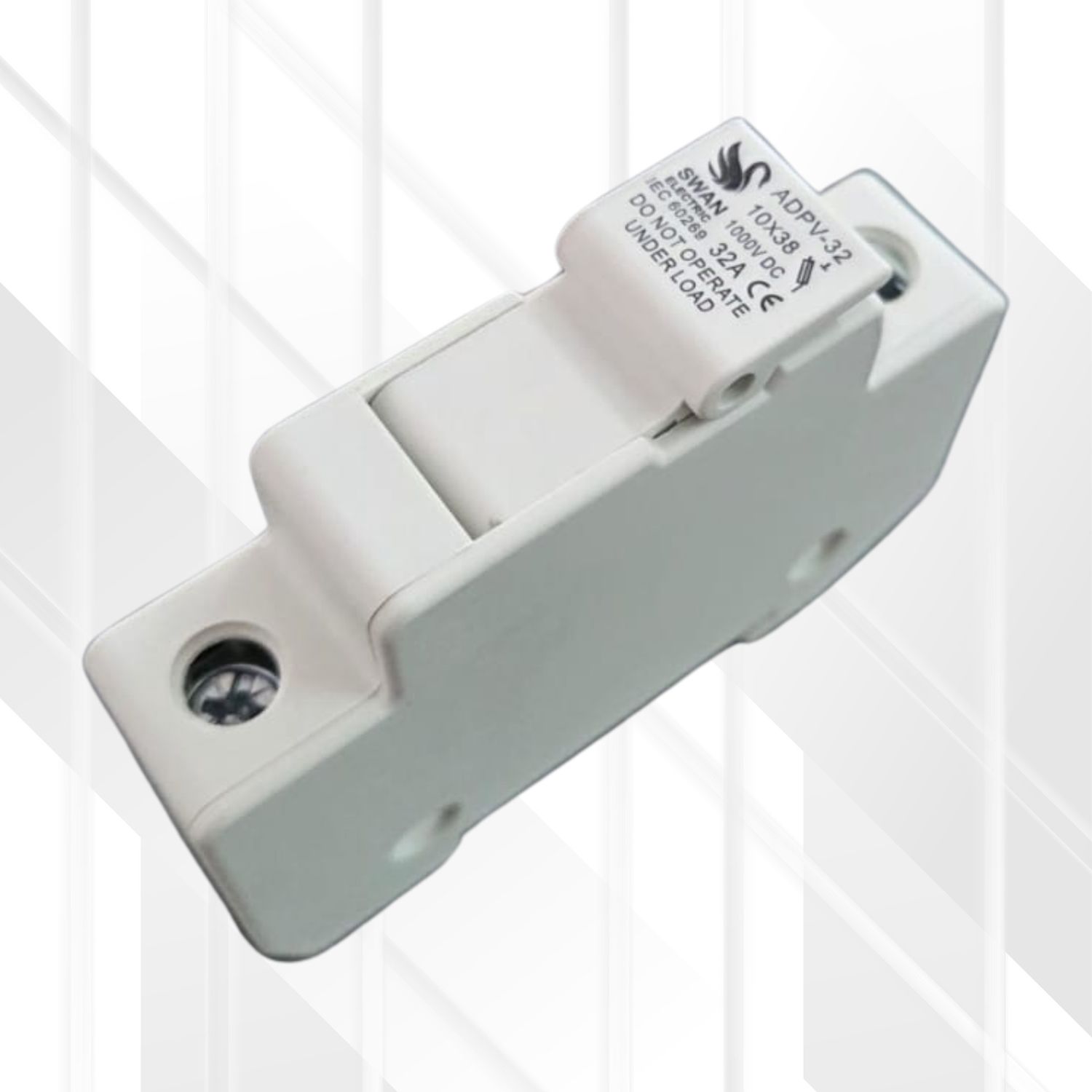

DC Fuse Holder 10X38mm 1000V 1P 32A

• The Swan Electric FH-ADPV-32-1000VDC is a compact and reliable single-pole (1P) fuse holder designed to accommodate 10x38mm fuses in direct current (DC) applications up to 1000V.
• This DIN-rail mountable miniature fuse holder provides a secure and convenient way to protect DC circuits in various applications, particularly solar photovoltaic (PV) systems.
• Manufactured by Swan Electric, this fuse holder ensures safe and easy fuse replacement when overcurrent protection is needed.

Features

• Single Pole (1P) Configuration: Holds one 10x38mm fuse for single-line DC circuit protection.
• 10x38mm Fuse Compatibility: Specifically designed for standard 10mm diameter and 38mm length cylindrical fuses.
• 1000V DC Voltage Rating: Suitable for DC systems with a voltage up to 1000 Volts.
• Miniature Design: Compact size for efficient use of space in electrical enclosures.
• DIN-Rail Mounting: Easy and secure installation on standard DIN rails.
• Robust Construction: Durable materials ensure reliable performance in various environments.
• Safe Fuse Replacement: Designed for easy and safe insertion and removal of fuses.

Benefits

• Reliable DC Overcurrent Protection: Provides a secure mounting for fuses, ensuring effective protection against overloads and short circuits in DC systems.
• Enhanced Safety: Facilitates safe and easy replacement of blown fuses, minimizing downtime and potential hazards.
• Specifically Designed for DC: Engineered to handle the demands of direct current applications up to 1000V.
• Compact Footprint: Saves valuable space within electrical panels and enclosures.
• Easy Installation: The DIN-rail mounting allows for quick and straightforward integration into existing systems.
• Versatile Application: Suitable for a wide range of DC protection needs.

Technical Specifications

• Description: FUSE HOLDER 1P DC 10X38 1000V
• Manufacturer: SWAN ELECTRIC
• Voltage Rating (DC): 1000V
• Fuse Size Compatibility: 10x38mm cylindrical fuses (fuses not included)
• Number of Poles: 1
• Mounting Type: DIN-Rail
• Type: Miniature Fuse Holder

Ideal Use

The Swan Electric Fuse Holder 1P DC 10x38 1000V is ideally used for providing overcurrent protection in:

• Solar Photovoltaic (PV) Systems: Protecting DC circuits within solar arrays, combiner boxes, and inverter inputs.
• DC Combiner Boxes: Providing a safe and organized way to fuse multiple PV string inputs.
• Battery Energy Storage Systems: Protecting DC circuits in battery banks and charge/discharge paths.
• DC Disconnect Switches: Providing a secure location for fuses in DC disconnect enclosures.
• Industrial DC Control Circuits: Offering reliable fuse protection for various DC powered equipment.
• Telecommunications Equipment: Protecting sensitive DC electronics.
• Other High-Voltage DC Applications: Any system requiring single-pole fuse protection up to 1000V DC with 10x38mm fuses.

Note: Fuses compatible with this holder (10x38mm DC rated fuses with appropriate current ratings) are sold separately. Ensure that the fuse selected has a voltage rating equal to or greater than the maximum circuit voltage and a current rating suitable for the application.
